Q
uick
S
tart
G
uide

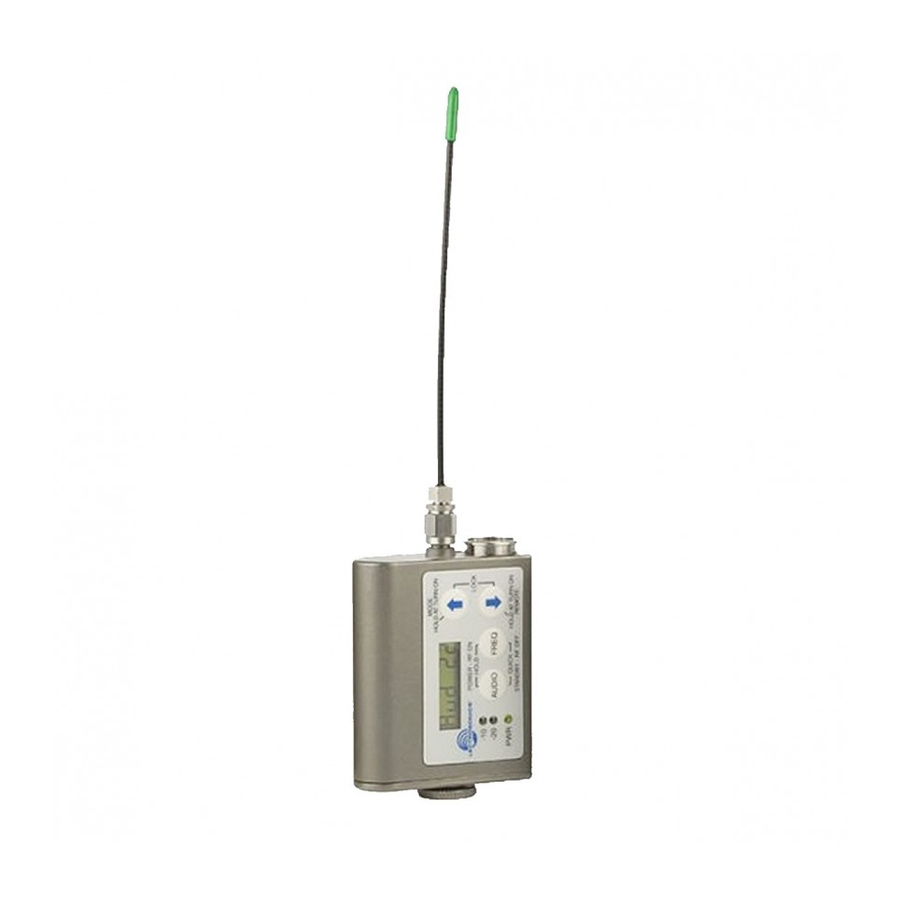

SMB Series
SMDB/E01, SMDB/E02
Dual battery Transmitter
SMB/E01, SMB/E02
Single battery Transmitter
Fill in for your records:
Serial Number:
Purchase Date:
Digital Hybrid Wireless
U.S. Patent 7,225,135
This guide is intended to assist with
initial setup and operation of your
Lectrosonics product.
For a detailed user manual, down-
load the most current
version at:
www.lectrosonics.com/europe
®
16 August 2019
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Lectrosonics SMB Series
Summary of Contents for Lectrosonics SMB Series
- Page 1 SMB Series SMDB/E01, SMDB/E02 Dual battery Transmitter SMB/E01, SMB/E02 Single battery Transmitter Digital Hybrid Wireless ® U.S. Patent 7,225,135 Fill in for your records: This guide is intended to assist with initial setup and operation of your Serial Number: Lectrosonics product.
- Page 2 SMB Series Transmitters SMB Series transmitters are ideal for motion picture and television production, live theater and other productions where costuming is prevalent and the wireless must be concealed. Despite their tiny size, the transmitters are feature rich and well suited to demanding production...
-
Page 3: Controls And Functions
Used to set the operating frequency and toggle the LCD between the operating frequency in MHz and a two-digit hexadecimal frequency code. Up/Down Arrows Used to adjust the selected function or parameter. Battery Compartment, Cover Plate and Opener Used to install or remove battery/batteries. www.lectrosonics.com... -
Page 4: Power Off
Down arrow button to set the Compatibility Mode to match the corre- sponding receiver. Hbr - This is the factory default setting and works with all Lectrosonics E01 Series Digital Hybrid Wireless® receivers, including the Venue. IFb - This mode works with all Lectrosonics IFB compatible receivers. -
Page 5: Setting Transmitter Operating Frequency
Setting Transmitter Operating Frequency The Operating Frequency of the SMB Series transmitter is displayed either in MHz or as a two-digit hexadecimal number. Pressing the FREQ button toggles between the two display modes. Frequency displayed The frequency can be set with the unit in Standby in MHz Mode or while powered up for normal operation. -
Page 6: Adjusting The Low Frequency Roll-Off
With SMB Series transmitter powered off, insert the microphone plug into the Audio Input Jack, aligning the pins and ensuring that the connector locks. -
Page 7: Locking Or Unlocking The Control Panel
Insert the new battery (or batteries) into the housing, positive (+) terminal first. Important: On dual-battery transmitters, BOTH batteries go positive (+) terminal first. Replace the Battery Cover Plate and tighten the Opener. Do Not Cover Gore- Tex® Vent www.lectrosonics.com... - Page 8 Power Off the transmitter by pressing the Audio and Freq buttons simulta- neously. The RC setting will persist when you Power Up the transmitter again. Note: SMB Series transmitters with firmware version 1.6 and later are factory set to “rc ON” by default. Configuring for Power Restore...
- Page 9 Silver paste is applied to thumbscrew threads on new units at the factory to improve the electrical connection from the battery compart- ment through the housing on any SMB Series transmitter. This applies to the standard battery door and the battery eliminator.
- Page 10 LECTROSONICS, INC.
- Page 11 BE, BG, CZ, DK, DE, EE, EL, ES, FR, HR, IT, CY, LV, LT, LU, HU, MT, NL, AT, PL, PT, RO, SI, SK, FI, SE, UK The use of Lectrosonics wireless microphone and IFB equipment in all or most EU member states requires a license and/or is subject to certain restrictions with regard to frequencies and geographic locations.
