4. FUNCTION SETTINGS

4.1 TRANSMITTER HANDSET

4.1.1 System Channel Settings

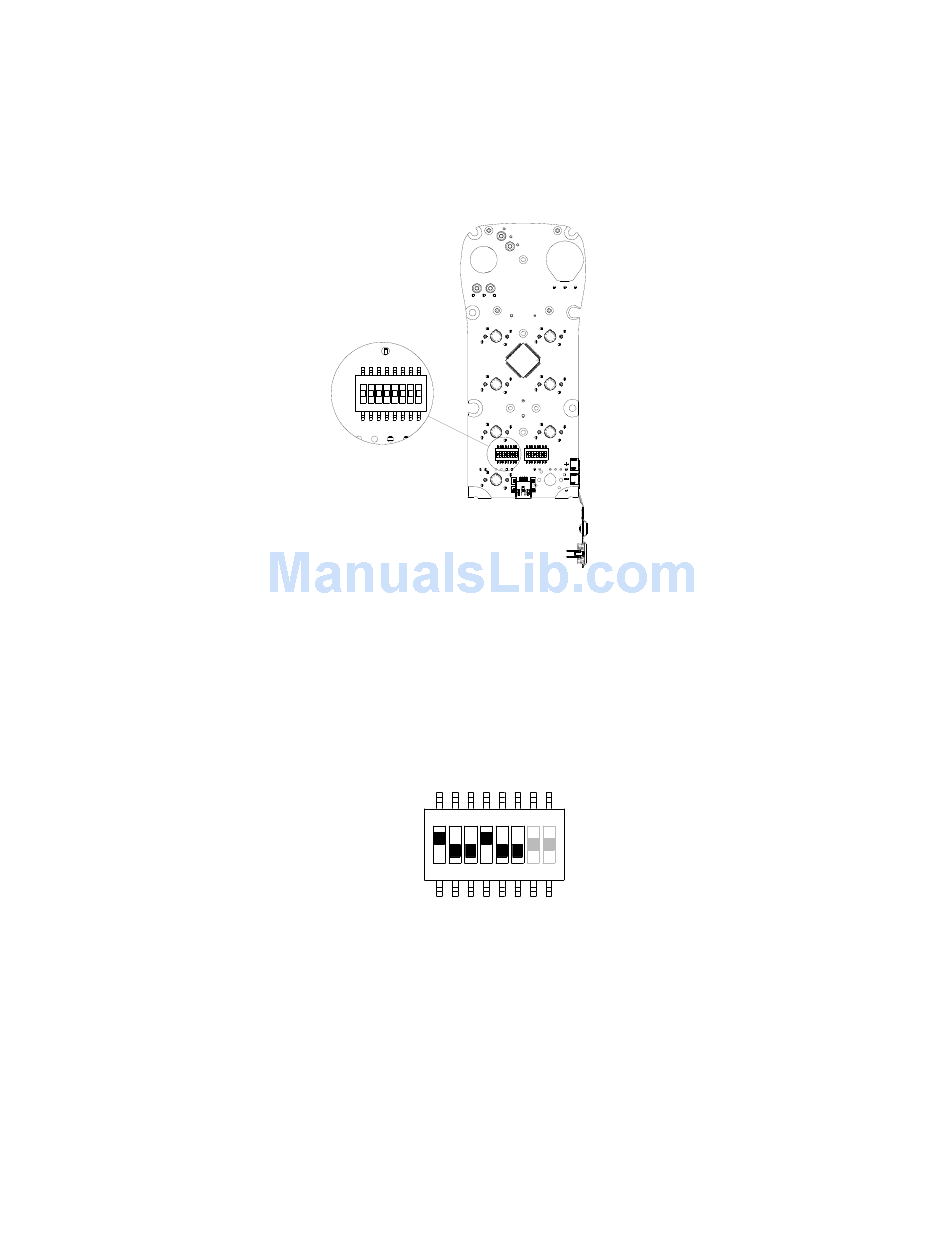

Set the transmitter channel by adjusting the channel dip-switch located on the backside of the
transmitter encoder board (refer to Fig. 07 above). Only the first six (6) positions are used for
channel programming (refer to Fig. 08 below). The system channels table located on page 38
illustrates which dip-switch setting corresponds to which channel. Once the transmitter channel
is altered make sure to change the receiver channel as well. The channel on both the transmitter
and receiver must be identical in order for the system to work. To change the receiver channel
please refer to page 29.
Example:
The above dip-switch setting "1 0 0 1 0 0" corresponds to "channel 36" in the system channels
table on page 38.
CHANNEL
1 2 3 4 5 6 7 8
(Fig. 07)
(Fig. 08)
1 2 3 4 5 6
Top slot → "1"
Bottom slot → "0"
7 8
Flex 12EX System Instruction Manual
December 2013
Page 17 of 48
