4.1.2.3 Inline Push Button Configuration (Transmitter Toggle)

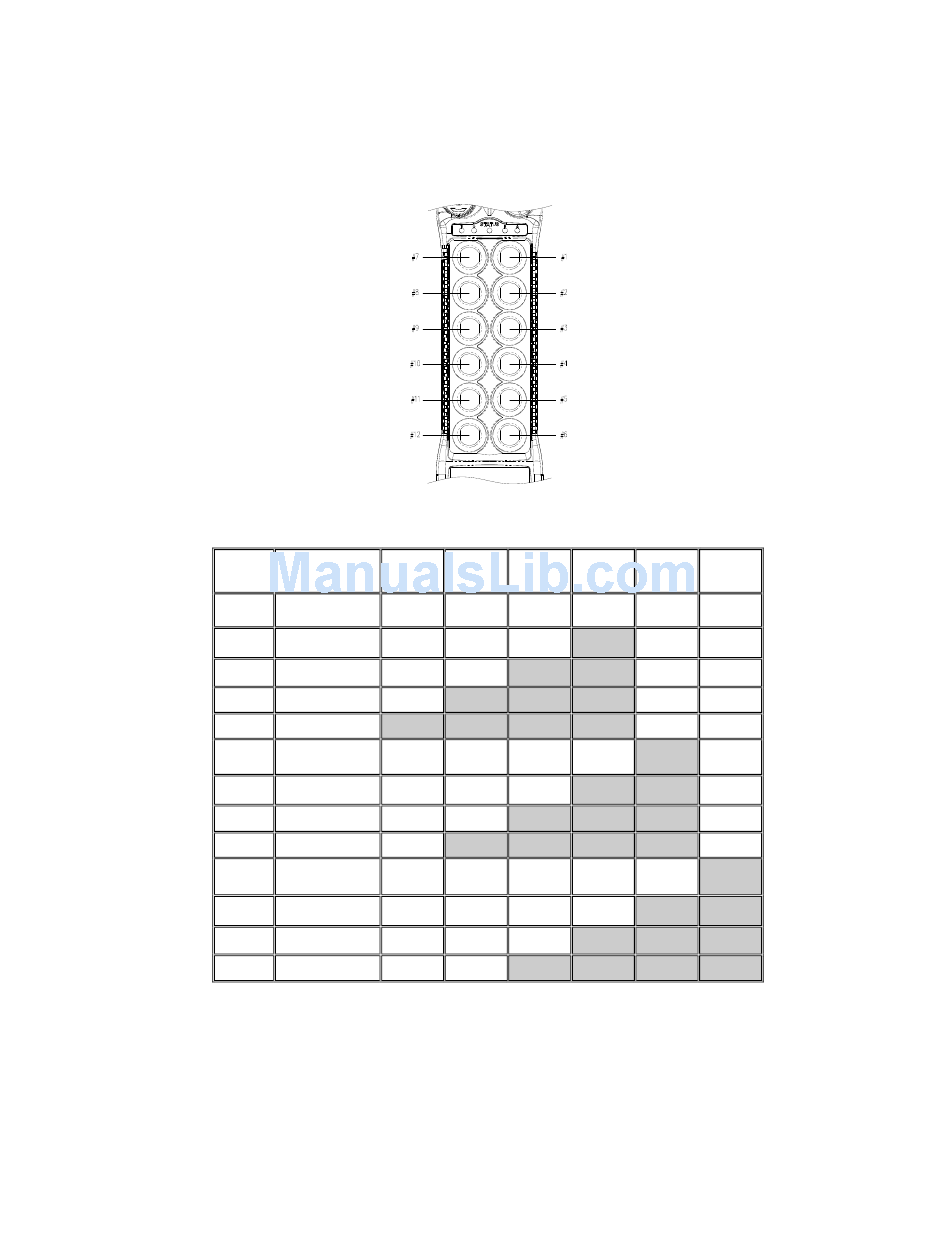

The push button arrangement for inline push button setup starts from top to bottom and
then from right column to left column (refer to Fig. 10 below). To set inline push button
configuration please refer to JP4 and JP5 jumpers setting on page 36. With inline push
buttons configuration, PB1 & PB2 still corresponds to output relay K1 - K4; PB3 & PB4
corresponds to relay K5 - K8; etc...
DIP
64
00000000
65
00000101
66
00010100
67
00010101
68
00010110
69
00001001
70
00010111
71
00011000
72
00011001
73
00001101
74
00011010
75
00011011
76
00011100
* PB7...PB12 → Push button number
* Normal → Normal momentary contact
* LED 1...LED 4 → Transmitter toggled with designated LED Display
(Fig. 10)
PB7 PB8 PB9 PB10 PB11 PB12
Normal Normal Normal Normal Normal Normal
Normal Normal Normal LED 4 Normal Normal
Normal Normal LED 3 LED 4 Normal Normal
Normal LED 2 LED 3 LED 4 Normal Normal
LED 1 LED 2 LED 3 LED 4 Normal Normal
Normal Normal Normal Normal LED 4 Normal
Normal Normal Normal LED 3 LED 4 Normal
Normal Normal LED 2 LED 3 LED 4 Normal
Normal LED 1 LED 2 LED 3 LED 4 Normal
Normal Normal Normal Normal Normal LED 4
Normal Normal Normal Normal LED 3 LED 4
Normal Normal Normal LED 2 LED 3 LED 4
Normal Normal LED 1 LED 2 LED 3 LED 4
