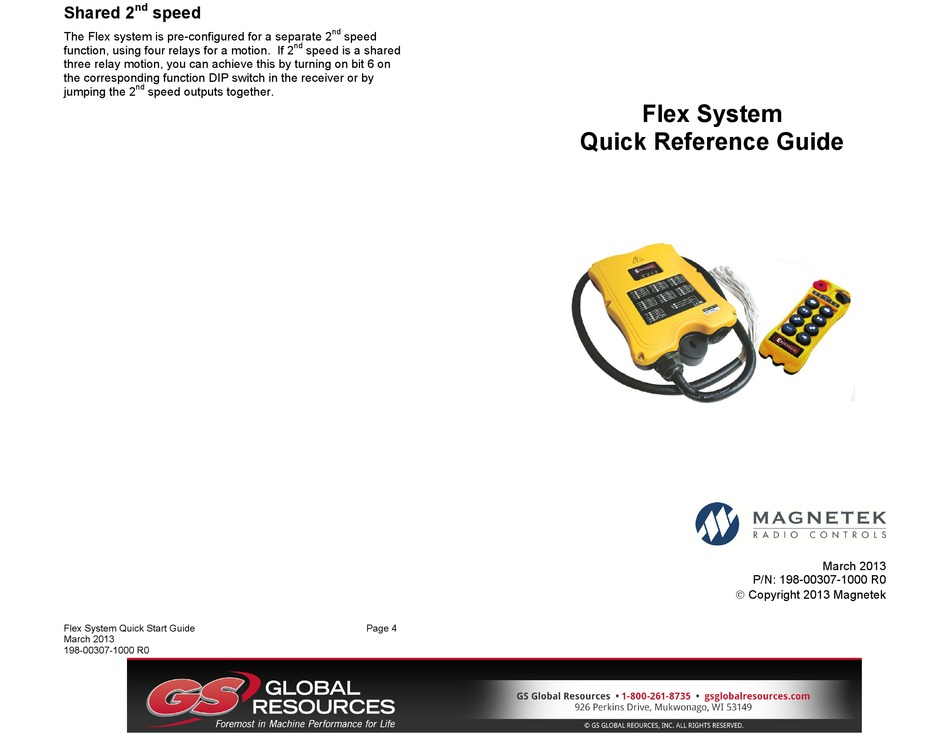

nd
Shared 2
speed
nd

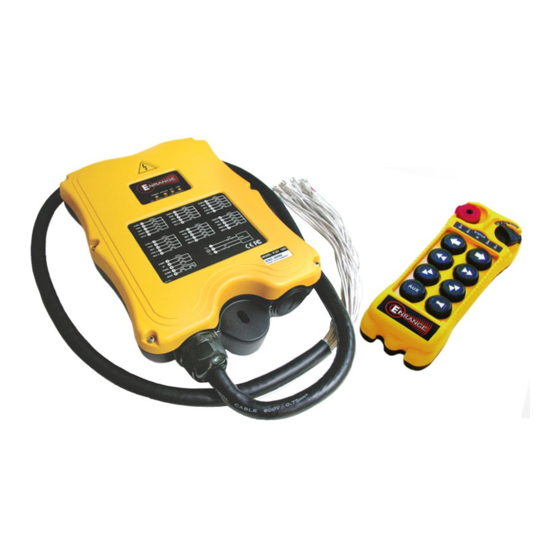

The Flex system is pre-configured for a separate 2
speed
nd
function, using four relays for a motion. If 2
speed is a shared
three relay motion, you can achieve this by turning on bit 6 on
the corresponding function DIP switch in the receiver or by
nd
jumping the 2
speed outputs together.
Flex System
Quick Reference Guide
March 2013
P/N: 198-00307-1000 R0
Copyright 2013 Magnetek
Flex System Quick Start Guide
Page 4
March 2013
198-00307-1000 R0
Advertisement
Related Manuals for Magnetek Flex System
Summary of Contents for Magnetek Flex System
- Page 1 Shared 2 speed The Flex system is pre-configured for a separate 2 speed function, using four relays for a motion. If 2 speed is a shared three relay motion, you can achieve this by turning on bit 6 on the corresponding function DIP switch in the receiver or by jumping the 2 speed outputs together.
-
Page 2: Mounting The Receiver
The only time one is needed is when the receiver will be mounted in a secondary enclosure. This guide will assist in setting up the Flex system. It addresses common issues that are encountered when first setting up the system.
