4.2 RECEIVER UNIT

4.2.1 System Channel Settings

Even though the Flex system is equipped with an automatic channel scanning receiver, the user
can also set the receiver channel manually. Please refer to page 33 on how the automatic
channel scanning receiver works.

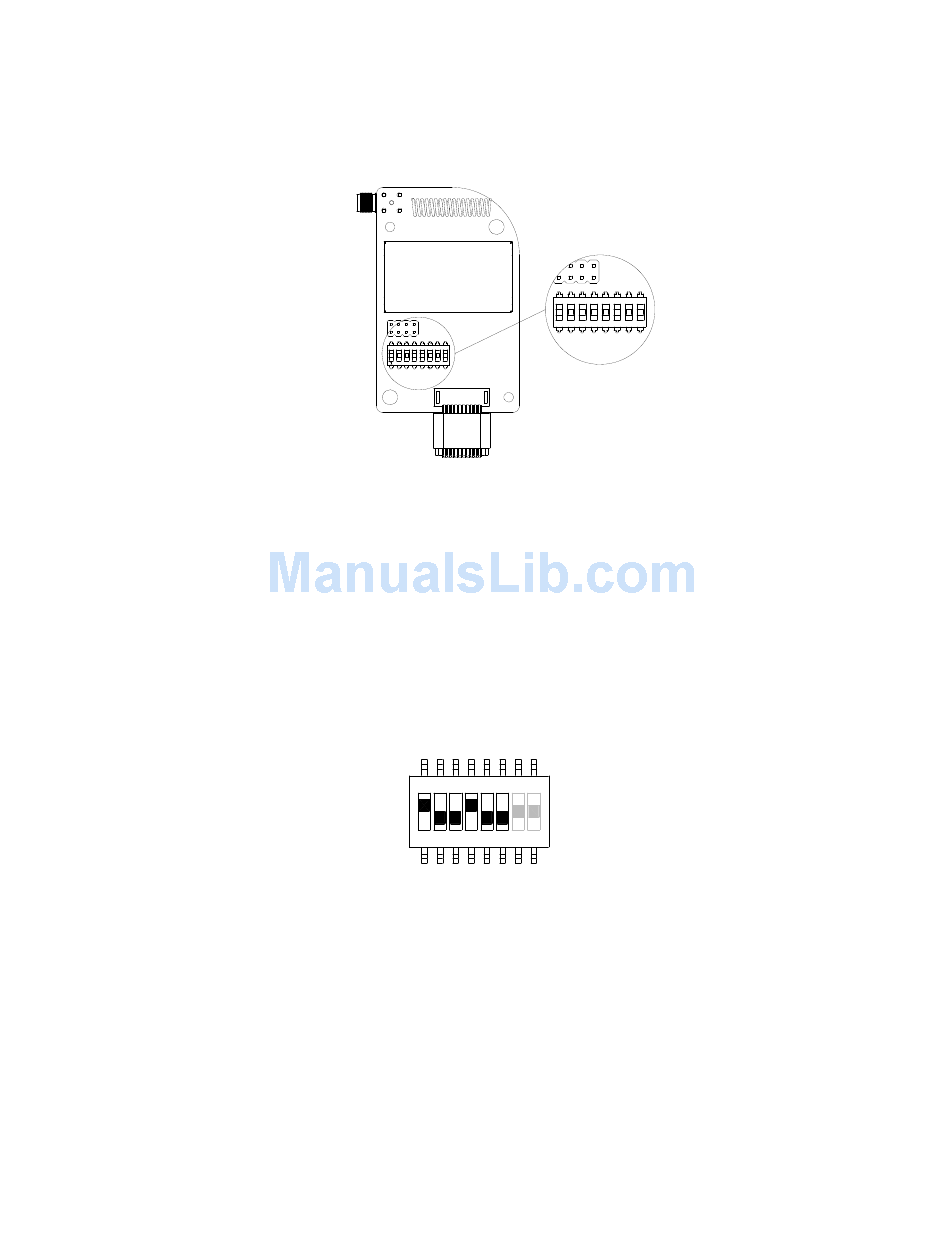

Set the receiver channel by adjusting the channel dip-switch located on the receiver module
(refer to Fig. 12 above), only the first six (6) positions are used for channel programming (refer to
Fig. 13 below). The system channels table located on page 38 illustrates which dip-switch setting
corresponds to which channel. Once the receiver channel is altered make sure to change the
transmitter channel as well. The channel on both the transmitter and receiver must be identical in
order for the system to work. To change the transmitter channel please refer to page 17.
Example:
The above dip-switch setting "1 0 0 1 0 0" corresponds to "channel 36" in the system channels
table on page 38.
EXT INT
(Fig. 12)
(Fig. 13)
1 2 3 4 5 6
1 2 3 4 5 6 7 8
Top slot → "1"
Bottom slot → "0"
7 8
