A/B Selector Push Button Operating Procedure; Rd Speed Push Button Operating Procedure - Magnetek Flex 12EX System Instruction Manual

e. Now press any push button on the transmitter handset to operate the crane or equipment.
During transmitter inactivity (push buttons not pressed), the transmitter will automatically
switch to standby mode, with an orange blink on the Status LED every 4-second interval.
f. In case of an emergency, pressing down on the red emergency stop button will
immediately disconnect the receiver mainline (Status LED blinks red). To reset the
emergency stop button just rotate the red button either clockwise or counter-clockwise; it
will pop up. When the green light appears, rotate the power key to "Start" position to
resume operation (depends on JP3 setting on page 36).
g. After 5 minutes of inactivity (push button not pressed) the receiver MAIN will be
disconnected temporarily (depends on JP1 & JP2 settings on page 36). To resume
operation just rotate the power key switch to START position to reconnect the receiver
MAIN.
h. Turn off the transmitter power by rotating the power key counter-clockwise to "Off" position; it
will disconnect the transmitter power and the receiver MAIN altogether. Turn it further
counter-clockwise to release the key.

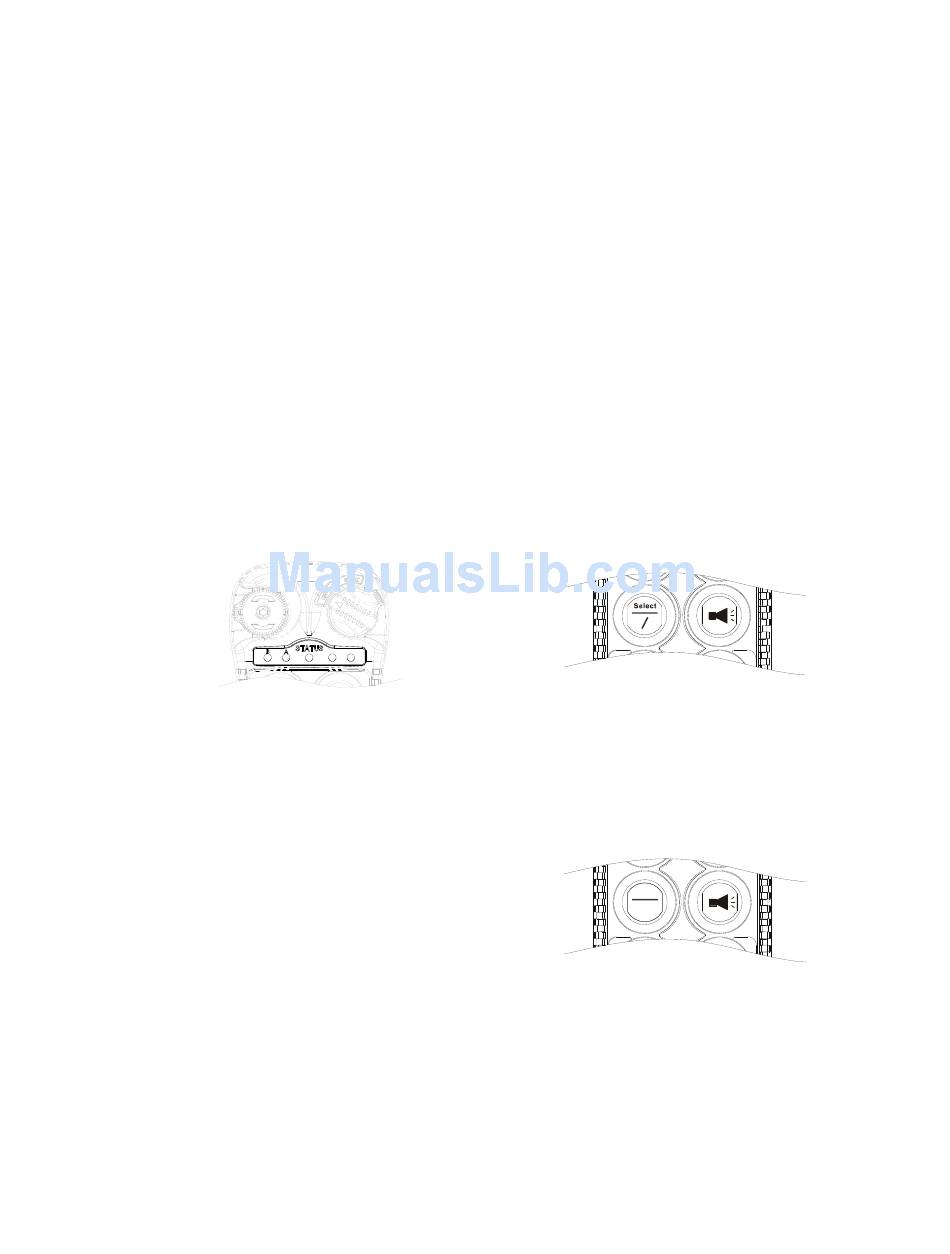

7.1.2 A/B Selector Push Button Operating Procedure

Pressing the "Select A/B" push button will toggle between output relay A, B, A+B respectively.
There are 4 different types of Select A/B sequences available; please refer to page 19 for
instructions on how to set Select A/B functions.
rd
7.1.3 3 Speed Push Button Operating Procedure
When a push button is held at 2
rd
activate the 3 speed output relay (toggled). If the operator wants 2
rd
the 3 Speed push button one more time.
nd rd
speed, pressing the 3
A
B
Speed push button one time will
nd
speed again, just press
3rd
SPEED
