Magnetek Flex Duo Operator's Manual
Radio control equipment
Hide thumbs
Also See for Flex Duo:
- Instruction manual (121 pages) ,
- Quick reference manual (2 pages) ,
- Quick reference manual (2 pages)
Related Manuals for Magnetek Flex Duo
Summary of Contents for Magnetek Flex Duo

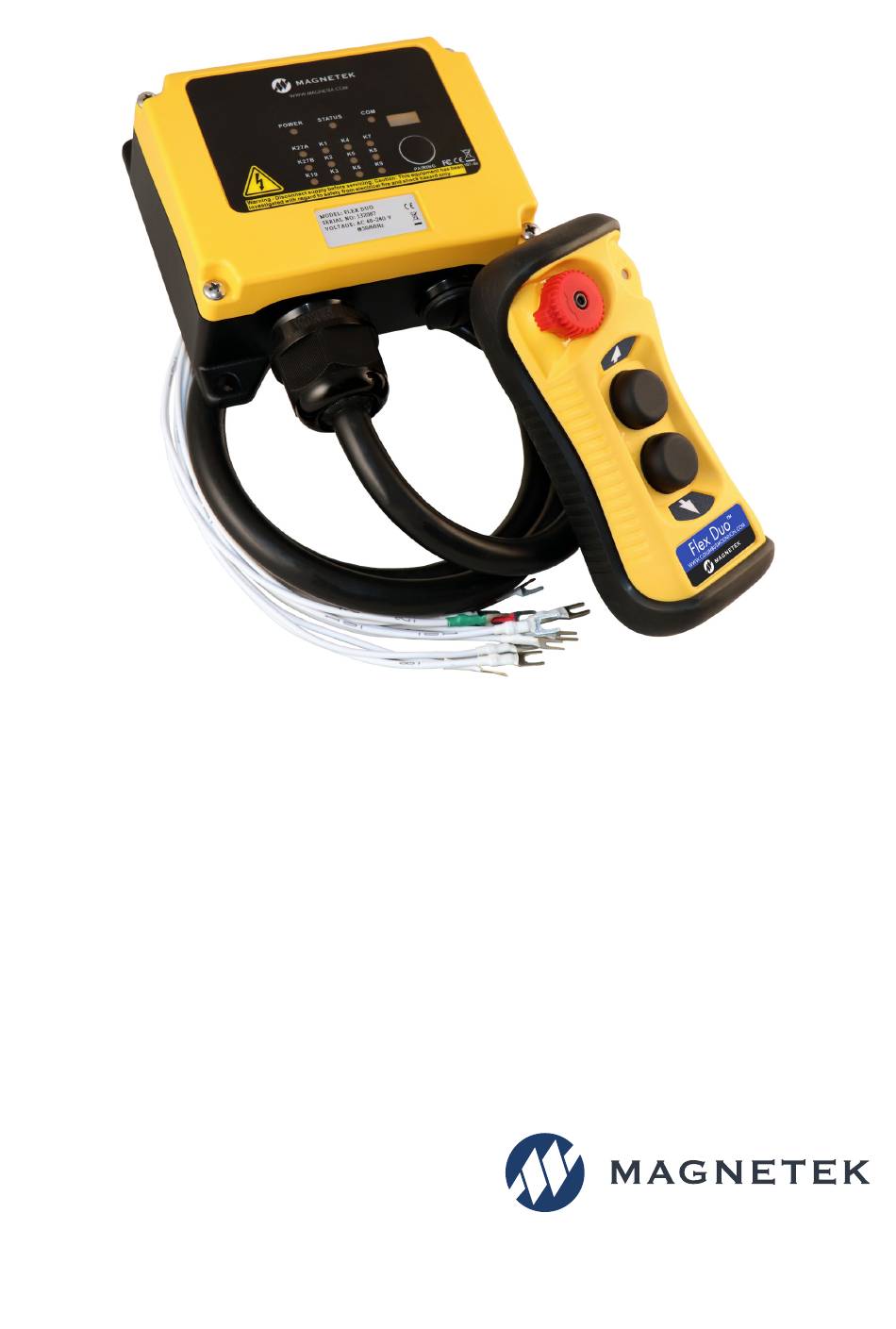

- Page 1 Flex Duo™ System Radio Control Equipment Operator Manual Part Number: 191-32000-M002EN August 2021 © Copyright 2021 Magnetek...
- Page 2 Flex Duo Operator Manual August 2021 Page 2...
-
Page 3: Service Information
This manual may not be reproduced in whole or in part by any means whatsoever without the expressed written permission of the Columbus McKinnon Corporation. Flex Duo Operator Manual August 2021 Page 3... -
Page 4: Product Safety Information
It is the responsibility of the owners, users and operators of the Magnetek Products to know, understand and follow all of these requirements. It is the responsibility of the owner of the Magnetek Products to make its employees aware of all of the above listed requirements and to make certain that all operators are properly trained. - Page 5 Wireless Remote Pairing Function – system pairing and cloning can be done easily and wirelessly. • Over One Million Unique Address Codes – each and every Flex Duo system has its own address code and serial number, never repeats. •...
-
Page 6: Radio-Controlled Safety
The following information is intended to be used in conjunction with other rules or regulations already in existence. It is important to read all of the safety information contained in this section before installing or operating the Radio Control System. Flex Duo Operator Manual August 2021 Page 6... -
Page 7: Critical Installation Considerations
Radio-controlled equipment should not be operated by any person with insufficient eyesight or hearing or by any person who may be suffering from a disorder or illness, is taking any medication that may cause loss of equipment control, or is under the influence of alcohol or drugs. Flex Duo Operator Manual August 2021 Page 7... -
Page 8: Safety Information And Recommended Training For Radio-Controlled Equipment Operators
• remove or obscure any warning or safety labels or tags • leave any load unattended while lifted • leave power on the radio-controlled equipment when the equipment is not in operation Flex Duo Operator Manual August 2021 Page 8... -
Page 9: Transmitter Unit
Know and follow proper battery handling, charging and disposal procedures. Improper battery procedures can cause batteries to explode or do other serious damage. Failure to follow this warning could result in serious injury or death and damage to equipment. Flex Duo Operator Manual August 2021 Page 9... -
Page 10: Changing Batteries
Do not attempt to charge a damaged battery. Do not attempt to use a battery that is leaking, swollen or corroded. Do not short the charger. The Flex Duo charger does not come standard with Flex Duo systems or spare transmitters. Flex Duo Operator Manual August 2021... -
Page 11: Power Supply
3. Charging Status LED 2. Charging Contacts 4. Power USB Input 2.9.2 Power Supply The Flex Duo charging cradle uses any off-the-shelf Micro USB-to-USB cable and USB power adapter with 5V at 2A output (optional). Figure 2-3 Flex Duo Operator Manual... - Page 12 2.9.3 Charging 1. The Flex Duo transmitters are designed to accept any off-the-shelf Ni-MH rechargeable batteries. 2. Depending on the battery capacity, the average charging time is approximately 1.5 hours from completely drained to fully charged. 3. Solid red on the LED represents charging in progress, solid green represents batteries fully charged, and LED off represents no batteries detected.
-
Page 13: Wall Mounting The Charger
2.9.5 Wall Mounting the Charger The Flex Duo charging cradle has two holes located in the back, vertical face of the unit. These holes allow the cradle to be mounted on a wall by sliding the cradle over the two screws and then sliding down to secure the cradle onto the screw heads. -
Page 14: General System Information
6. Turn off the transmitter power by pressing down the STOP button. It will disconnect the transmitter power and the receiver MAIN relays altogether (Status LED blinks 3 reds and then shuts off). Figure 3-1 Flex Duo Operator Manual August 2021 Page 14... -
Page 15: External Illustration
1. STOP Button 5. Ring Hook Attachment Slot 2. Pushbutton 1 (PB1) 6. Battery Cover Screw 3. Pushbutton 2 (PB2) 7. System Information 4. Status LED Indicator 8. Lanyard and Waist Belt Attachment Slot Flex Duo Operator Manual August 2021 Page 15... - Page 16 2. COM LED Indicator 8. System Information 3. Status LED Indicator 9. Cord Grip 4. Power LED Indicator 10. Mounting Bracket (Optional) 5. Output Relay LED Indicators 11. Mounting Bracket Release 6. Infrared Sensors Flex Duo Operator Manual August 2021 Page 16...
-
Page 17: Output Relay Contact Diagrams
Dual-speed model Figure 3-4 • The default operation of the Flex Duo system will have the two pushbuttons configured as a pair to perform as an interlocked motion control with the corresponding output relays set up for momentary contact closure. •... -
Page 18: System Status Light Indications
2-second pause 3 orange blinks followed by Decoding processors defective a 2-second pause Solid orange when the START button is pressed and Receiver MAIN relays activated held at initial system start-up Flex Duo Operator Manual August 2021 Page 18... -
Page 19: Receiver Status Indications
4.3 Receiver Power Indications Type Display Type (Red) Indication Power to receiver No power to receiver 4.4 Receiver COM Indications Type Display Type (Red) Indication Power to relay board No power to relay board Flex Duo Operator Manual August 2021 Page 19... -
Page 20: General Specifications
120 mm (L) x 90 mm (W) x 55 mm (H) 4.72 in. (L) x 3.54 in. (W) x 2.17 in. (H) Transmitter Weight: 183 g / 6.4 oz (including batteries) Receiver Weight: 900 g / 2.0 lb (including output cable) Flex Duo Operator Manual August 2021 Page 20... - Page 22 Flex Duo System Radio Control Equipment Operator Manual August 2021...
