EasyCoder PM4i Printer User's Guide (IPL Version)

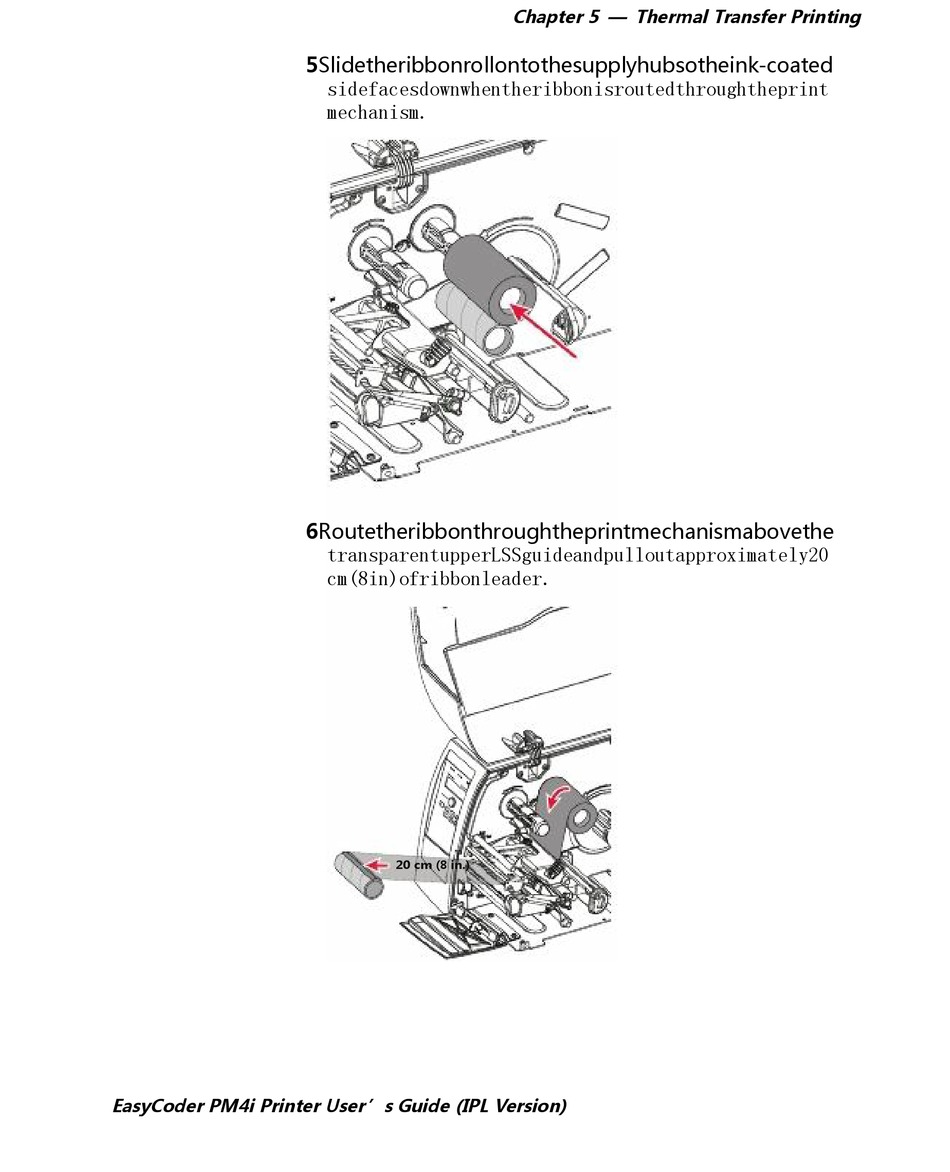

5Slidetheribbonrollontothesupplyhubsotheink-coated
sidefacesdownwhentheribbonisroutedthroughtheprint
mechanism.
6Routetheribbonthroughtheprintmechanismabovethe
transparentupperLSSguideandpulloutapproximately20
cm(8in)ofribbonleader.
20 cm (8 in.)
Chapter 5 — Thermal Transfer Printing
