6. Operation / Menu structure

6.2 Operating mask and Adjustment menu

Product: Product 1
Em: 100% PW: 90,0°
Frq: 794 kHz
F1 adjustments
Product: Product 1
* 20.11.2000 18:52:29 *
** Metal 409 **
F1 adjustments
20.11.2000 18:59:16
F1 change product
F2 teach in product
F3 setup
F4 operating mask

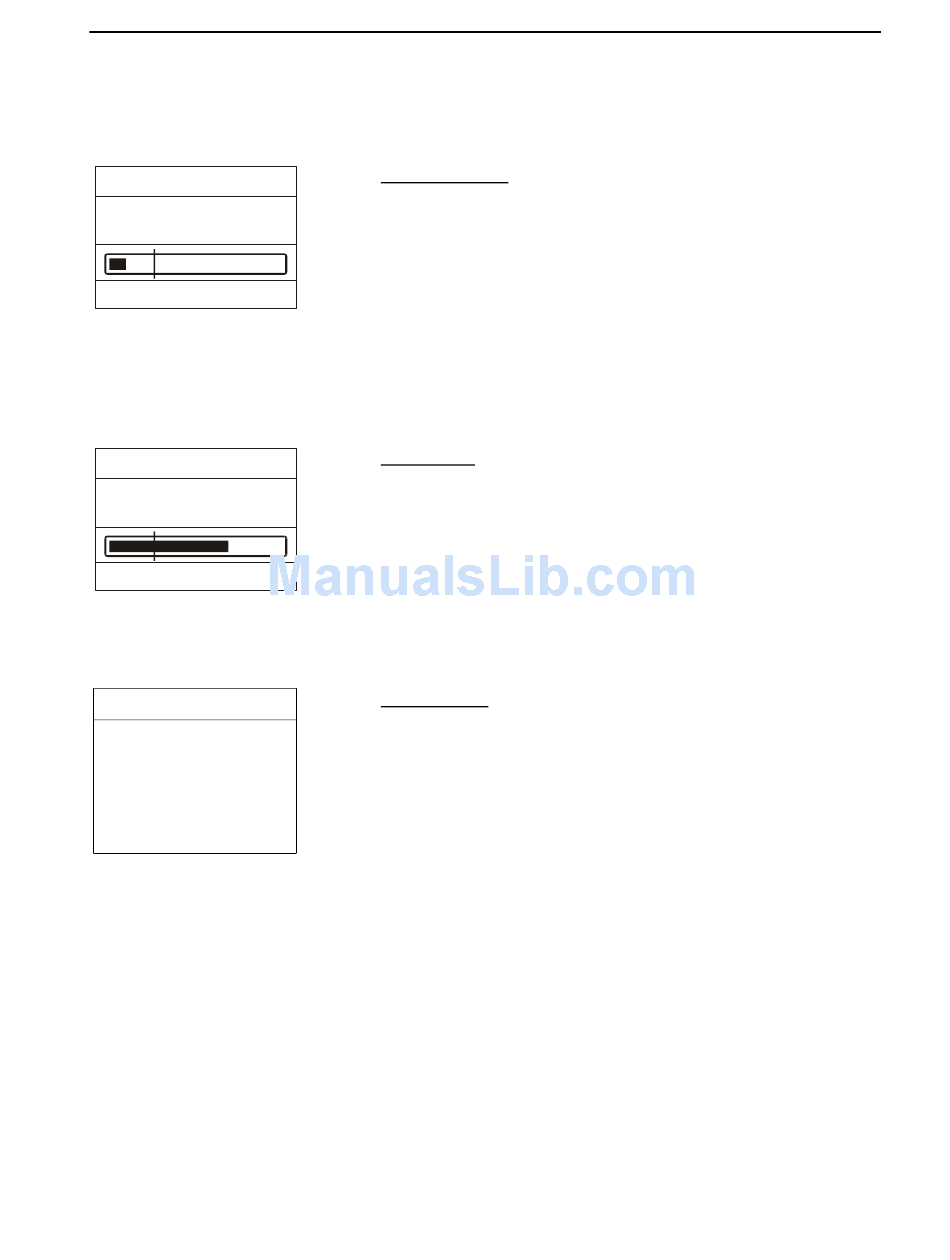

Operating mask: is displayed during operation.
Only this mask shows „metal detection" and „self monitoring"
Displayed information:
„DETECT" appears when metal is detected. It disappears after 1
second. If a reject unit is controlled it will be extinguished with
the signal of the light barrier that synchronizes the
If activated, "QUICKLEARN" is blinking (see 6.4.2.4).
The analogue metal signal is displayed as a bar graph.
Key F1 gets to Adjustment menu.
Metal mask: This mask appears after metal detection and after
the set delay time (see 6.4.2.6) . At the same time the metal
outputs are activated. After the ON- time or manual RESET the
operation mask appears.
This mask is only active in the operation mode. If during
operation a different menu was selected the metal outputs
are set despite of it.
Displayed informations:
Setting menu: Pressing of the keys F1, F2 or F3 get to the
menus, where products can be changed, new products taught in
or device parameters can be set (Set up).
When the Access code was activated (see 6.3.3), the appropri-
ate code must be input in advance. If the access code was
wrong, the display skips to the operating mask.
Key F4 get immediately to the operating mask
Exception: If no product is programmed the line F1„ change
product" is suppressed.
Additional information:
21
Name of current product
Em: Sensitivity
PW: Product angle
Frq: Frequency
rejection.
Date and time of detection
Amplitude of the metal signal
(max. 2000)
Date and time
