3. Design and method of operation

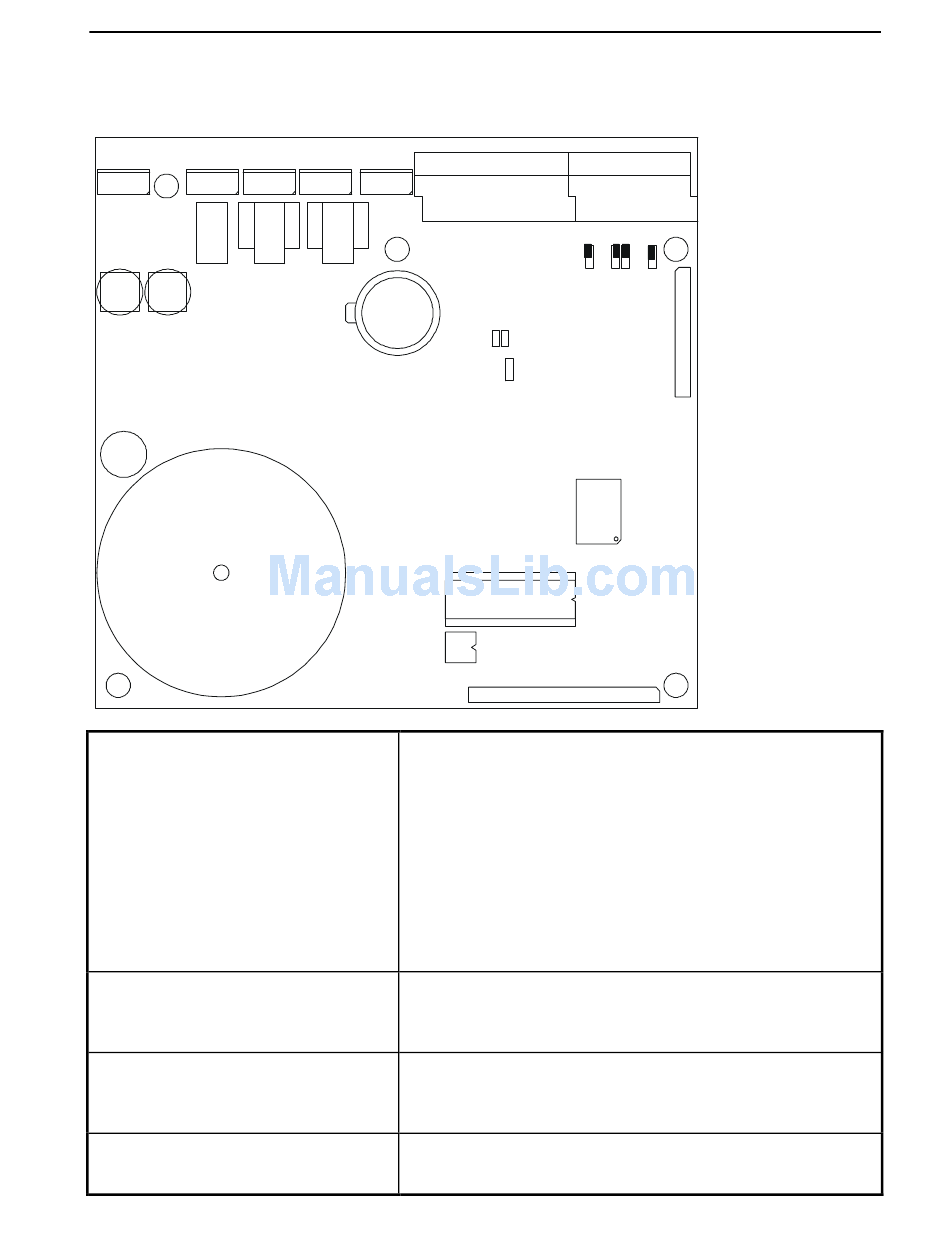

3.2.2 GENIUS - Controller board STE

1 2 3
10 10
11
Connectors:
Elements connected to mains volt-
age:
Elements connected to external
voltage:
Memory devices:
6b
4 5
6a
14
16
red
(1) „Mains":
(2) „Fault":
(3) „Metal 1":
(4) „Metal 2":
(5) „24V Output":
(6) a) 24 Inputs and outputs.
b) Connection detection coil/sensor electr.
(7) a) 24 Inputs
b) Serial interface RS485/RS232
(8) Ribbon cable connector for control panel
(9) Ribbon cable connector Option
( 1) „Mains" connector
(10) Mains fuse
(11) Mains voltage selector switch
(2) „Fault" connector
(3) „Metal" connector
(4) „Metal" connector
(14) Data battery for Logbook
(15) Program memory
(16) Device and product data memory
11
7b
7a
8
12
13
15
9
Mains supply
Potential-free change-over contact
Potential-free change-over contact
Potential-free change-over contact
24V switching output
