5. Commissioning

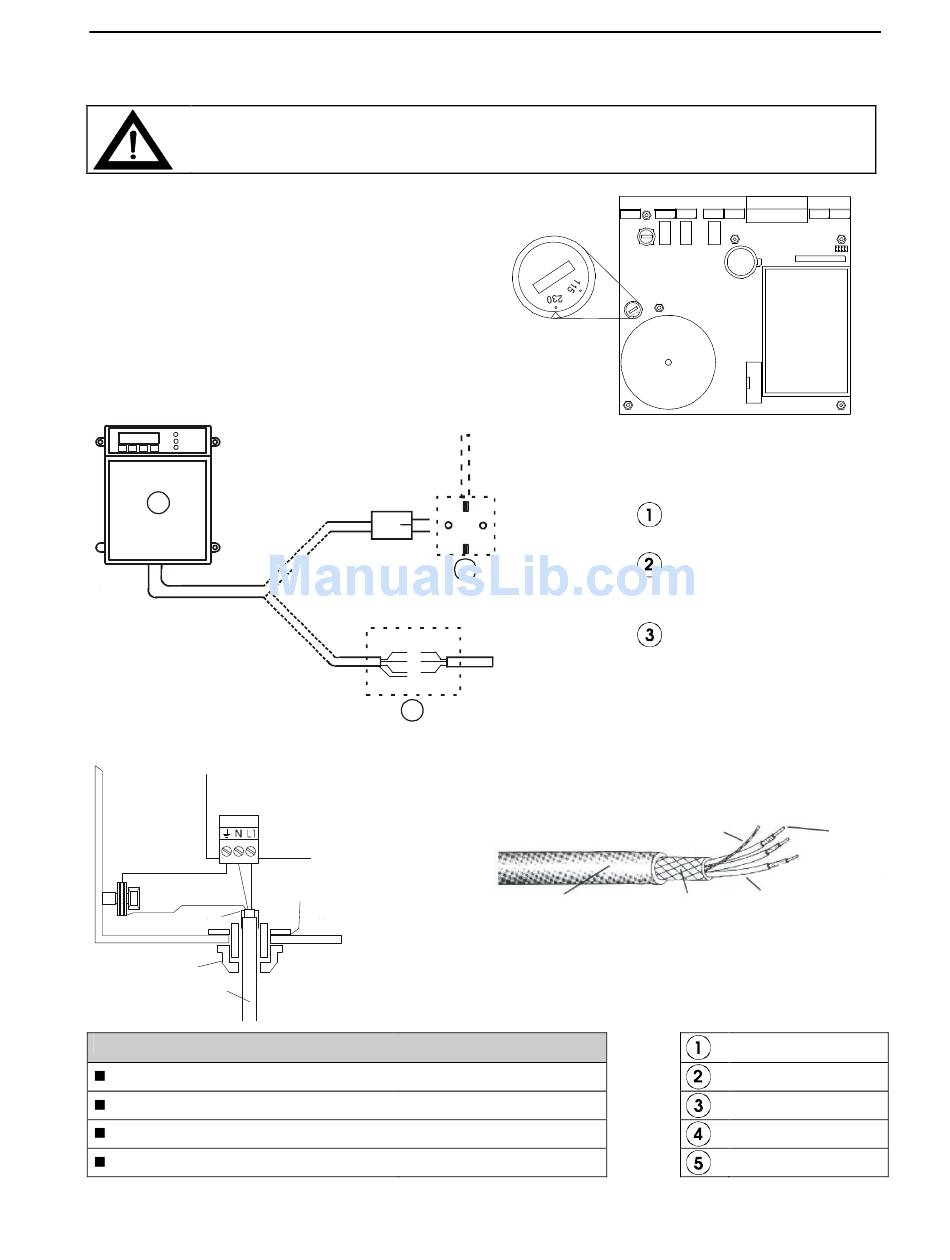

5.2.4 Electrical Connection of the equipment

Only qualified persons are authorized for the following procedure!
Before opening the housing make sure that no mains voltage or any external voltage is
connected!
1. After unloosing 4 screws fold the cover down-
ward.
2. Do the wiring according to your needs.
3. Check the mains voltage selector switch for
correct position.
4. Connect mains power supply.
4.1. The power cord and skintop gland may not be
removed - it is a essential part of the EMC-
concept. If the mains plug cannot be used a
conduit box should be used.
3
4.2. If necessary, connect plug ST1 "Mains"
Control unit
Mains
bl bn
Yel/gr
Shield
Cable gland
Skintop PG9
GNLM 3G 0,75
Cable
Shield
Conductor L
(brown, bn)
Conductor N
(blue, bl)
Conductor PE
(yellow, yel / green, gr)
5. After 5 sec the unit is ready for work
1
2
Strip of vanish for
cable gland
Plug / connection cable
Mains cable
5
PE
L
N
PE
18
TecTronix-GENIUS-BA-CU-EN-3006.doc
Mains supply by using the
outlet
Mains supply using alter-
natively a mains connec-
tion box
Controller board GENIUS
1
2
3
4
Shield
Conductor
PVC - insulation
Shield
Sheath
