5. Commissioning

5 Commissioning

5.1 Mechanical Mounting

• Ensure stable and non-vibrating installation!
• Do not install the detection coil and the electronic unit in the vicinity of interference fields (large
electric motors and frequency converters!) The distance depends on the power consumption of the
motor or of the frequency converter (value for orientation: 5 m).
• Never install the electronic unit in other switchgear cabinets, because this may lead to interference
effects.(e.g. from contactor controls)!
• Cable lengths may only be modified after consultation with „TecTronix Systems". Use only original
cables. Lay the connecting cable in fixed installation apart from other cables (e.g. fix it with nailing
clips or lay it in a cable duct).
• If several metal detector systems are used, the distance of the detection coils must not be less
than 2m, if these coils stand side by side. If the coils are arranged opposite to each other, the dis-
tance must not be less than 10 m. These values apply to large systems; for smaller systems the
distances may be reduced to 50 cm. If, for reasons of space, these distances cannot be observed,
please contact TecTronix Systems service!

5.2 Connection of the equipment

In order to meet CSP, UL and CE standards all cable outside of
the housing have to be shielded. The shields must be grounded
immediately after the cable gland.
The terminals „Mains" and „Evaluation Unit" are already factory reconnected.
According to the delivered option several connectors may be used.

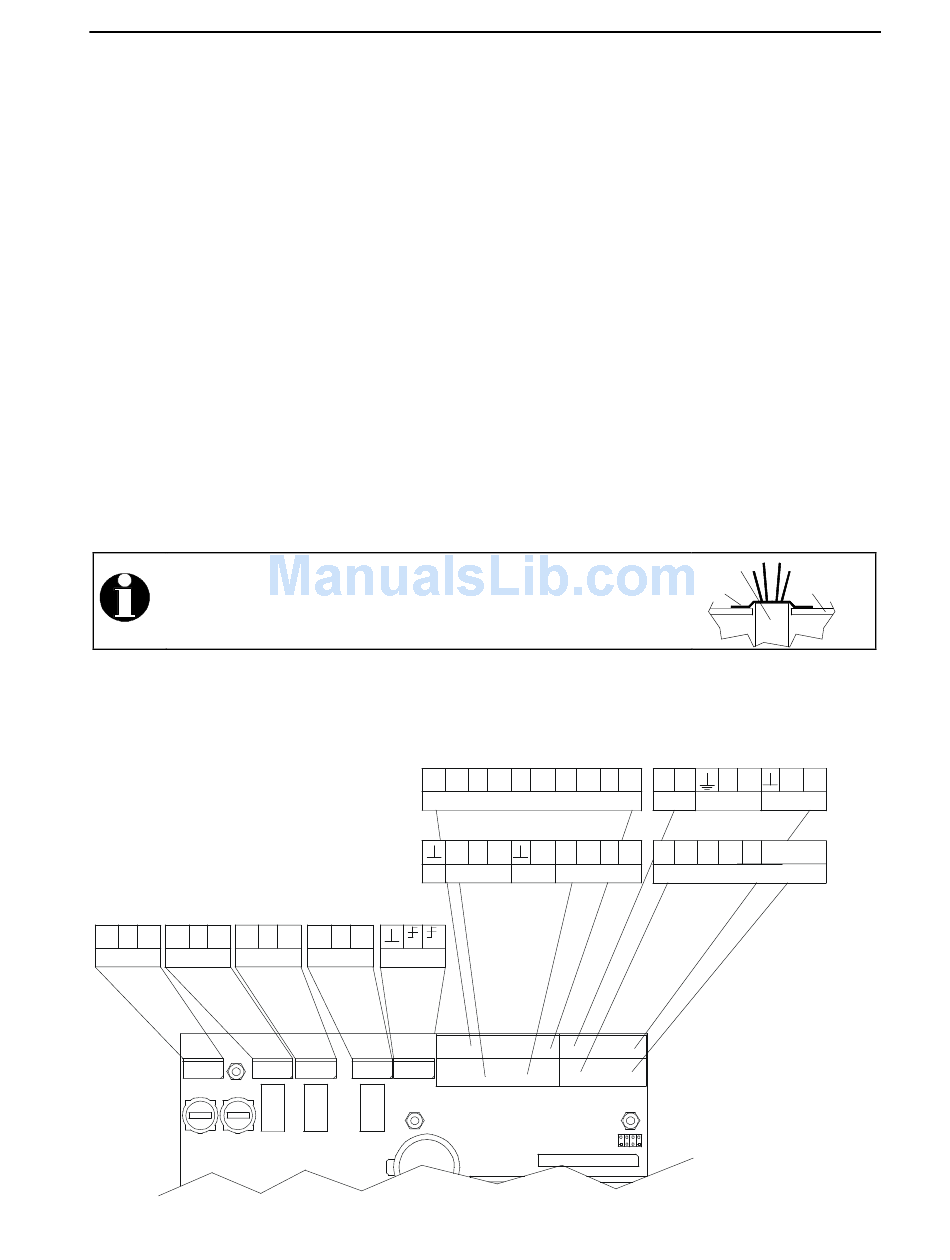

5.2.1 Connector assignments on the controller board

PE N L1 22 21 24 12 11
Mains Fault Metal 2
10 9
LF
PE Outputs
14 32 31 34
0 1
Metal 1 24V Output
8 7 6 5 4 3 2 1
Evaluation Unit
LB LM 24V IN1IN2 LSRST
Inputs
15
TecTronix-GENIUS-BA-CU-EN-3006.doc
Cable
Shield Housing
Dt Ck b a
TxD RxD
Tex_B RS485 RS232
i7 i6 i5 i4 i3 i2 i1 i0
Inputs
