Installation and Operation, cont'd
5. Attach the rack shelf to the rack using the supplied bolts.
1U Universal Rack Shelf
Use 1 mounting hole on each side of
the unit to attach it to the RSM 100.

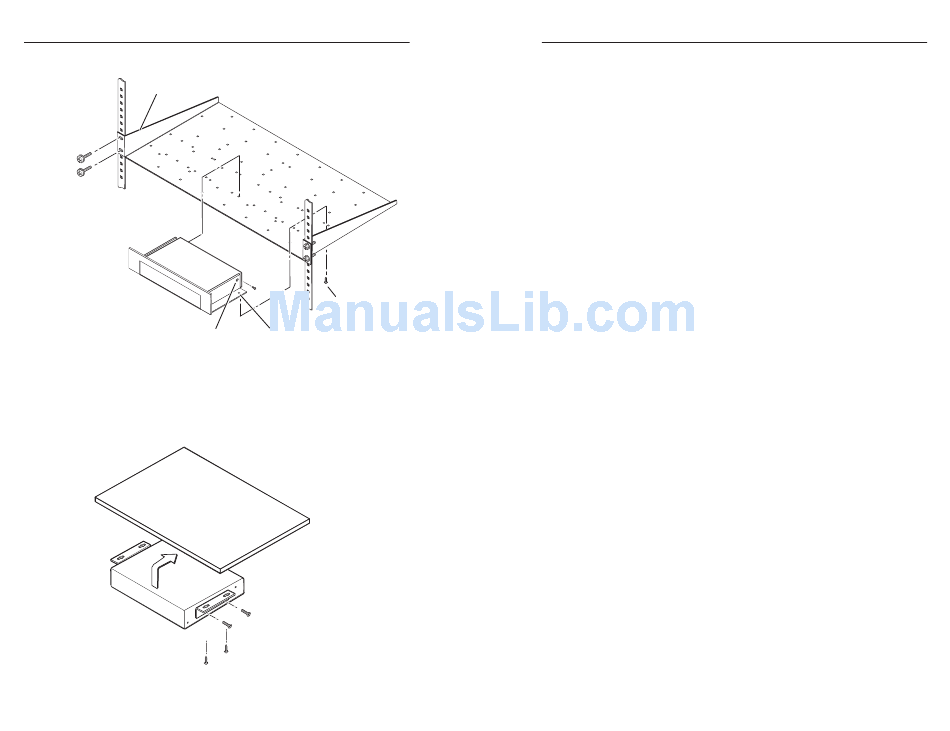

Figure 2-3 — Rack mounting a TP T series transmitter

Under-desk mounting

Furniture-mount the transmitter under a desk or shelf using the
optional mounting kit (part #70-077-01), as illustrated below.
Figure 2-4 — Under-desk mounting the transmitter
2-8 Extron TP Transmitters • Installation and Operation
(2) 4-40 x 3/16"
Screws
Use 2 mounting holes on the bottom of
the RSM 100 to attach it to the shelf.
To mount the transmitter under a desk, podium, or table top,
If rubber feet were previously attached to the bottom of
1.
the unit, remove them.
Remove the two screws from one side of the unit. Retain
2.
the screws for possible later reassembly.
3. Attach one bracket to the side of the unit, using the
provided machine screws.
4. Repeat steps 2 and 3 on the other side of the unit.
5. Hold the unit with the attached brackets against the
underside of the table or other furniture. On the mounting
surface, mark the location of the bracket's screw holes.
6. Drill pilot holes 1/4" (6.4 mm) deep and 3/32" (2 mm) in
diameter into the table or desk top at the marked screw
locations. The holes should be drilled from the underside
or inside (concealed side) of the furniture where the
transmitter will be located.
7. Insert #8 wood screws into the four pilot holes. Tighten
each screw into the mounting surface until slightly less
than 1/4" of the screw head protrudes.
8. Align the mounting screws with the slots in the brackets
and place the unit against the surface, with the screws
through the bracket slots.
9. Slide the unit slightly forward or back, then tighten all
four screws to secure it in place.
Extron TP Transmitters • Installation and Operation 2-9
