Installation, cont'd

Under-desk mounting

To mount the DVI 201xi Tx under a desk or podium, using the

optional Extron MBU 123 under desk mounting kit

(PN 70-212-01), follow these instructions:

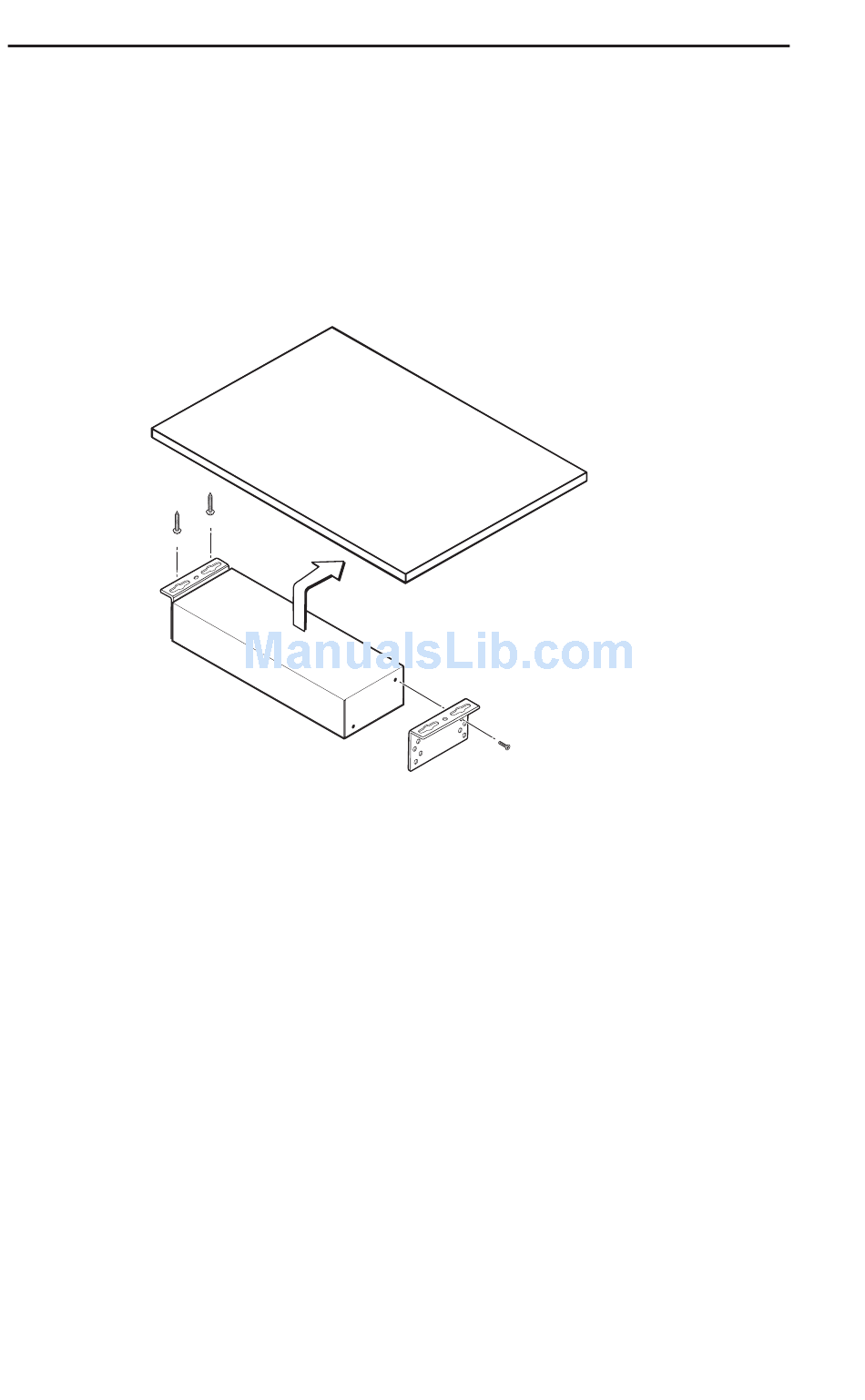

Under-desk mounting the DVI 201xi Tx

DVI 201xi Tx • Installation

2-4

Remove rubber feet if these have been installed on the

bottom of the unit.

Secure the mounting brackets to the unit, using the four

4-40 screws provided (see the figure below).

Hold the unit with the brackets attached against the

underside of the table or other furniture. Mark the location

of the screw holes of the bracket on the mounting surface.

Drill four pilot holes, each 3/32" (2 mm) in diameter by

1/4" (6.3 mm) deep in the mounting surface at the marked

screw locations.

Insert #8 wood screws into the four pilot holes. Tighten

each screw into the mounting surface until just less than

1/4" (6.3 mm) of the screw head protrudes.

Guide the mounting screws through the slots in the

brackets and place the unit tight against the surface of the

furniture.

Slide the unit slightly in or out so that it is held in place by

the narrow part of the slots sitting on the screws; tighten

all four screws to secure the unit in place (see the figure

above).
