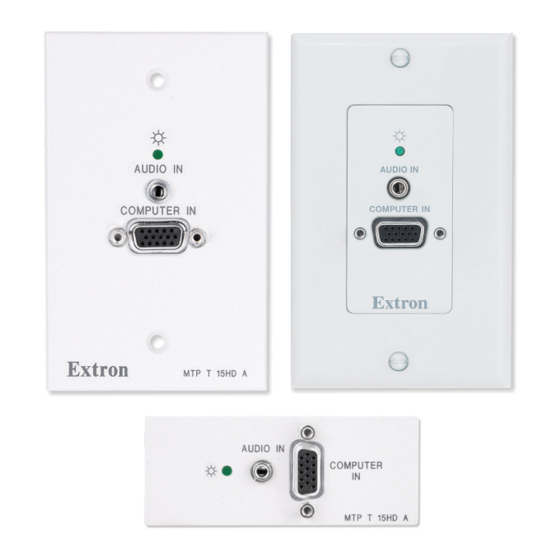

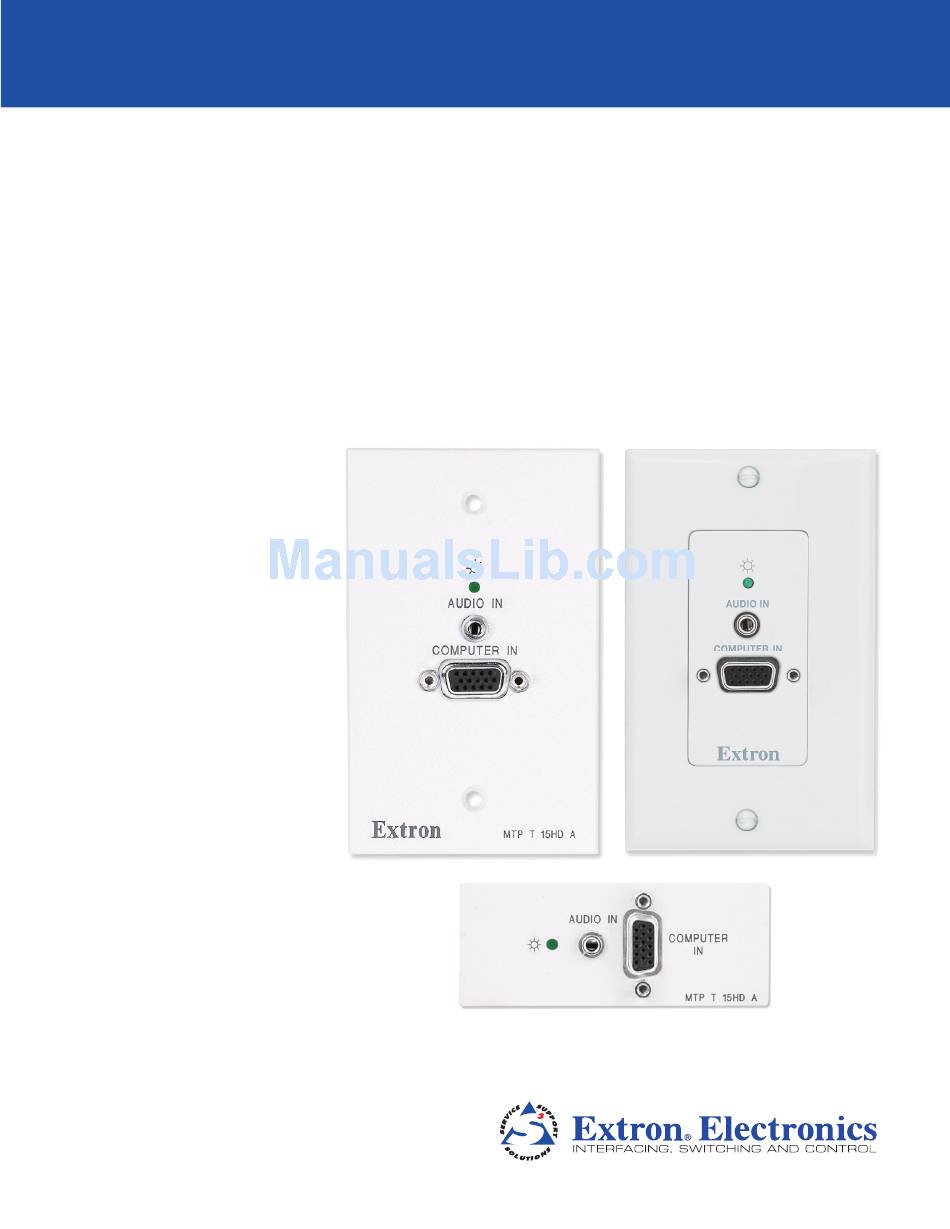

- Page 1 User Guide Twisted Pair MTP T 15HD A Architectural Twisted Pair Transmitters MTP T 15HD WM, MTP T 15HD A D, MTP T 15HD A AAP 68-2207-01 Rev. A 08 12...
- Page 2 Safety Instructions • English Warning Power sources • This equipment should be operated only from the power source indicated This symbol is intended to alert the user of important operating and mainte- on the product. This equipment is intended to be used with a main power system with a nance (servicing) instructions in the literature provided with the equipment.
- Page 3 A note draws attention to important information. Specifications Availability Product specifications are available on the Extron website, www.extron.com. Copyright © 2012 Extron Electronics. All rights reserved. Trademarks All trademarks mentioned in this guide are the properties of their respective owners.
-
Page 5: Table Of Contents
About the MTP Transmitters ........ 1 Twisted Pair Cable Advantages ......1 Transmission Distance ........1 About the MTP T 15HD A WM ......3 About the MTP T 15HD A D ......4 About the MTP T 15HD A AAP ......4 Installation ............5... -
Page 7: Introduction
MTP RL 15HD A SEQ receiver. A pre-peaking control switch boosts the transmission distance of the proprietary signal. The MTP T 15HD A architectural series is part of a system for long-distance distribution of VGA or other high resolution video and audio, over Extron Enhanced Skew-Free AV UTP ™... - Page 8 Resolutions marked with an asterisk (*) in the table above have the same range specifications at 75 Hz. • It is possible to exceed the recommended distance; however, image quality may be reduced. MTP T 15HD A Architectural Series • Introduction...
-
Page 9: About The Mtp T 15Hd A Wm
About the MTP T 15HD A WM The MTP T 15HD A WM Twisted Pair Transmitter is a wall or furniture mountable version of the MTP T 15HD A, and can be mounted into any standard Underwriters Laboratories (UL) listed one-gang electrical wall box or by using the included mud ring. -
Page 10: About The Mtp T 15Hd A D
About the MTP T 15HD A D The MTP T 15HD A D Twisted Pair Transmitter is a wall or furniture mountable version of the MTP T 15HD A that fits any Decora® style wall plate. AUDIO IN COMPUTER IN Figure 3. -
Page 11: Installation
Installing the MTP T 15HD A WM and MTP T 15HD A D The MTP T 15HD A WM and MTP T 15HD A D can be installed in a one-gang electrical wall box, with the MTP T 15HD A D fitting into a Decora wall plate cover (supplied). If a suitable wall box is already installed, follow steps 5 through 8 on the following page. -
Page 12: Installing Into A Mud Ring (Wm Model)
Installation” on page 7. Wall Wall Mounting Bracket (mud ring) D IO IN P MTP T 15HD A WM Figure 5. Mounting the MTP T 15HD A WM using the Mud Ring MTP T 15HD A Architectural Series • Installation... -
Page 13: Final Installation
Installing the Wall Box • If installing an MTP T 15HD A WM, mount the faceplate directly to the box or mud ring. • If installing an MTP T 15HD A D, mount it directly to the wall box, then attach the Decora wall plate, as shown in figure 6, and restore the power supply. -
Page 14: Installing The Mtp T 15Hd A Aap
Installing the MTP T 15HD A AAP The MTP T 15HD A AAP must be attached to a device faceplate or AAP wall plate and cabled before the device or wall plate is pretested or installed in a wall or furniture. -
Page 15: Connections And Settings
Do not connect these devices to a computer data or telecommunications network. Front Panel Features The front panel features are the same on all the MTP T 15HD A architectural models, as shown in figure 9. AUDIO IN AUDIO IN... -
Page 16: Rear Panel Features
With the exceptions of , and on the MTP T 15HD A D , as noted in the figures and descriptions below, the rear panel features are the same on all the MTP T 15HD A architectural models. PRE- PEAK... - Page 17 • Do not tin the power supply leads before installing in the direct insertion connector. Tinned wires are not as secure in the connectors and could be pulled out of the connector. MTP T 15HD A Architectural Series • Installation...
- Page 18 Use the supplied tie wrap to strap the power cord to the extended tail of the connector. As an alternative, an Extron PS 124 Universal 12 VDC Power Supply (part number 60-1022-01) can power multiple MTPs or other Extron 12 VDC devices using only one AC power connector. MTP T 15HD A Architectural Series • Installation...
-
Page 19: Twisted Pair Cable Termination
RGB signals. • The orange wire pair of this cable has a different length and should not be used to transmit the RGB signals. MTP T 15HD A Architectural Series • Installation... -
Page 20: Edid Minder Configuration
EDID Minder Configuration The MTP T 15HD A D unit supports emulation of factory-installed EDID information through EDID Minder. To use factory-installed EDID information: If you have not already done so, connect the source device to the MTP 15HD transmitter. -
Page 21: Template
The cut-out template (see figure 15) is used to install a MTP T 15 HD A WM or MTP T 15HD A D. Use the dimensions in the cut-out template as a guide for cutting a hole in a wall or furniture. -
Page 22: Application Diagrams
IF T N IT W IT /M A M IN N IT D IO N IT RGB 468xi SVGA Compatible Computer w/ Audio Figure 17. Typical MTP T 15HD A AAP Application MTP T 15HD A Architectural Series • Installation... -
Page 23: Reference Information
AAP 100 panel, black, white, RAL9010 60-593-02, 03, AAP 102 panel, black, white 60-300-02, 03 AAP 104 panel, black, white, RAL9010 60-301-02, 03, AAP 106 panel, black, white, gray 60-531-02, 03, MTP T 15HD A Architectural Series • Reference Information... -
Page 24: Cables
CAT 6 jack (blue), qty. 10 100-478-01 CAT 6 jack (orange), qty. 10 100-479-01 CAT 6 jack (gray), qty. 10 100-480-01 CAT 6 jack (white), qty. 10 100-481-01 CAT 6 jack (ivory), qty. 10 100-482-01 MTP T 15HD A Architectural Series • Reference Information... -
Page 25: Dimensions
MTP T 15HD A WM MTP T 15HD A D .0 0 [ .000 . 0 0.000 AUDIO IN COMPUTER [ . ] [ . ] .000 [0.000] Figure 20. MTP T 15HD A AAP MTP T 15HD A Architectural Series • Reference Information... - Page 26 Extron Electronics makes no further warranties either expressed or implied with respect to the product and its quality, performance, merchantability, or fitness for any particular use. In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been advised of such damage.
