Connecting The Server Cables For Both Servers - Fujitsu SPARC Enterprise T5140 Installation Manual

Note – When you are finished connecting the cables to the server, ensure that the
server can slide smoothly in and out of the rack without binding or damaging the
cables.
Related Information
"To Verify the Operation of the Slide Rails and the CMA" on page 33
■
"To Connect the Service Processor Serial Management Port" on page 36
■
"To Connect the Service Processor Network Management Port" on page 37
■
To Connect the Service Processor Serial
Management Port
The service processor serial management port is marked SER MGT. This port is the
farthest left RJ-45 port on the rear panel.
Note – The cable and DB-9 RJ-45 adapters are for the host serial port, and not for the
server SER MGT port.

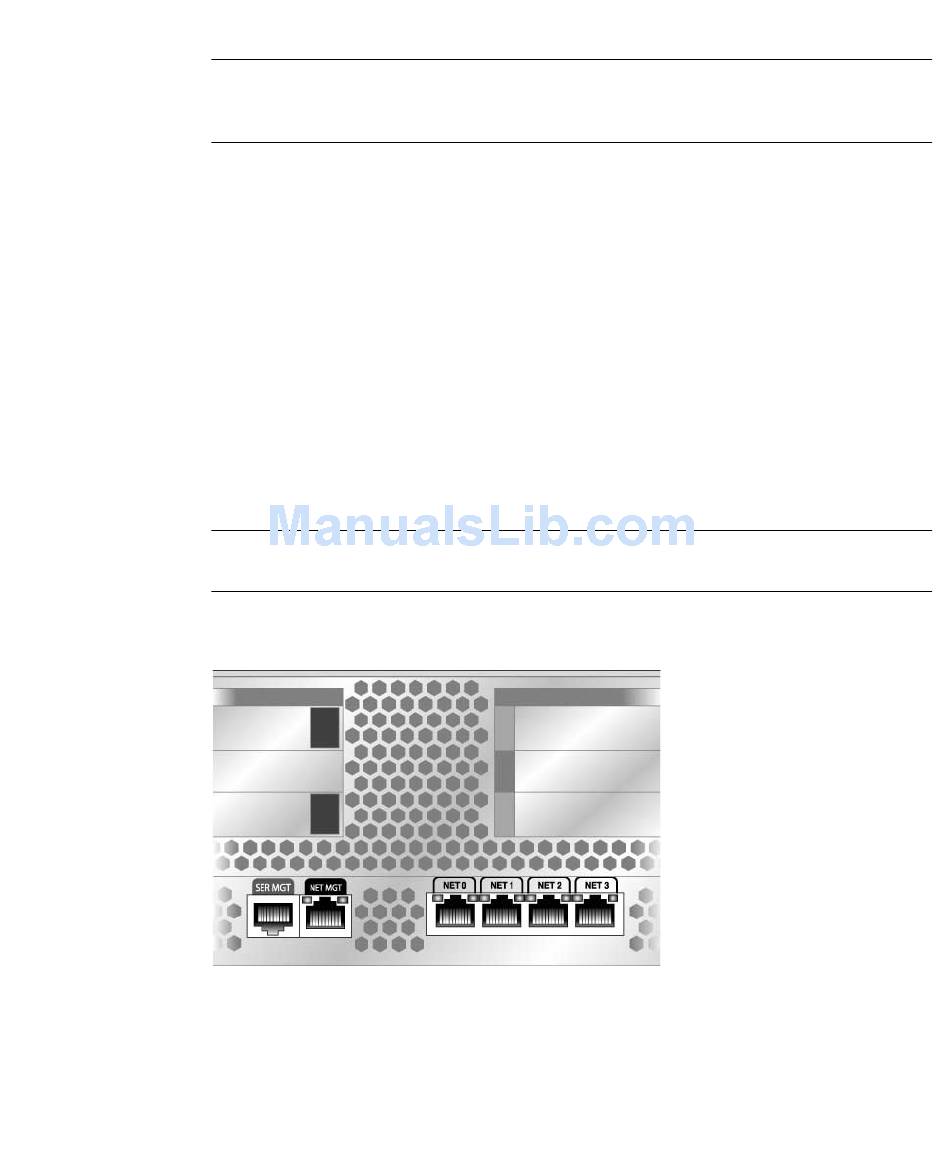

Service Processor Serial Management Port – Rear Panel
FIGURE:
Use this port for server management. This port is needed to set up the service
processor network management port, as detailed in
Network Management Port" on page 49.
