9.10 Collar 6

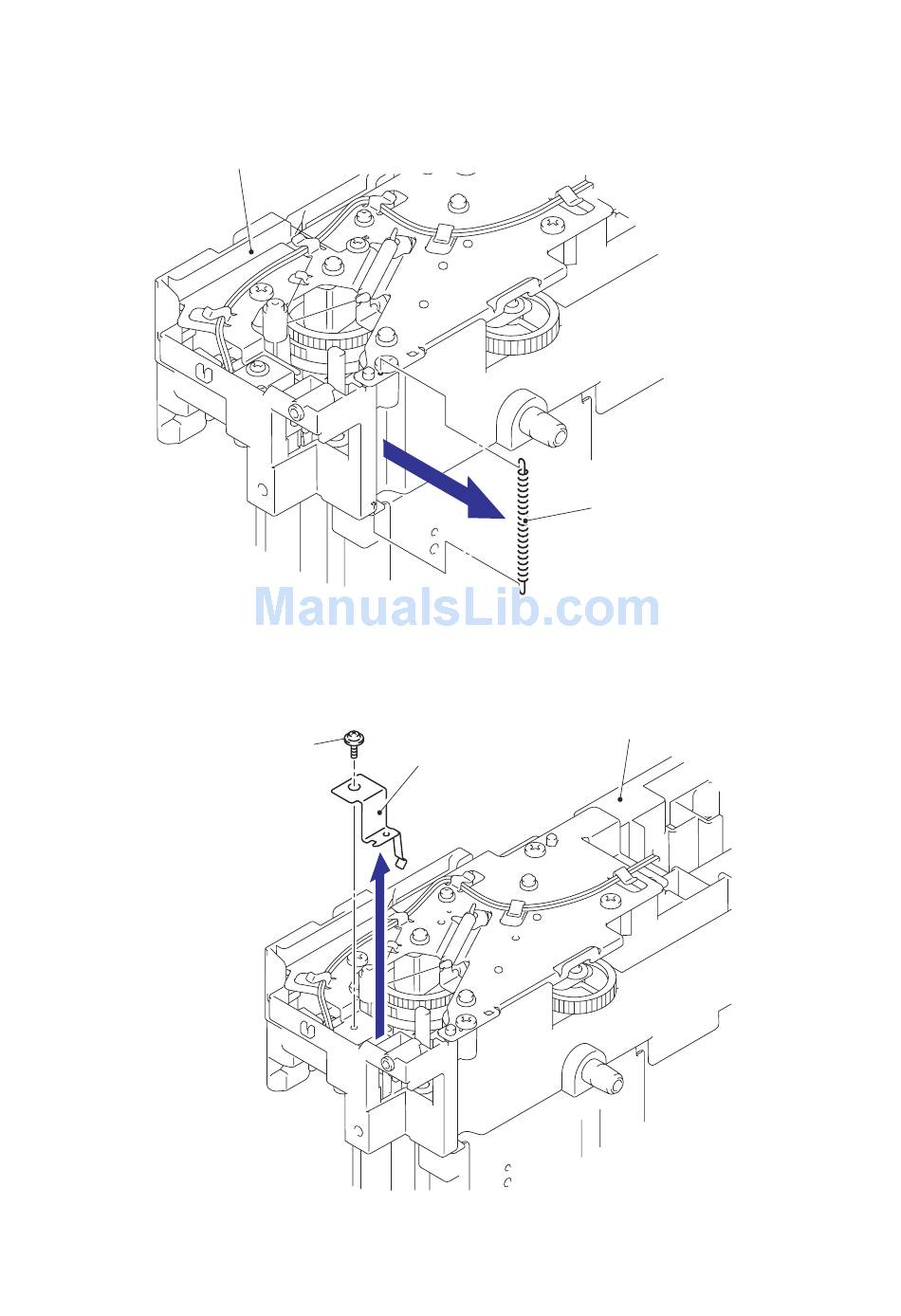

(1) Remove the Gear plate ground spring from the LT frame L.
LT frame L
(2) Remove the cup S M3x6 Taptite SR screw, and then remove the Feed roller ground
plate.
Taptite, cup S M3x6 SR
Fig. 5-151
Feed roller ground plate
Fig. 5-152
5-105
Gear plate ground spring
LT frame L
Confidential
