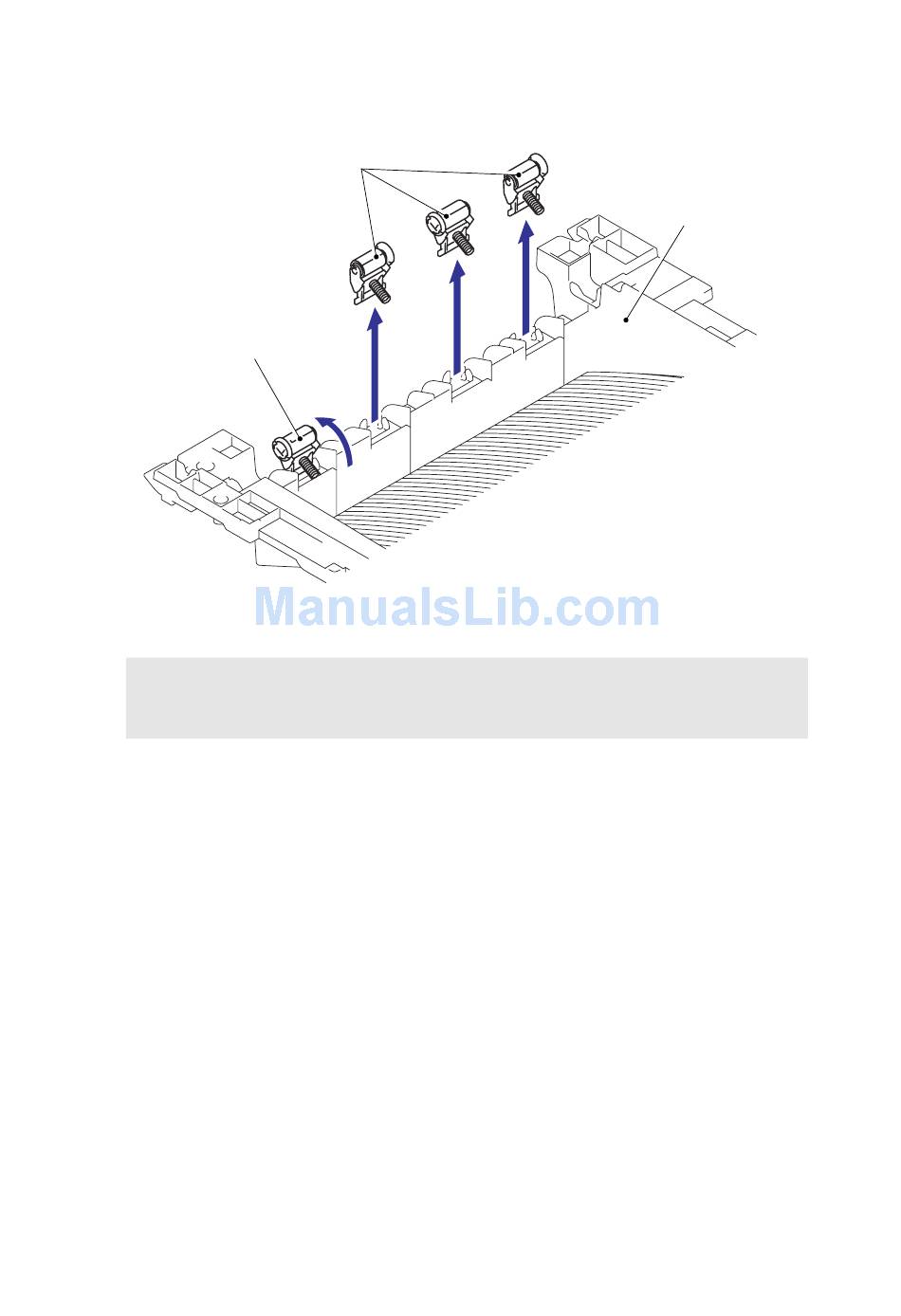

(4) Turn the Inner chute upside down.
(5) Remove the Pinch roller holder from the Inner chute.
Pinch roller holder
Inner chute
Pinch roller holder
Fig. 5-47
Assembling Note:
• When assembling the Pinch roller holder, be sure that its direction is correct as shown in
the figure above.
5-44
