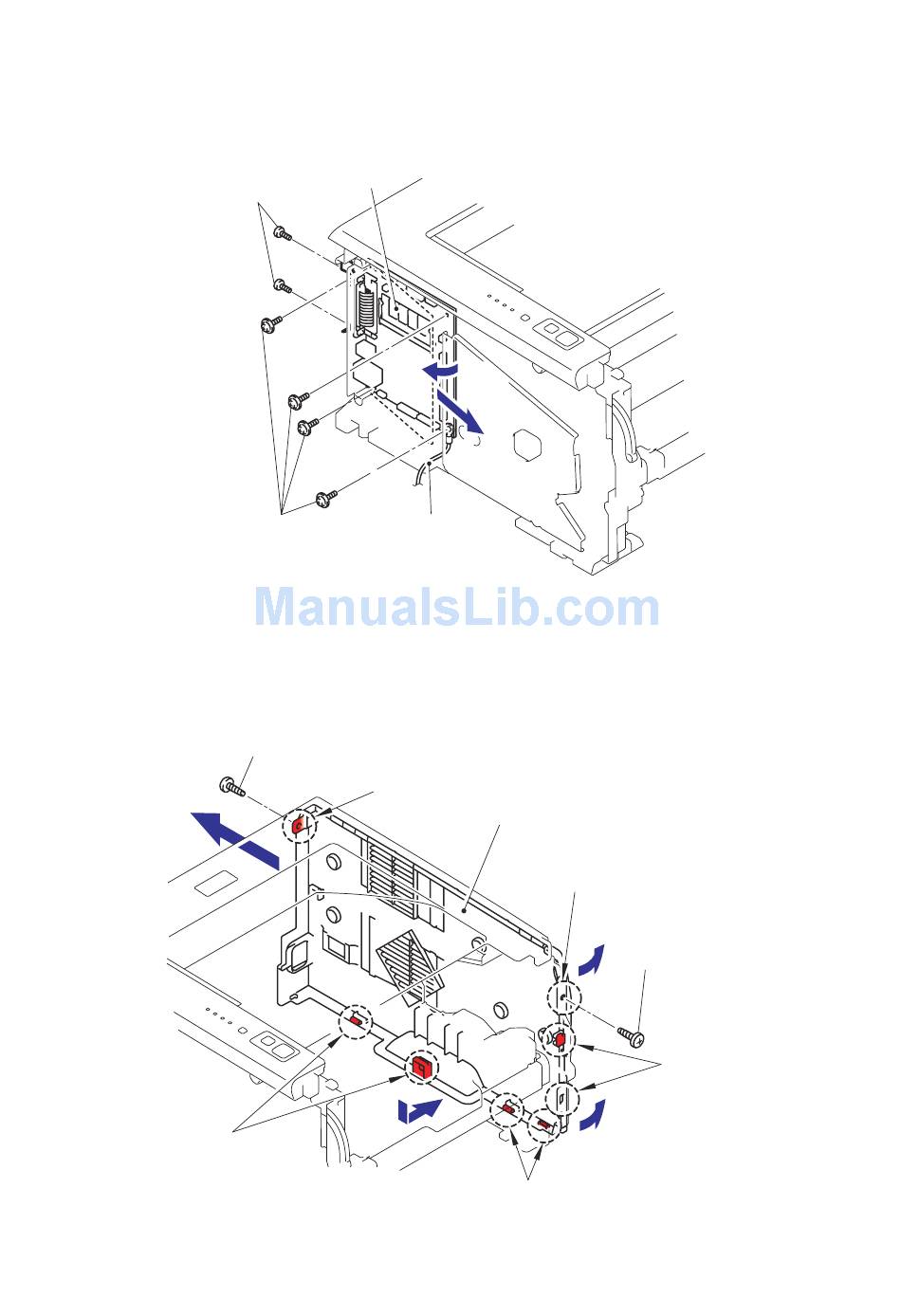

(3) Remove the cup S M3x6 SR Taptite screw, and then remove the FG harness.
(4) Remove the four cup S M3x6 SR Taptite screws and two Screws to remove the Main
PCB by following the direction of 4a and 4b.
Taptite, cup S M3x6 SR
8.9

Side Cover R

(1) Remove the two bind B M4x12 Taptite screws, and then remove the Side cover R by
following the direction from 1a to 1d.
Taptite, cup S M3x6
1d
Hooks
Main PCB
Screws
4a
FG harness
Hook
1c
4b
Fig. 5-36
Side cover R
Hook
1a
Hooks
Fig. 5-37
5-37
Taptite, cup S M3x6
Hooks
1b
