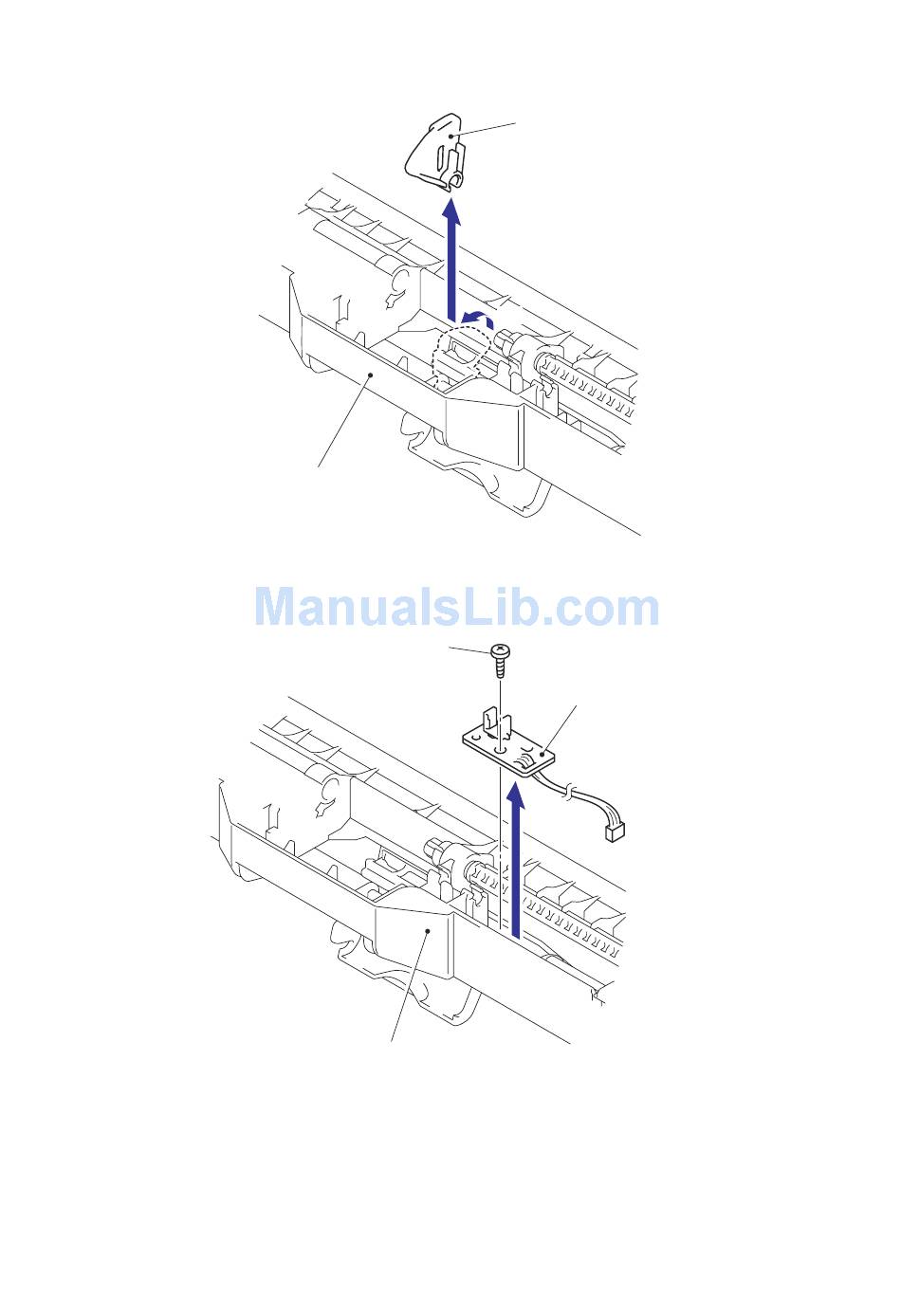

(9) Turn the PE actuator MP to the direction of 9a and pull it up to remove.

MP feed frame

(10) Remove the bind B M3x8 Taptite screw, and then remove the MP PE sensor ASSY.

Taptite, bind B M3x8

MP feed frame

PE actuator MP

MP PE sensor ASSY
