(3) Disconnect the two connectors from the Toner LED PCB.
(4) Release the two Hooks to remove the LED holder from the Toner LED PCB.

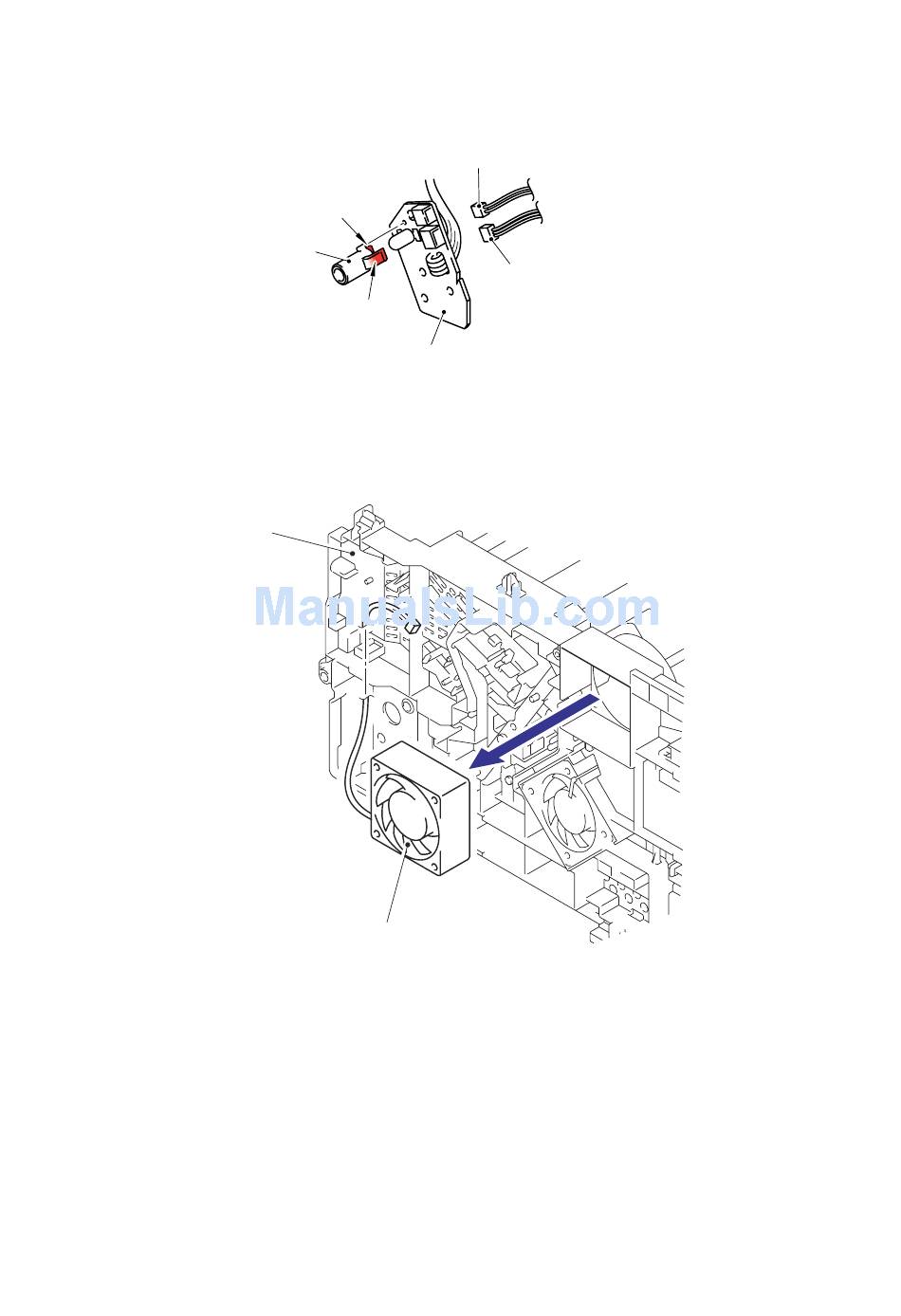

8.31 Fan Motor 60 Unit
(1) Remove the Fan motor 60 unit from the Frame R.
Frame R
Hook
LED holder
Hook
Toner LED PCB unit ASSY
Fig. 5-105
<Right side>
Fan motor 60 unit
Fig. 5-106
Fan motor 60 unit LV connector
Fan motor 60 unit connector
5-77
Confidential
