Brother HL-5340D Service Manual page 217

(4) Remove the two bind B M4x12 Taptite screws, and then remove the LV insulation sheet.
(5) Remove the bind B M4x12 Taptite screw, and then remove the SW holder ASSY.
(6) Float the Fan motor 60 unit LV from the Frame R.
Note:
• Do not remove the Fan motor 60 unit LV at the above step.
SW holder ASSY

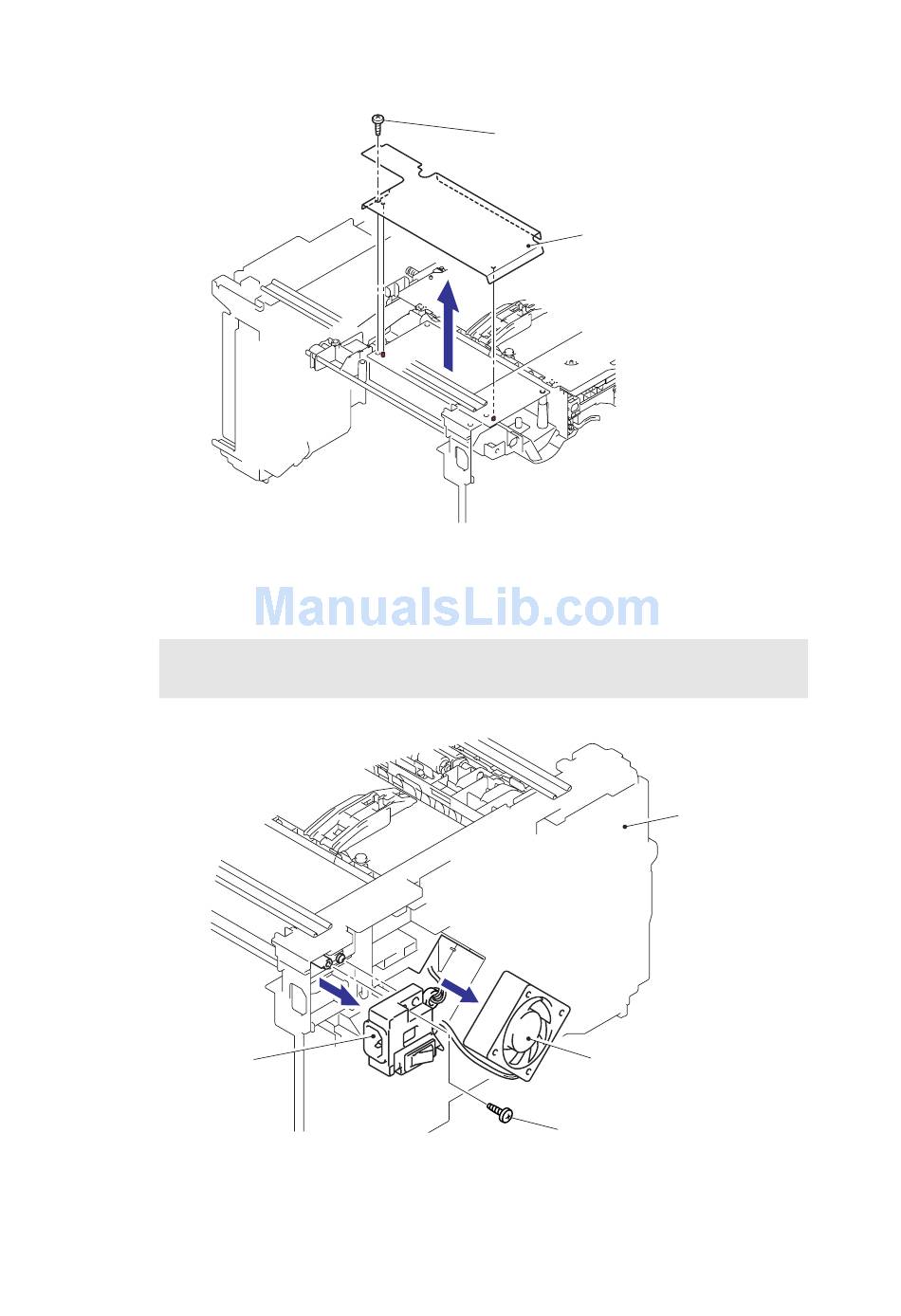

Fig. 5-93
6
5 5
Fig. 5-94
5-70
Taptite, bind B M4x12
LV insulation sheet
Fan motor 60 unit LV
Taptite, bind B M4x12
Frame R
<Right side>
