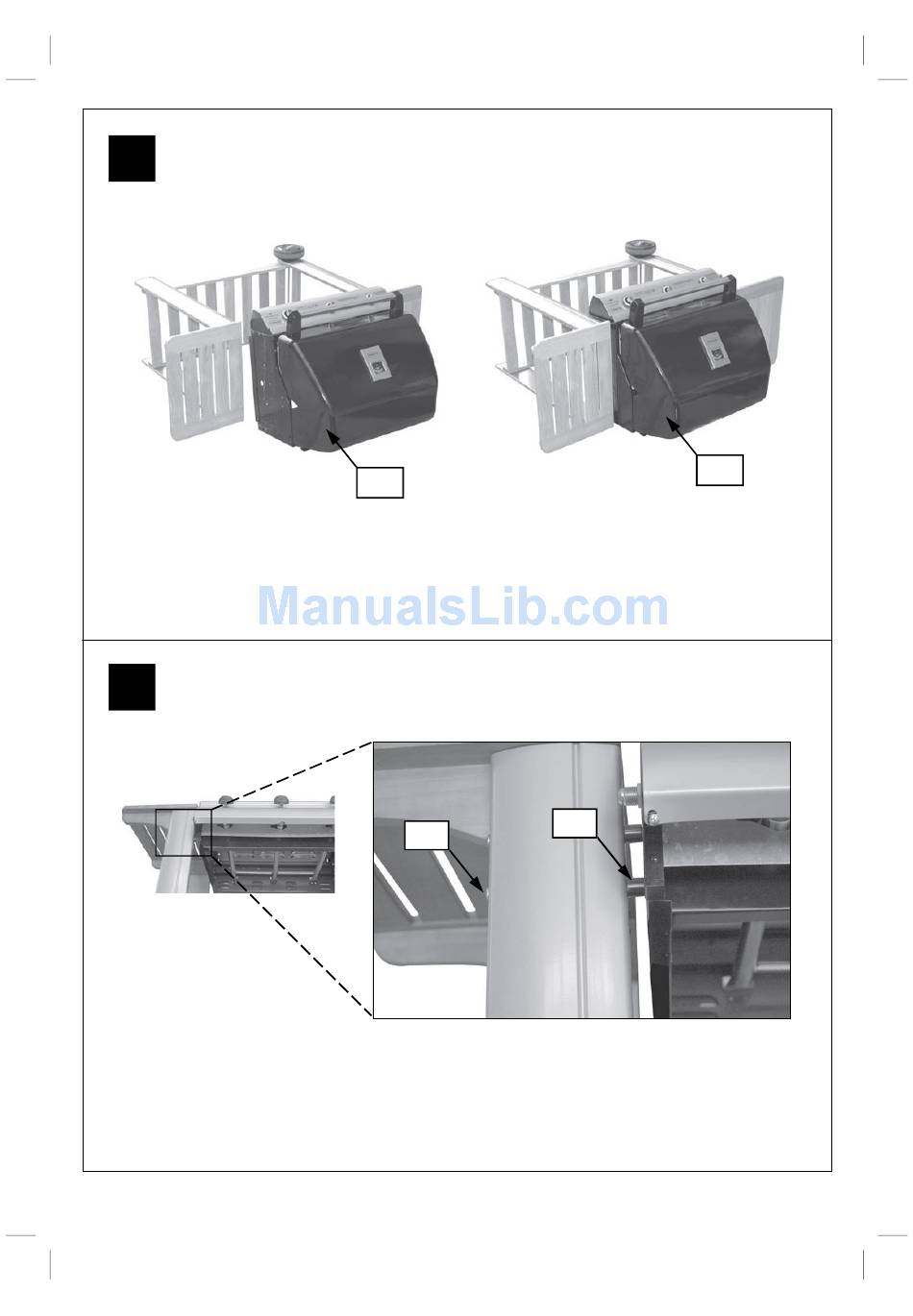

Lay the assembled trolley on its side. Lay the body (B1) on its back and slide into position
between the trolley legs. Warning: Care must be taken to ensure hood does not fall open
unexpectedly. When positioning the body of the barbecue, ensure the control panel is on the
same side as the legs with Velcro fastenings.
6
With the barbecue laid on the ground, insert a M6x145 bolt (D6) through the short leg, through a
spacer (D7), and secure the bolt into the sidewall of the body. Repeat the process for all the legs
until the body is completely fixed to the trolley.
NOTE: When positioning the body of the barbecue, ensure the control panel is on the same side
as the legs with Velcro fastenings.
B1
D6
7
B1
D7
