Assembly and Operating Instructions for

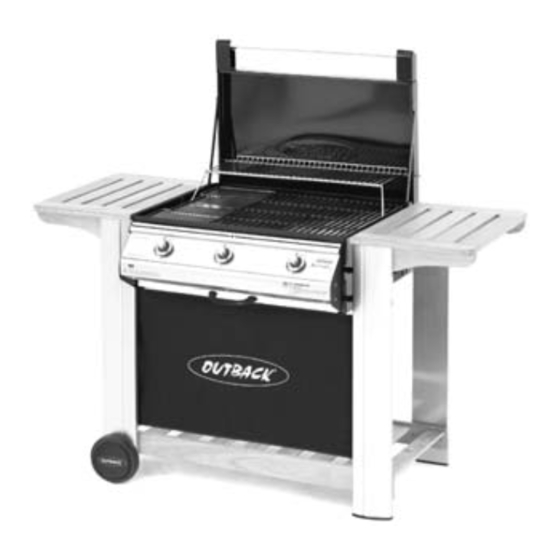

Outback® Spectrum 3 Burner Gas Barbecue
Photographs are not to scale.
Specifications subject to change
without prior notice.
•
•
•
•
•
•
WARNING
•
•
FOR YOUR SAFETY
If you smell gas:
1.
Shut off gas to the appliance.
2.
Extinguish any open flame.
3.
Open barbecue lid or hood.
4.
If odour continues, discontinue use and
contact your local dealer.
Check the box and make sure you have all the parts and fittings listed. If not, contact your local store or
the Helpline
TRG3301P
For outdoor use only.
Read instructions before using the appliance. Failure to follow instructions could
result in death, serious bodily injury, and/or property loss.
Warning: accessible parts may be very hot. Keep young children away.
Do not move the appliance during use.
Turn off the gas supply at the gas bottle after use.
Any modification of the appliance, misuse, or failure to follow the instructions may
be dangerous and will invalidate your warranty. This does not affect your statutory
rights.
Retain these instructions for future reference.
Leak test annually, and whenever the gas bottle is removed or replaced.
1.
2.
0162-267-1771
who will be able to help you.
FOR YOUR SAFETY
Do not store or use petrol or other flammable
vapours or liquids in the vicinity of this or any
other appliance.
A gas bottle not connected for use shall not be
stored in the vicinity of this or any other
appliance.
0359
Advertisement
Related Manuals for Outback Spectrum TRG3301P
Summary of Contents for Outback Spectrum TRG3301P
- Page 1 Assembly and Operating Instructions for Outback® Spectrum 3 Burner Gas Barbecue TRG3301P Photographs are not to scale. Specifications subject to change 0359 without prior notice. • For outdoor use only. • Read instructions before using the appliance. Failure to follow instructions could result in death, serious bodily injury, and/or property loss.
- Page 2 Quantities vary according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see ‘Hardware Reference Diagram’. CODE PART Outback® Spectrum 3 Lid Handle Flat Lid (Pre-Assembled to Body) L/H Lid Handle Bracket R/H Lid Handle Bracket...
- Page 3 B. Parts Diagrams Quantities vary according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see hardware pack page. Check the box and make sure you have all the parts and fittings listed. If not, contact your local store or 0162-267-1771 the Helpline who will be able to help you.
- Page 4 C. Hardware Reference Diagram Specifications subject to change without prior notice. D2,D3,D4 D6,D7 Check the box and make sure you have all the parts and fittings listed. If not, contact your local store or 0162-267-1771 the Helpline who will be able to help you.
- Page 5 D. Assembly TOOLS NEEDED FOR ASSEMBLY: Medium size flat blade or Phillips/crosspoint screwdriver, adjustable spanner or metric spanner set. The assembly of this barbecue requires 2 people. Whilst every care is taken in the manufacture of this product, care must be taken during assembly in case sharp edges are present.
- Page 6 Attach the side shelves (C1) to the front/rear left legs (C2,C3) and front/rear right legs (C4,C5) using the M6x25 bolts (D5). Remove all cast iron cooking components, flame tamer, drip tray, and any internal packaging from the barbecue body. Check the box and make sure you have all the parts and fittings listed. If not, contact your local store or 0162-267-1771 the Helpline who will be able to help you.
- Page 7 Lay the assembled trolley on its side. Lay the body (B1) on its back and slide into position between the trolley legs. Warning: Care must be taken to ensure lid does not fall open unexpectedly. With the barbecue laid on the ground, insert a M6x145 bolt (D6) through the short leg, through a spacer (D7), and secure the bolt into the sidewall of the body.
- Page 8 Remove the plastic wrap from the flame tamer (B12) and lay them carefully into the body ensuring they lie level within the body. Lay the cooking grill(s) (B9, B10)and griddle (B11) into place. 2 burner model configuration: Left — Large Cooking Grill, flame tamer, Right — Small Cooking Grill, flame tamer;...
- Page 9 Attach the drip tray handle (B6) to the drip tray (B5) using the M5x10 bolts (D1). Put the drip tray underneath the body (B1) from back side. Attach the warming rack (B14) to the flat lid as shown. Check the box and make sure you have all the parts and fittings listed. If not, contact your local store or 0162-267-1771 the Helpline who will be able to help you.
- Page 10 (Rear view of the barbecue trolley.) Attach the screen (C6) to the front left/right legs as shown. Connect the gas hose and regulator (B13) to the BBQ. Ensure the mating faces of the connection are clean and not damaged. Do not use any sealing tape, paste or liquid on the joint.
- Page 11 Open the barbecue hood before lighting. Model Propane Bottle Size Do not move the barbecue while alight. Outback® Spectrum 5kg or 13kg This barbecue must not be left unattended 3 Burner when lit.
- Page 12 is switched off, and that there are no sources of foods from sticking to the porcelain, please use a ignition (cigarettes, open flame, sparks, etc.) near long handled brush to apply a light coat of cooking before proceeding. Inspect the gas hose to ensure or vegetable oil before each barbecuing session.
- Page 13 To reduce flare-ups, the burners should available from your local Outback® stockist. be turned down to the low setting. Flare–ups can be extinguished by applying baking soda or salt Even when your barbecue is covered for its directly onto the flame tamers.
- Page 14 I2. Burner Maintenance Provided that they are operating correctly, in normal usage, burning off the residue after cooking will keep the burners clean. The burners should be removed and cleaned annually, or whenever heavy build up is found, to ensure that there are no signs of blockage (fat, debris or insects for example), in either the burner portholes or the burner primary air inlet.
- Page 15 Heat Input Burners Injector Size I8. Trolley Approval Your trolley is manufactured using a hardwood suited to outdoor use, provided it is treated with Outback® 0359 Teak oil or similar after assembly and on a regular Spectrum 13.2kW 1.10mm 359BR665 basis thereafter.
- Page 16 K. Troubleshooting Problem Possible Cause Solution Burners will not light using LP gas bottle is empty Replace with full bottle the ignition system Faulty regulator Have regulator checked or replace Obstructions in burners Clean burners Obstructions in gas jets or gas hose Clean jets and gas hose Electrode wire is loose or disconnected Reconnect wire...
