Optional accessories

Digital scales

The Euro-50T Mini cash register allows for the connection of digital electronic scales with an optional RS-232
interface. You can also use them without a connection to the cash register. We supply scales with official cer-
tification and on request with a connecting cable.

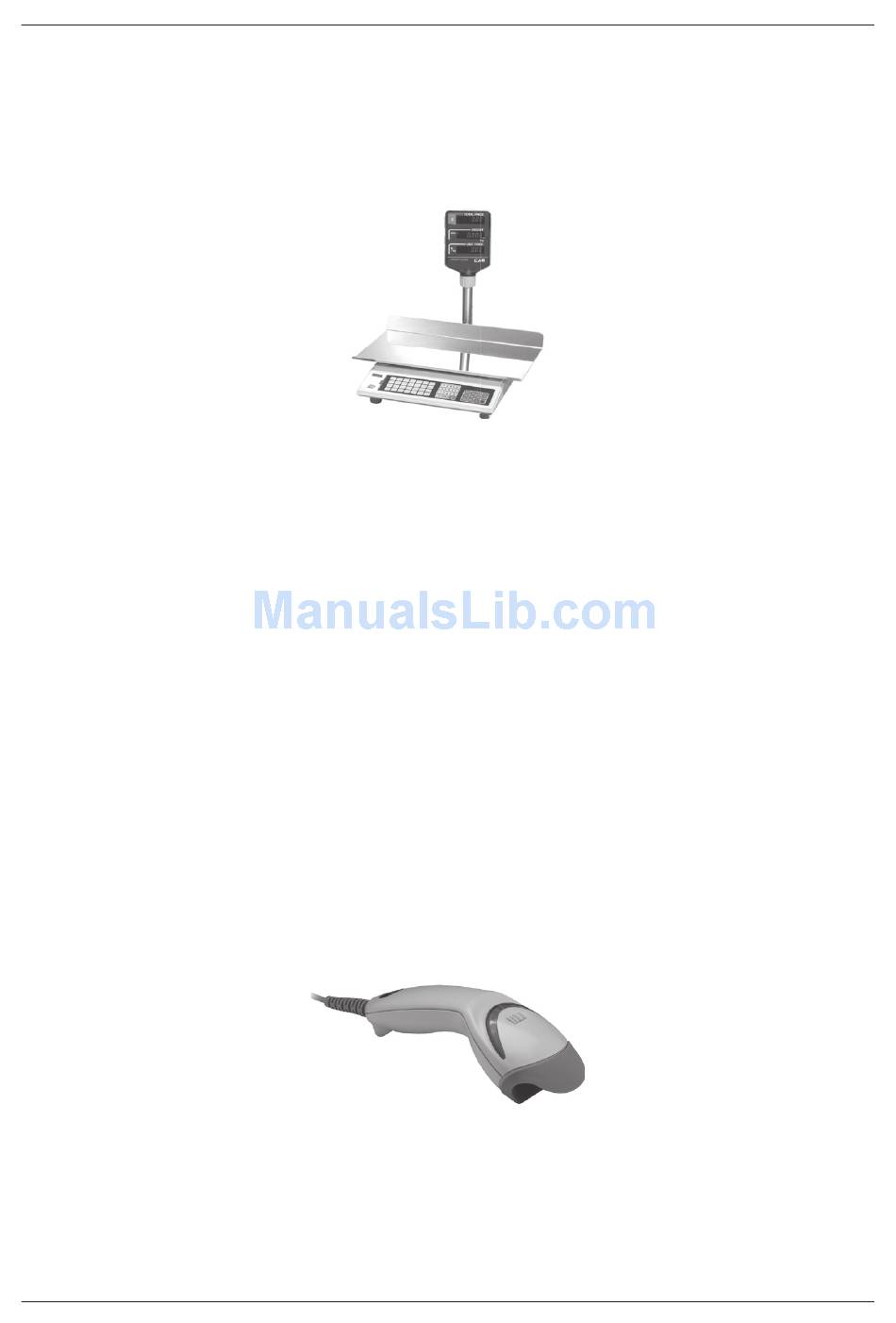

Figure 6.1 - Digital scales
Ask your authorised Euro-50T Mini dealer about the supply and connection of an electronic scale.

Bar-code scanners

The Euro-50T Mini cash register should by optionaly equipped with an interface for connecting a bar-code
scanner. If you decide to use a bar-code scanner, this section offers some recommendations for how to choose
one. In each case we recommend buying and connecting a scanner with the help of your local Euro-50T Mini
dealer.
We connect a bar-code scanner to the cash register via optional a built-in serial RS-232 interface. The bar-
-code scanner must be equipped with the same interface. For a scanner connection, the cash register offers
a single direction +5V adapter for the COM1 (Port1) port; if you are using the COM2 port (Port2) to connect
the scanner, you must use an external connection. Prior to connecting a scanner it is necessary to correctly
program both the scanner and the cash register. We recommend using a scanner with its own connection.
We recommend Metrologic scanners for working with the cash register. Ask your Euro-50T Mini dealer for
more information.

MS-5145 Eclipse

A manual scanner with no holder, which scans upon the pressing of a trigger. The method of scanning is
the LED 650 nm ± 5 nm, scanner speed is 72 lines/s, scanning distance is 140 mm and the minimal width
of the bar is 0.102 mm. RS-232 interface.
Figure 6.2 - MS-5145 Eclipse scanner

Metrologic Orbit MS-7120

An omnidirectional, very fast, laser bar-code scanner. The scanner uses an LED 650 nm ± 5 nm for scan-
ning, the speed of the omnidirectional scanning is 1120 lines/s (20 scanning lines), scanning grid of 5 x 4
parallel lines, scanning distance is 203 mm and the minimum bar width of 0.13 mm.
