Ascom i75 VoWiFi Handset
2 Mark the Services icon. Press "Select"; a list with all created Services is shown.

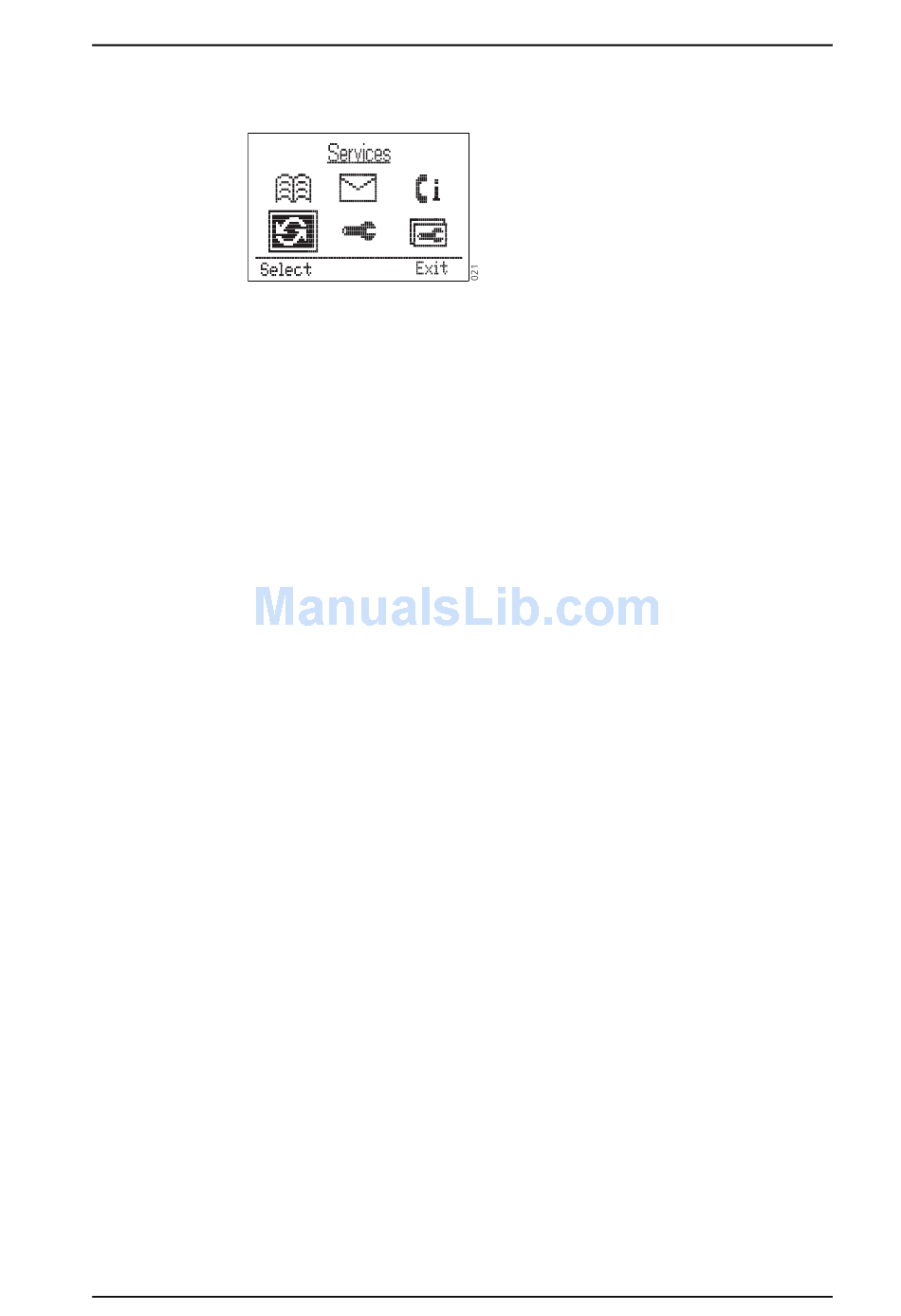

Figure 25. The Services icon is marked.

15.4.1 Activate a Service

1 Mark the Services icon and press "Select".
2 Mark the Service you want to activate. Press "Select"; the service will be activated.
• If predefined data is sent, the text Sending... is shown. The handset will
automatically return to the list and the selected service is marked.
• If data with prefix is to be sent; enter the data and press "Send". The text
Sending... is shown and the handset will automatically return to menu mode.
• If a phone call is to be made the phone number will be dialled.
• If a message is to be sent; enter the message address (may be predefined), press
"Ok", enter message text and press "Send". The text Sending... is shown and
the handset will automatically return to menu mode.

15.4.2 Create a new Service

1 Mark the Services icon and press "Select".
2 Press "Add"; Name:_ will appear. The handset is in text input mode and the name
can now be added.
Note: If services already have been created, you will have to press "Options" first, then
select "Add service" and press "Select".
3 Enter a name that describes the service you want to add, for example, if you want
this service to open a door, then name it Open door.
4 Press "Save"; the new name is marked and added to the list.
5 Select "Function:Not used".
6 Press "Select" to enter functions. The functions available are; Data send, Data with
prefix, Phone call, and Send message.
7 Choose the function you want the service to have and press "Select".
8 Dependant on the function you have chosen, enter data, prefix, phone number, or
message address (if you want a predefined address), and press "Select" to save the
setting. The handset will automatically return to the service and the function is
marked.

15.4.3 Edit a Service

1 Mark the Services icon and press "Select". A list with all Services is shown.
2 Mark the one you want to edit. Press "Options" and select "Change:".
3 Press "Select".
4 Mark "Name:" and press "Edit". Change the name and press "Save".
2008-11-10/ Ver. D
Figure 39.
TD 92319GB
44
