3

Description of the Handset

3.1

Handset Overview

2

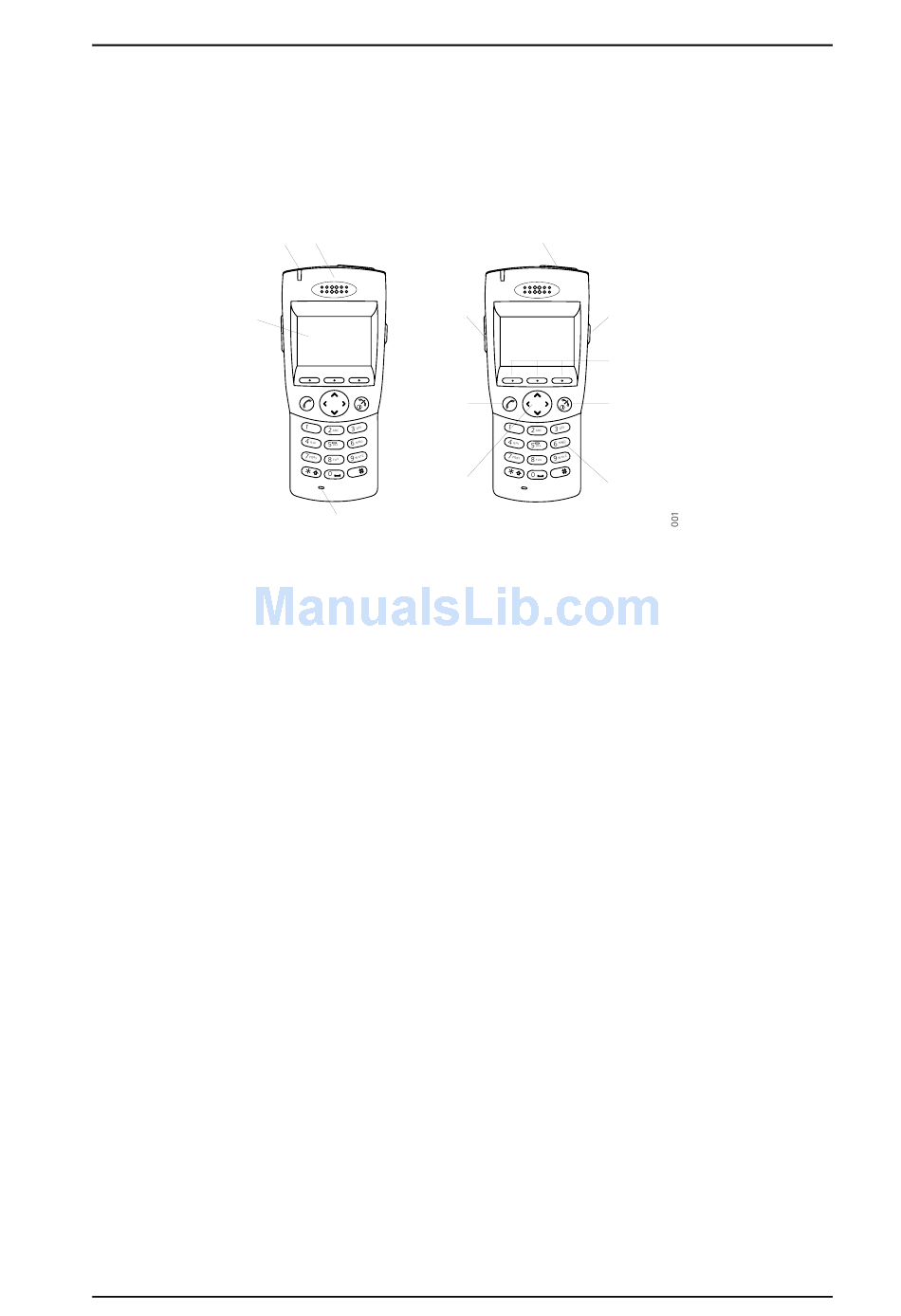

Figure 1. The i75 VoWiFi handset
1 Microphone
2 Display
3 LED
4 Loudspeaker
5 Navigation key
6 Off-hook Key
7 Volume Button
8 Alarm Button
9 Mute Button
10 Soft Keys
11 On/Off and On-hook Key
12 Alpha Numeric Keys
Figure 2.
Case
The case is made of durable PC/ABS plastic.
The i75 Handset has the enclosure protection IP40 and it also fulfils IEC 68-2-32 procedure
1, which makes it drop proof from 1.5 meters onto concrete.
Antenna
The antenna is integrated inside the handset.
2008-11-10/ Ver. D
Figure 1.
Visual- and audio parts
4
3
1
Keys and buttons
8
9
7
10
6
11
5
12
TD 92319GB
7
