Honeywell Vuquest 3310g User Manual

Area-imaging scanner
Hide thumbs Also See for Vuquest 3310g:
Table of Contents

Advertisement

Quick Links

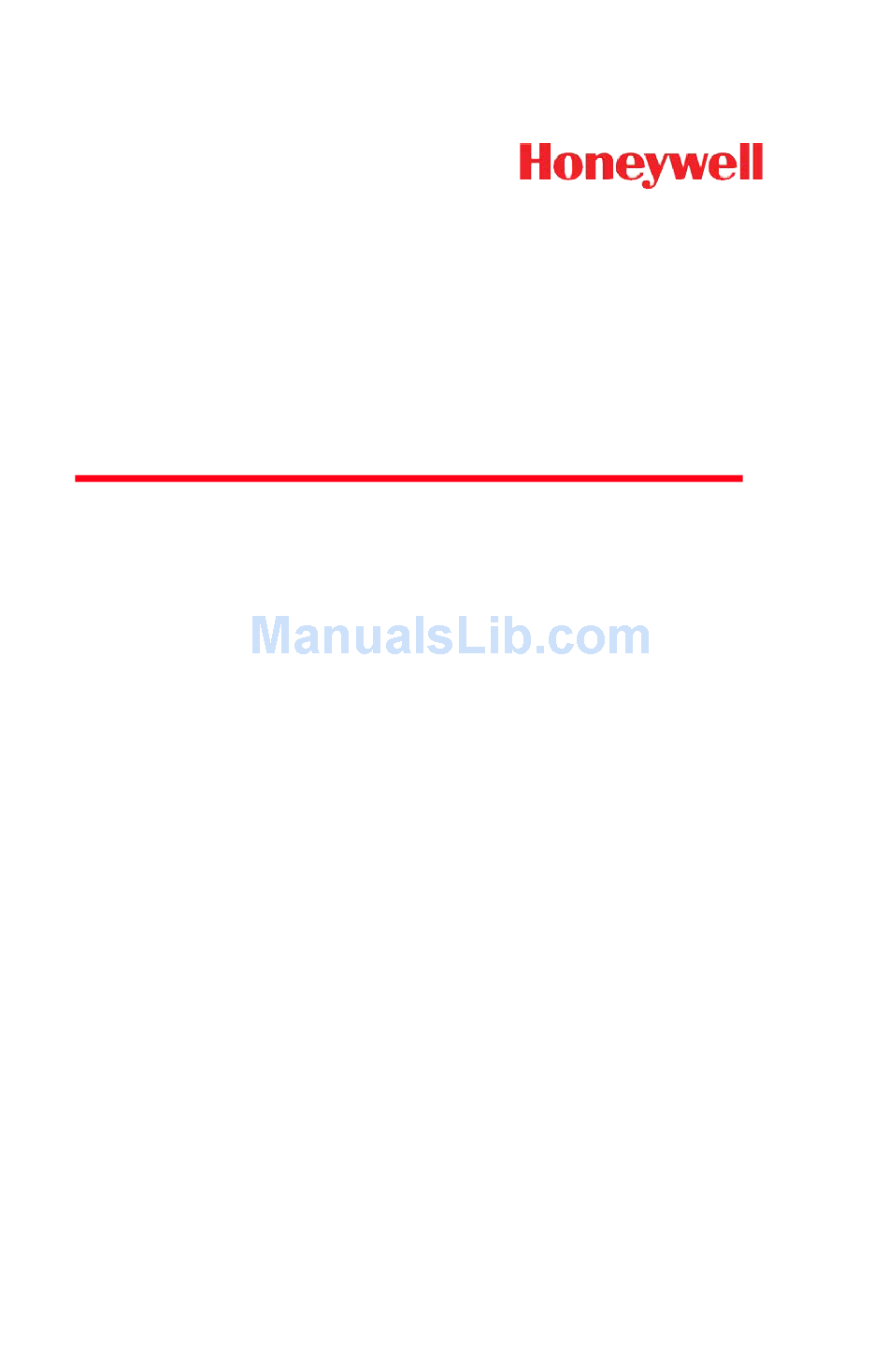

Vuquest™ 3310g
Area-Imaging Scanner
User's Guide
™

Advertisement

Table of Contents
loading

Related Manuals for Honeywell Vuquest 3310g

Summary of Contents for Honeywell Vuquest 3310g

  • Page 1 Vuquest™ 3310g Area-Imaging Scanner User’s Guide ™...
  • Page 2 Disclaimer Honeywell International Inc. (“HII”) reserves the right to make changes in speci- fications and other information contained in this document without prior notice, and the reader should in all cases consult HII to determine whether any such changes have been made. The information in this publication does not repre- sent a commitment on the part of HII.
  • Page 3 The user may find the fol- lowing booklet helpful: “Something About Interference.” This is available at FCC local regional offices. Honeywell is not responsible for any radio or television interference caused by unauthorized modifications of this equip- ment or the substitution or attachment of connecting cables and equipment other than those specified by Honeywell.
  • Page 4 Nijverheidsweg 9-13 5627 BT Eindhoven The Netherlands Honeywell International Inc. shall not be liable for use of our product with equipment (i.e., power supplies, personal computers, etc.) that is not CE marked and does not comply with the Low Voltage Directive.
  • Page 5 South Korea This product meets Korean agency approval. Taiwan If the following label is attached to your product, the product meets Taiwan agency approval: BSMI Standard: CNS13438, CNS14336-1 : CNS13438, CNS14336-1 據 標 準 International LED Safety Statement LEDs have been tested and classified as “EXEMPT RISK GROUP” to the standard: IEC 62471:2006.
  • Page 6 To maintain compliance with standards when not powering the imager with the optional power supply, the power source should be listed and meet applicable requirements for a limited power source or a Class 2 power supply with rating: 5 - 5.2 Vdc, 1.0 A minimum.
  • Page 7 Required Safety Labels Scanner Illumination output Part Number, Serial Number and Revision Information location Compliance Label location...

  • Page 9: Table Of Contents

    Verifone Ruby Terminal Default Settings .... 2-5 ® Gilbarco Terminal Default Settings ..... 2-5 Honeywell Bioptic Aux Port Configuration..... 2-6 © Datalogic™ Magellan Aux Port Configuration ..2-6 NCR Bioptic Aux Port Configuration...... 2-6 Wincor Nixdorf Terminal Default Settings ..... 2-7 Wincor Nixdorf Beetle™...
  • Page 10 Control Character Output...........2-17 Keyboard Modifiers............2-18 RS232 Modifiers ............2-20 RS232 Baud Rate ..........2-20 RS232 Word Length: Data Bits, Stop Bits, and Parity ............2-21 RS232 Receiver Time-Out........2-23 RS232 Handshaking ..........2-23 RS232 Timeout ............ 2-24 XON/XOFF ............2-24 ACK/NAK ............. 2-25 Scanner to Bioptic Communication......2-25 Scanner-Bioptic Packet Mode ......
  • Page 11 LED Illumination - Presentation Mode....3-8 Presentation LED Behavior after Decode ..... 3-8 Presentation Sensitivity ......... 3-9 Presentation Centering.......... 3-9 ® CodeGate ..............3-11 Streaming Presentation™ Mode ....... 3-12 Mobile Phone Read Mode......... 3-12 Hands-Free Time-Out ..........3-12 Character Activation Mode ........3-13 Activation Character ..........
  • Page 12 Video Reverse ............3-28 Working Orientation ...........3-29 Chapter 4 - Data Editing Prefix/Suffix Overview..........4-1 To Add a Prefix or Suffix: ........4-1 To Clear One or All Prefixes or Suffixes ....4-2 To Add a Carriage Return Suffix to All Symbologies..........4-3 Prefix Selections ............4-3 Suffix Selections ............4-4 Function Code Transmit ..........4-4...
  • Page 13 Chapter 6 - External Input / Output External Input .............. 6-1 External Trigger Control ........6-1 External Trigger Polarity........6-1 External Trigger Parameters ......... 6-2 External Output ............6-4 External Illumination Control ......... 6-4 External Illumination Parameters ......6-5 External Illumination Schematic ......6-6 Chapter 7 - Symbologies All Symbologies............
  • Page 14 UPC-E0..............7-29 UPC-E1..............7-31 EAN/JAN-13 ..............7-32 Convert UPC-A to EAN-13 ........7-32 ISBN Translate ............ 7-34 EAN/JAN-8 ..............7-35 MSI ................7-37 GS1 DataBar Omnidirectional ........7-39 GS1 DataBar Limited..........7-39 GS1 DataBar Expanded ..........7-40 Trioptic Code .............7-41 Codablock A ..............7-41 Codablock F...............7-43 PDF417..............7-44 MacroPDF417............7-45 MicroPDF417.............7-45 GS1 Composite Codes ..........7-46 UPC/EAN Version..........
  • Page 15 Chapter 8 - Imaging Commands Single-Use Basis ............8-1 Command Syntax............8-1 Image Snap - IMGSNP ..........8-2 IMGSNP Modifiers..........8-2 Image Ship - IMGSHP..........8-5 IMGSHP Modifiers..........8-5 Intelligent Signature Capture - IMGBOX ....8-14 Signature Capture Optimize ........ 8-14 IMGBOX Modifiers ..........
  • Page 16 Trigger Commands ............11-4 Resetting the Custom Defaults ........11-4 Menu Commands ............11-5 Chapter 12 - Product Specifications 3310 Scanner Product Specifications......12-1 Depth of Field ............12-2 Typical Performance ..........12-2 Mounting Specifications..........12-3 Mounting General Guidelines ........12-4 Standard Cable Pinouts..........12-5 Keyboard Wedge ..........12-5 Serial Output ............
  • Page 17 Unicode Key Maps ............A-13...

  • Page 19: Chapter 1 - Getting Started

    Vuquest™ 3310 area-imaging scanner. Product specifications, dimensions, warranty, and customer support information are also included. Honeywell bar code scanners are factory programmed for the most common terminal and communications settings. If you need to change these settings, programming is accomplished by scanning the bar codes in this guide.

  • Page 20: Connecting With Keyboard Wedge

    The scanner beeps. Verify the scanner operation by scanning a bar code from the Sample Symbols in the back of this manual. The unit defaults to a USB PC Keyboard. Refer to page 2-3 for other USB terminal settings. For additional USB programming and technical information, refer to “USB Application Note,”...

  • Page 21: Connecting With Rs232 Serial Port

    Connecting with RS232 Serial Port Turn off power to the terminal/computer. Connect the appropriate interface cable to the scanner. Note: For the scanner to work properly, you must have the correct cable for your type of terminal/computer. Scanner RS232 Serial Port Connection: Plug the serial connector into the serial port on your computer.

  • Page 22: Reading Techniques

    15° to 18° to prevent unwanted reflection. Menu Bar Code Security Settings Honeywell scanners are programmed by scanning menu bar codes or by send- ing serial commands to the scanner. If you want to restrict the ability to scan menu codes, you can use the Menu Bar Code Security settings.

  • Page 23: Setting Custom Defaults

    Setting Custom Defaults You have the ability to create a set of menu commands as your own, custom defaults. To do so, scan the Set Custom Defaults bar code below before scan- ning the menu commands for your custom defaults. If a menu command requires scanning numeric codes from the back cover, then a Save code, that entire sequence will be saved to your custom defaults.
  • Page 24 1 - 6...

  • Page 25: Chapter 2 - Programming The Interface

    Programming the Interface Introduction This chapter describes how to program your system for the desired interface. Programming the Interface - Plug and Play Plug and Play bar codes provide instant scanner set up for commonly used interfaces. Note: After you scan one of the codes, power cycle the host terminal to have the interface in effect.

  • Page 26: Rs232 Serial Port

    RS232 Serial Port The RS232 Interface bar code is used when connecting to the serial port of a PC or terminal. The following RS232 Interface bar code also pro- grams a carriage return (CR) and a line feed (LF) suffix, baud rate, and data format as indicated below.

  • Page 27: Usb Pc Or Macintosh Keyboard

    Scan the following code to program the scanner to emulate a regular RS232-based COM Port. If you are using a Microsoft® Windows® PC, you will need to download a driver from the Honeywell website (www.honeywellaidc.com). The driver will use the next available COM Port number.

  • Page 28: Remote Mastermind™ For Usb

    CTS/RTS Emulation CTS/RTS Emulation On * CTS/RTS Emulation Off ACK/NAK Mode ACK/NAK Mode On * ACK/NAK Mode Off Remote MasterMind™ for USB When using a USB interface, you may wish to configure your scanner to communicate with Remote MasterMind Scanner Management Software (ReM).

  • Page 29: Verifone ® Ruby Terminal Default Settings

    ® Verifone Ruby Terminal Default Settings Scan the following Plug and Play code to program the scanner for a Veri- fone Ruby terminal. This bar code sets the baud rate to 1200 bps and the data format to 8 data bits, Mark parity bit, 1 stop bit. It also adds a line feed (LF) suffix an programs the following prefixes for each symbology: Symbology Prefix...

  • Page 30: Honeywell Bioptic Aux Port Configuration

    Honeywell Bioptic Aux Port Configuration Scan the following Plug and Play code to program the scanner for a Honey- well bioptic scanner auxiliary port configuration. This bar code sets the baud rate to 38400 bps and the data format to 8 data bits, no parity, 1 stop bit.

  • Page 31: Wincor Nixdorf Terminal Default Settings

    NCR Bioptic Settings Note: If you are having unexpected results with this programming code, scan the Activate Defaults bar code on page 1-5 first, then scan the programming code above. Wincor Nixdorf Terminal Default Settings Scan the following Plug and Play code to program the scanner for a Wincor Nixdorf terminal.

  • Page 32: Wincor Nixdorf Beetle™ Terminal Default Settings

    Wincor Nixdorf Beetle™ Terminal Default Settings Scan the following Plug and Play code to program the scanner for a Wincor Nixdorf Beetle terminal. Communication using 115200bps, no parity bit, 8 data bits and 1 stop bit. The following prefixes are programmed for each symbology: Symbology Prefix...

  • Page 33: Keyboard Country Layout

    Keyboard Country Layout Scan the appropriate country code below to program the keyboard layout for your country or language. As a general rule, the following characters are sup- ported, but need special care for countries other than the United States: @ | $ # { } [ ] = / ‘...
  • Page 34 Keyboard Country (continued) Brazil (MS) Bulgaria (Cyrillic) Bulgaria (Latin) Canada (French legacy) Canada (French) Canada (Multilingual) Croatia Czech Czech (Programmers) Czech (QWERTY) Czech (QWERTZ) Denmark Dutch (Netherlands) 2 - 10...
  • Page 35 Keyboard Country (continued) Estonia Faeroese Finland France Gaelic Germany Greek Greek (220 Latin) Greek (220) Greek (319 Latin) Greek (319) Greek (Latin) Greek (MS) 2 - 11...
  • Page 36 Keyboard Country (continued) Greek (Polytonic) Hebrew Hungarian (101 key) Hungary Iceland Irish Italian (142) Italy Japan ASCII Kazakh Kyrgyz (Cyrillic) Latin America Latvia 2 - 12...
  • Page 37 Keyboard Country (continued) Latvia (QWERTY) Lithuania Lithuania (IBM) Macedonia Malta Mongolian (Cyrillic) Norway Poland Polish (214) Polish (Programmers) Portugal Romania Russia 2 - 13...
  • Page 38 Keyboard Country (continued) Russian (MS) Russian (Typewriter) Serbia (Cyrillic) Serbia (Latin) Slovakia Slovakia (QWERTY) Slovakia (QWERTZ) Slovenia Spain Spanish variation Sweden Switzerland (French) 2 - 14...

  • Page 39: Keyboard Style

    Keyboard Country (continued) Switzerland (German) Tatar Turkey F Turkey Q Ukrainian United Kingdom United Stated (Dvorak right) United States (Dvorak left) United States (Dvorak) United States (International) Uzbek (Cyrillic) Keyboard Style This programs keyboard styles, such as Caps Lock and Shift Lock. If you have used Keyboard Conversion settings, they will override any of the following Key-...
  • Page 40 Regular is used when you normally have the Caps Lock key off. * Regular Caps Lock is used when you normally have the Caps Lock key on. Caps Lock Shift Lock is used when you normally have the Shift Lock key on (not common to U.S.

  • Page 41: Keyboard Conversion

    Emulate External Keyboard should be scanned if you do not have an external keyboard (IBM AT or equivalent). Emulate External Keyboard Note: After scanning the Emulate External Keyboard bar code, you must power cycle your computer. Keyboard Conversion Alphabetic keyboard characters can be forced to be all upper case or all lower- case.

  • Page 42: Keyboard Modifiers

    Default = Off. Control Character Output On * Control Character Output Off Keyboard Modifiers This modifies special keyboard features, such as CTRL+ ASCII codes and Turbo Mode. Control + X (Control + ASCII) Mode On: The scanner sends key combina- tions for ASCII control characters for values 00-1F.
  • Page 43 Turbo Mode: The scanner sends characters to a terminal faster. If the terminal drops characters, do not use Turbo Mode. Default = Off Turbo Mode On * Turbo Mode Off Numeric Keypad Mode: Sends numeric characters as if entered from a numeric keypad.

  • Page 44: Rs232 Modifiers

    RS232 Modifiers RS232 Baud Rate Baud Rate sends the data from the scanner to the terminal at the specified rate. The host terminal must be set for the same baud rate as the scanner. Default = 115,200. 1200 2400 4800 9600 19200 2 - 20...

  • Page 45: Rs232 Word Length: Data Bits, Stop Bits, And Parity

    38400 57600 * 115,200 RS232 Word Length: Data Bits, Stop Bits, and Parity Data Bits sets the word length at 7 or 8 bits of data per character. If an application requires only ASCII Hex characters 0 through 7F decimal (text, digits, and punctuation), select 7 data bits.
  • Page 46 7 Data, 2 Stop, Parity Even 7 Data, 2 Stop Parity None 7 Data, 2 Stop, Parity Odd 8 Data, 1 Stop, Parity Even * 8 Data, 1 Stop, Parity None 8 Data, 1 Stop, Parity Odd 7 Data, 1 Stop, Parity Space 7 Data, 2 Stop, Parity Space 8 Data, 1 Stop, Parity Space 2 - 22...

  • Page 47: Rs232 Receiver Time-Out

    7 Data, 1 Stop, Parity Mark 7 Data, 2 Stop, Parity Mark 8 Data, 1 Stop, Parity Mark RS232 Receiver Time-Out The unit stays awake to receive data until the RS232 Receiver Time-Out expires. A manual or serial trigger resets the time-out. When an RS232 receiver is sleeping, a character may be sent to wake up the receiver and reset the time-out.

  • Page 48: Rs232 Timeout

    Flow Control with Timeout: The scanner asserts RTS when it has data to send and waits for a delay (see RS232 Timeout on page 2-24) for CTS to be asserted by the host. If the delay time expires and CTS is not asserted, the device transmit buffer is cleared and scanning may resume.

  • Page 49: Ack/Nak

    ACK/NAK On * ACK/NAK Off Scanner to Bioptic Communication The following settings are used to set up communication between Honeywell scanners and bioptic scanners. Note: The scanner’s baud rate must be set to 38400 and the RS232 timeout must be set to 3000 in order to communicate with a bioptic scanner. See...

  • Page 50: Scanner-Bioptic Packet Mode

    Scanner-Bioptic Packet Mode Packet Mode On must be scanned to set the scanner’s format so it is com- patible with a bioptic scanner. Default = Packet Mode Off. * Packet Mode Off Packet Mode On Scanner-Bioptic ACK/NAK Mode Bioptic ACK/NAK On must be scanned so the scanner will wait for an ACK or NAK from a bioptic scanner after each packet is sent.

  • Page 51: Chapter 3 - Input/Output Settings

    Input/Output Settings Power Up Beeper The scanner can be programmed to beep when it’s powered up. Scan the Off bar code(s) if you don’t want a power up beep. Default = Power Up Beeper On - Scanner. Power Up Beeper Off - Scanner * Power Up Beeper On - Scanner...

  • Page 52: Good Read And Error Indicators

    Good Read and Error Indicators Beeper – Good Read The beeper may be programmed On or Off in response to a good read. Turning this option off only turns off the beeper response to a good read indication. All error and menu beeps are still audible. Default = Beeper - Good Read On.

  • Page 53: Beeper Pitch - Good Read

    Beeper Pitch – Good Read The beeper pitch codes modify the pitch (frequency) of the beep the scan- ner emits on a good read. Default = Medium. Low (1600 Hz) * Medium (2700 Hz) High (4200 Hz) Beeper Pitch – Error The beeper pitch codes modify the pitch (frequency) of the sound the scan- ner emits when there is a bad read or error.

  • Page 54: Led - Good Read

    LED – Good Read The LED indicator can be programmed On or Off in response to a good read. Default = On. * LED - Good Read On LED - Good Read Off Number of Beeps – Good Read The number of beeps of a good read can be programmed from 1 - 9. The same number of beeps will be applied to the beeper and LED in response to a good read.

  • Page 55: Good Read Delay

    Good Read Delay This sets the minimum amount of time before the scanner can read another bar code. Default = 0 ms (No Delay). * No Delay Short Delay (500 ms) Medium Delay (1,000 ms) Long Delay (1,500 ms) User-Specified Good Read Delay If you want to set your own length for the good read delay, scan the bar code below, then set the delay (from 0 - 30,000 milliseconds) by scanning digits from the inside back cover, then scanning Save.

  • Page 56: Led Illumination - Manual Trigger

    less range than Normal mode. Enhanced mode is best used when you require a very fast scan speed and don’t require a long working range. Default = Man- ual Trigger-Normal. * Manual Trigger - Normal Manual Trigger - Enhanced LED Illumination - Manual Trigger If you wish to set the illumination LED brightness, scan one of the bar codes below.

  • Page 57: Read Time-Out

    mand is sent. The scanner can also be set to turn itself off after a specified time has elapsed (see Read Time-Out, which follows). Read Time-Out Use this selection to set a time-out (in milliseconds) of the scanner’s button when using serial commands to trigger the scanner. Once the scanner has timed out, you can activate the scanner either by pressing the button or using a serial trigger command.

  • Page 58: Led Illumination - Presentation Mode

    LED Illumination - Presentation Mode If you wish to set the illumination LED brightness, scan one of the bar codes below. This sets the LED illumination for the scanner when it is in Presentation Mode. (If the scanner is triggered manually, the LED illumina- tion will switch to the setting for a manual trigger.

  • Page 59: Presentation Sensitivity

    Presentation Sensitivity Presentation Sensitivity is a numeric range that increases or decreases the scanner's reaction time to bar code presentation. To set the sensitivity, scan the Sensitivity bar code, then scan the degree of sensitivity (from 0- 20) from the inside back cover, and Save. 0 is the most sensitive setting, and 20 is the least sensitive.
  • Page 60 In the example below, the white box is the centering window. The centering window has been set to 20% left, 30% right, 8% top, and 25% bottom. Since Bar Code 1 passes through the centering window, it will be read. Bar Code 2 does not pass through the centering window, so it will not be read.

  • Page 61: Codegate

    Scan Presentation Centering On, then scan one of the following bar codes to change the top, bottom, left, or right of the centering window. Then scan the percent you want to shift the centering window using digits on the inside back cover of this manual. Scan Save. Default Presentation Centering = 40% for Top and Left, 60% for Bottom and Right.

  • Page 62: Streaming Presentation™ Mode

    Streaming Presentation™ Mode When in Streaming Presentation mode, the scanner’s aimer goes out after a short time, but the scan illumination remains on all the time to continuously search for bar codes. Two modes are available, Normal and Enhanced. Nor- mal mode offers good scan speed and the longest working ranges (depth of field).

  • Page 63: Character Activation Mode

    trigger mode by setting the Hands-Free Time-Out. Once the time-out value is reached, (if there have been no further button presses) the scanner reverts to the original hands-free mode. Scan the Hands-Free Time-Out bar code, then scan the time-out duration (from 0-300,000 milliseconds) from the inside back cover, and Save.

  • Page 64: Character Activation Laser Timeout

    Character Activation Laser Timeout You can set a timeout for the length of time the laser remains on and attempting to decode bar codes when using Character Activation Mode. Set the length (in milliseconds) for a timeout by scanning the following bar code, then setting the timeout (from 1-65535 milliseconds) by scanning dig- its from the Programming...

  • Page 65: Character Activation Timeout

    * End Character Activation After Good Read Character Activation Timeout You can set a timeout for the length of time the illumination remains on and attempting to decode bar codes when using Character Activation Mode. Set the length (in milliseconds) for a timeout by scanning the following bar code, then setting the timeout (from 1-300,000 milliseconds) by scanning digits from the Programming Chart...

  • Page 66: User-Specified Reread Delay

    Use shorter delays in applications where repetitive bar code scanning is required. Reread Delay only works when in a Presentation Mode (see page 3- 7). Default = Medium. Short (500 ms) * Medium (750 ms) Long (1000 ms) Extra Long (2000 ms) User-Specified Reread Delay If you want to set your own length for the reread delay, scan the bar code below, then set the delay (from 0-65,535 milliseconds) by scanning digits from the...

  • Page 67: Illumination Lights

    Short (1000ms) Medium (2000ms) Long (3000ms) Extra Long (4000ms) Illumination Lights If you want the illumination lights on while reading a bar code, scan the Lights On bar code, below. However, if you want to turn just the lights off, scan the Lights Off bar code.

  • Page 68: Aimer Delay

    Aimer Delay The aimer delay allows a delay time for the operator to aim the scanner before the picture is taken. Use these codes to set the time between when the button is pushed and when the picture is taken. During the delay time, the aiming light will appear, but the LEDs won’t turn on until the delay time is over.

  • Page 69: Centering

    Centering Use Centering to narrow the scanner’s field of view to make sure that when the scanner is hand-held, it reads only those bar codes intended by the user. For instance, if multiple codes are placed closely together, centering will insure that only the desired codes are read.
  • Page 70 In the example below, the white box is the centering window. The centering window has been set to 20% left, 30% right, 8% top, and 25% bottom. Since Bar Code 1 passes through the centering window, it will be read. Bar Code 2 does not pass through the centering window, so it will not be read.

  • Page 71: Preferred Symbology

    Scan Centering On, then scan one of the following bar codes to change the top, bottom, left, or right of the centering window. Then scan the percent you want to shift the centering window using digits on the inside back cover of this manual.

  • Page 72: High Priority Symbology

    Scan a bar code below to enable or disable Preferred Symbology. Default = Preferred Symbology Off. Preferred Symbology On * Preferred Symbology Off High Priority Symbology To specify the high priority symbology, scan the High Priority Symbology bar code below. On the Symbology Charts on page A-1, find the symbol- ogy you want to set as high priority.

  • Page 73: Preferred Symbology Default

    bar code has been encountered. Scan the bar code below, then set the delay (from 1-3,000 milliseconds) by scanning digits from the inside back cover, then scanning Save. Default = 500 ms. Preferred Symbology Time-out Preferred Symbology Default Scan the bar code below to set all Preferred Symbology entries to their default values.

  • Page 74: Other Programming Selections

    Programming Chart. (Note: 50 characters is entered as 0050. 9999 is a universal number, indicating all lengths.) When calculating the length, you must count any programmed prefixes, suffixes, or formatted characters as part of the length (unless using 9999). 4. Character Match Sequences On the ASCII Conversion Chart (Code Page 1252), page A-4, find the...
  • Page 75 termination string for first code code identifier for Code 128 9999 code length that must match for Code 128, 9999 = all lengths start character match for Code 128, 42h = “B” termination string for second code code identifier for Code 93 9999 code length that must match for Code 93, 9999 = all lengths start character match for Code 93, 43h = “C”...

  • Page 76: Output Sequence Editor

    Output Sequence Editor Enter Sequence Default Sequence Partial Sequence If an output sequence operation is terminated before all your output sequence criteria are met, the bar code data acquired to that point is a “partial sequence.” Scan Discard Partial Sequence to discard partial sequences when the output sequence operation is terminated before completion.

  • Page 77: Multiple Symbols

    When the output sequence is Off, the bar code data is output to the host as the scanner decodes it. Default = Off. Note: This selection is unavailable when the Multiple Symbols Selection is turned on. Required On/Not Required *Off Multiple Symbols When this programming selection is turned On, it allows you to read multiple symbols with a single press of the scanner’s button.

  • Page 78: No Read

    No Read With No Read turned On, the scanner notifies you if a code cannot be read. If using an EZConfig Tool Scan Data Window (see page 10-3), an “NR” appears when a code cannot be read. If No Read is turned Off, the “NR” will not appear. Default = Off.

  • Page 79: Working Orientation

    Working Orientation Some bar codes are direction-sensitive. For example, KIX codes and OCR can misread when scanned sideways or upside down. Use the working orientation settings if your direction-sensitive codes will not usually be presented upright to the scanner. Default = Upright. Upright: Vertical, Top to Bottom: (Rotate CW 90°)
  • Page 80 3 - 30...

  • Page 81: Chapter 4 - Data Editing

    Data Editing Prefix/Suffix Overview When a bar code is scanned, additional information is sent to the host computer along with the bar code data. This group of bar code data and additional, user-defined data is called a “message string.” The selections in this section are used to build the user-defined data into the message string.

  • Page 82: To Clear One Or All Prefixes Or Suffixes

    symbology to which you want to apply the prefix or suffix. For example, for Code 128, Code ID is “j” and Hex ID is “6A”. Step 3. Scan the 2 hex digits from the Programming Chart inside the back cover of this manual or scan 9, 9 for all symbologies. Step 4.

  • Page 83: To Add A Carriage Return Suffix To All Symbologies

    Step 1. Scan the Clear One Prefix or Clear One Suffix symbol. Step 2. Determine the 2 digit Hex value from the Symbology Chart (included in the Symbology Charts beginning on page A-1) for the symbology from which you want to clear the prefix or suffix. Step 3.

  • Page 84: Suffix Selections

    Suffix Selections Add Suffix Clear One Suffix Clear All Suffixes Function Code Transmit When this selection is enabled and function codes are contained within the scanned data, the scanner transmits the function code to the terminal. Charts of these function codes are provided in Supported Interface Keys starting on page...

  • Page 85: Intercharacter, Interfunction, And Intermessage Delays

    Scan the following bar code to set the communication check character type. Default = None. * None LRC Starts on 1st Character LRC Starts on 2nd Character Intercharacter, Interfunction, and Intermessage Delays Some terminals drop information (characters) if data comes through too quickly. Intercharacter, interfunction, and intermessage delays slow the transmission of data, increasing data integrity.

  • Page 86: User Specified Intercharacter Delay

    To remove this delay, scan the Intercharacter Delay bar code, then set the number of delays to 0. Scan the Save bar code using the Programming Chart inside the back cover of this manual. Note: Intercharacter delays are not supported in USB serial. User Specified Intercharacter Delay An intercharacter delay of up to 5000 milliseconds (in 5ms increments) may be placed after the transmission of a particular character of scanned data.

  • Page 87: Intermessage Delay

    To remove this delay, scan the Interfunction Delay bar code, then set the number of delays to 0. Scan the Save bar code using the Programming Chart inside the back cover of this manual. Intermessage Delay An intermessage delay of up to 5000 milliseconds (in 5ms increments) may be placed between each scan transmission.
  • Page 88 4 - 8...

  • Page 89: Chapter 5 - Data Formatting

    Data Formatting Data Format Editor Introduction You may use the Data Format Editor to change the scanner’s output. For exam- ple, you can use the Data Format Editor to insert characters at certain points in bar code data as it is scanned. The selections in the following pages are used only if you wish to alter the output.
  • Page 90 alternate format, scan 1, 2, or 3, depending on which alternate format you are programming. (See Primary/Alternate Data Formats on page 5-18 for further information.) Step 3. Terminal Type Refer to Terminal ID Table (page 5-4) and locate the Terminal ID number for your PC.

  • Page 91: Other Programming Selections

    Enter Data Format Save Discard Other Programming Selections Clear One Data Format This deletes one data format for one symbology. If you are clearing the primary format, scan 0 from the Programming Chart inside the back cover of this manual. If you are clearing an alternate format, scan 1, 2, or 3, depending on the format you are clearing.

  • Page 92: Terminal Id Table

    Terminal ID Table Terminal Model(s) Terminal ID PC keyboard (HID) Mac Keyboard PC Keyboard (Japanese) Serial (COM driver required) HID POS USB SurePOS Handheld USB SurePOS Tabletop Serial RS232 TTL RS232 True RS485 (IBM-HHBCR 1+2, 46xx) Keyboard PS2 compatibles AT compatibles Data Format Editor Commands When working with the Data Format Editor, a virtual cursor is moved along your input data string.
  • Page 93 F2 Example: Send a number of characters Send the first 10 characters from the bar code above, followed by a carriage return. Command string: F2100D F2 is the “Send a number of characters” command 10 is the number of characters to send 0D is the hex value for a CR The data is output as: 1234567890 F2 and F1 Example: Split characters into 2 lines...
  • Page 94 44 is the hex value for a 'D” 0D is the hex value for a CR The data is output as: 1234567890ABC <CR> Send all characters up to a string B9 Include in the output message all characters from the input message, starting with the character at the current cursor position and continuing to, but not including, the search string “s...s.”...
  • Page 95 E9 and F4 Example: Send all but the last characters, followed by 2 tabs Send all characters except for the last 8 from the bar code above, fol- lowed by 2 tabs. Command string: E908F40902 E9 is the “Send all but the last characters” command 08 is the number of characters at the end to ignore F4 is the “Insert a character multiple times”...
  • Page 96 The data is output as: 1234567890**ABCDEFGHIJ <CR> Insert symbology name B3 Insert the name of the bar code’s symbology in the output message, without moving the cursor. Only symbologies with a Honeywell ID are included (see Symbology Charts on page A-1). Refer to the...

  • Page 97: Move Commands

    Insert key strokes B5 Insert a key stroke or combination of key strokes. Key strokes are dependent on your keyboard (see Unicode Key Maps on page A-13). Any key can be inserted, including arrows and functions. Syntax = B5xxssnn where xx is the number of keys pressed (without key modifiers), ss is the key modifier from the table below, and nn is the key number from the Unicode Key...

  • Page 98: Search Commands

    F1 is the “Send all characters” command 0D is the hex value for a CR The data is output as: 4567890ABCDEFGHIJ <CR> Move the cursor backward a number of characters F6 Move the cursor back “nn” characters from current cursor position. Syntax = F6nn where nn is the numeric value (00-99) for the number of characters the cursor should be moved back.
  • Page 99 F8 Example: Send bar code data that starts after a particular character Search for the letter “D” in bar codes and send all the data that follows, including the “D.” Using the bar code above: Command string: F844F10D F8 is the “Search forward for a character” command 44 is the hex value for “D”...
  • Page 100 48 is the hex value for “H” F1 is the “Send all characters” command 0D is the hex value for a CR The data is output as: FGHIJ <CR> Search backward for a string B1 Search backward for “s” string from the current cursor position, leaving cursor pointing to “s”...

  • Page 101: Miscellaneous Commands

    Miscellaneous Commands Suppress characters FB Suppress all occurrences of up to 15 different characters, starting at the current cursor position, as the cursor is advanced by other commands. When the FC command is encountered, the suppress function is terminated. The cursor is not moved by the FB command. Syntax = FBnnxxyy .
  • Page 102 If the bar code has characters that the host application does not want included, you can use the E4 command to replace those characters with something else. In this example, you will replace the zeroes in the bar code above with carriage returns. Command string: E402300DF10D E4 is the “Replace characters”...
  • Page 103 EC is the “Check for a number” command F1 is the “Send all characters” command 0D is the hex value for a CR If this bar code is read, the next data format, if there is one, will be used on the data. If there is no other format, the format fails and the raw data is output as AB1234.

  • Page 104: Data Formatter

    Discard Data B8 Discards types of data. For example, you may want to discard Code 128 bar codes that begin with the letter A. In step 4 (page 5-2), select 6A (for Code 128), and in step 5, select 9999 (for all lengths). Enter FE41B8 to compare and discard Code 128 bar codes that begin with the letter A.

  • Page 105: Data Format Non-Match Error Tone

    generates an error tone. If you wish to process this type of bar code without generating an error tone, see Data Format Non-Match Error Tone. Choose one of the following options. Default = Data Formatter On, Not Required, Keep Prefix/Suffix. * Data Formatter On, Not Required, Keep Prefix/Suffix...

  • Page 106: Primary/Alternate Data Formats

    Primary/Alternate Data Formats You can save up to four data formats, and switch between these formats. Your primary data format is saved under 0. Your other three formats are saved under 1, 2, and 3. To set your device to use one of these formats, scan one of the bar codes below.
  • Page 107 For example, you may have set your device to the data format you saved as Data Format 3. You can switch to Data Format 1 for a single button press by scanning the Single Scan-Data Format 1 bar code below. The next bar code that is scanned uses Data Format 1, then reverts back to Data Format Single Scan-Primary Data Format...
  • Page 108 5 - 20...

  • Page 109: External Input

    External Input / Output The Vuquest 3310 scanner can be integrated with a variety of third party devices. The External Trigger and Illumination Controls can be configured using the bar codes in this chapter. These controls offer simple trigger signals. An External I/O license and cable are required;...

  • Page 110: External Trigger Parameters

    External Trigger Parameters Absolute Maximum The input is protected by an input protection diode on the ground side. Low Value: -0.5 Volts The input voltage can be Maximum Input Voltage High Value: +5.5 Volts below ground provided it is current limited below the value shown on the next line of this table.
  • Page 111 External Trigger Schematic 6 - 3...

  • Page 112: External Output

    External Output External Illumination Control The External Illumination Control allows the third party device to use exter- nal illumination, supplemental to the illumination from the scanner. If the illumination will be provided by the third party device, scan the External Illumination Control On bar code.

  • Page 113: External Illumination Parameters

    External Illumination Parameters Absolute Maximum This allows a pull-up to be Maximum voltage on out- connected to this line provided put pin with scanner pow- High Value: 6 Volts it does not exceed the current ered down. on the next line of this table while operating.

  • Page 114: External Illumination Schematic

    External Illumination Schematic 6 - 6...
  • Page 115 Symbologies This programming section contains the following menu selections. Refer to Chapter 11 for settings and defaults. • All Symbologies • Interleaved 2 of 5 • Aztec Code • Korea Post • China Post (Hong Kong 2 of 5) • Matrix 2 of 5 •...

  • Page 116: All Symbologies

    All Symbologies If you want to decode all the symbologies allowable for your scanner, scan the All Symbologies On code. If on the other hand, you want to decode only a particular symbology, scan All Symbologies Off followed by the On symbol for that particular symbology.

  • Page 117: Codabar

    Codabar <Default All Codabar Settings> Codabar On/Off * On Codabar Start/Stop Characters Start/Stop characters identify the leading and trailing ends of the bar code. You may either transmit, or not transmit Start/Stop characters. Default = Don’t Transmit. Transmit * Don’t Transmit Codabar Check Character Codabar check characters are created using different “modulos.”...

  • Page 118: Codabar Concatenation

    When Check Character is set to Validate, but Don’t Transmit, the unit will only read Codabar bar codes printed with a check character, but will not transmit the check character with the scanned data. * No Check Character Validate Modulo 16, but Don’t Transmit Validate Modulo 16 and Transmit...

  • Page 119: Codabar Message Length

    Codabar Message Length Scan the bar codes below to change the message length. Refer to Message Length Description (page 7-2) for additional information. Mini- mum and Maximum lengths = 2-60. Minimum Default = 4, Maximum Default = 60. Minimum Message Length Maximum Message Length 7 - 5...

  • Page 120: Code 39

    Code 39 < Default All Code 39 Settings > Code 39 On/Off * On Code 39 Start/Stop Characters Start/Stop characters identify the leading and trailing ends of the bar code. You may either transmit, or not transmit Start/Stop characters. Default = Don’t Transmit.

  • Page 121: Code 39 Message Length

    When Check Character is set to Validate and Transmit, the scanner only reads Code 39 bar codes printed with a check character, and will transmit this character at the end of the scanned data. Default = No Check Charac- ter. * No Check Character Validate, but Don’t Transmit Validate and Transmit...

  • Page 122: Code 32 Pharmaceutical (Paraf)

    acter(s), it buffers Code 39 bar codes until it reads a Code 39 bar code that does not have the append trigger. The data is then transmitted in the order in which the bar codes were read (FIFO). Default = Off. * Off Code 32 Pharmaceutical (PARAF) Code 32 Pharmaceutical is a form of the Code 39 symbology used by Ital-...

  • Page 123: Full Ascii

    Full ASCII If Full ASCII Code 39 decoding is enabled, certain character pairs within the bar code symbol will be interpreted as a single character. For example: $V will be decoded as the ASCII character SYN, and /C will be decoded as the ASCII character #.

  • Page 124: Interleaved 2 Of 5

    10), and scan the value and the Save bar code from the Programming Chart on the inside the back cover of this manual. The data characters should then appear properly. Code 39 Code Page Interleaved 2 of 5 < Default All Interleaved 2 of 5 Settings > Interleaved 2 of 5 On/Off * On Check Digit...

  • Page 125: Interleaved 2 Of 5 Message Length

    When Check Digit is set to Validate and Transmit, the scanner only reads Interleaved 2 of 5 bar codes printed with a check digit, and will transmit this digit at the end of the scanned data. Default = No Check Digit. * No Check Digit Validate, but Don’t Transmit Validate and Transmit...

  • Page 126: Nec 2 Of 5

    NEC 2 of 5 < Default All NEC 2 of 5 Settings > NEC 2 of 5 On/Off * On Check Digit No Check Digit indicates that the scanner reads and transmits bar code data with or without a check digit. When Check Digit is set to Validate, but Don’t Transmit, the unit only reads NEC 2 of 5 bar codes printed with a check digit, but will not transmit the check digit with the scanned data.
  • Page 127 NEC 2 of 5 Message Length Scan the bar codes below to change the message length. Refer to Message Length Description (page 7-2) for additional information. Mini- mum and Maximum lengths = 2-80. Minimum Default = 4, Maximum Default = 80. Minimum Message Length Maximum Message Length 7 - 13...

  • Page 128: Code 93

    Code 93 < Default All Code 93 Settings > Code 93 On/Off * On Code 93 Message Length Scan the bar codes below to change the message length. Refer to Message Length Description (page 7-2) for additional information. Mini- mum and Maximum lengths = 0-80. Minimum Default = 0, Maximum Default = 80.

  • Page 129: Code 93 Code Page

    which the bar codes are read, deleting the first space from each. The scanner transmits the appended data when it reads a Code 93 bar code that starts with a character other than a space. Default = Off. * Off Code 93 Code Page Code pages define the mapping of character codes to characters.

  • Page 130: Straight 2 Of 5 Industrial (Three-Bar Start/Stop)

    Straight 2 of 5 Industrial (three-bar start/stop) <Default All Straight 2 of 5 Industrial Settings> Straight 2 of 5 Industrial On/Off * Off Straight 2 of 5 Industrial Message Length Scan the bar codes below to change the message length. Refer to Message Length Description (page 7-2) for additional information.

  • Page 131: Straight 2 Of 5 Iata (Two-Bar Start/Stop)

    Straight 2 of 5 IATA (two-bar start/stop) <Default All Straight 2 of 5 IATA Settings> Straight 2 of 5 IATA On/Off * Off Straight 2 of 5 IATA Message Length Scan the bar codes below to change the message length. Refer to Message Length Description (page 7-2) for additional information.

  • Page 132: Matrix 2 Of 5

    Matrix 2 of 5 <Default All Matrix 2 of 5 Settings> Matrix 2 of 5 On/Off * Off Matrix 2 of 5 Message Length Scan the bar codes below to change the message length. Refer to Message Length Description (page 7-2) for additional information. Mini- mum and Maximum lengths = 1-80.

  • Page 133: Code 11

    Code 11 <Default All Code 11 Settings> Code 11 On/Off * Off Check Digits Required This option sets whether 1 or 2 check digits are required with Code 11 bar codes. Default = Two Check Digits. One Check Digit * Two Check Digits 7 - 19...

  • Page 134: Code 128

    Code 11 Message Length Scan the bar codes below to change the message length. Refer to Message Length Description (page 7-2) for additional information. Mini- mum and Maximum lengths = 1-80. Minimum Default = 4, Maximum Default = 80. Minimum Message Length Maximum Message Length Code 128 <Default All Code 128 Settings>...

  • Page 135: Code 128 Message Length

    that supports concatenation of neighboring symbols, and 4) the standard layout for bar codes on a blood product label. Use the bar codes below to turn concatenation on or off. Default =Off. * Off Code 128 Message Length Scan the bar codes below to change the message length. Refer to Message Length Description (page 7-2) for additional information.

  • Page 136: Code 128 Code Page

    Code 128 Code Page Code pages define the mapping of character codes to characters. If the data received does not display with the proper characters, it may be because the bar code being scanned was created using a code page that is different from the one the host program is expecting.

  • Page 137: Gs1-128

    GS1-128 <Default All GS1-128 Settings> GS1-128 On/Off * On GS1-128 Message Length Scan the bar codes below to change the message length. Refer to Message Length Description (page 7-2) for additional information. Mini- mum and Maximum lengths = 1-80. Minimum Default = 1, Maximum Default = 80.

  • Page 138: Telepen

    Telepen <Default All Telepen Settings> Telepen On/Off * Off Telepen Output Using AIM Telepen Output, the scanner reads symbols with start/stop pat- tern 1 and decodes them as standard full ASCII (start/stop pattern 1). When Original Telepen Output is selected, the scanner reads symbols with start/stop pattern 1 and decodes them as compressed numeric with optional full ASCII (start/stop pattern 2).

  • Page 139: Upc-A

    Telepen Message Length Scan the bar codes below to change the message length. Refer to Message Length Description (page 7-2) for additional information. Mini- mum and Maximum lengths = 1-60. Minimum Default = 1, Maximum Default = 60. Minimum Message Length Maximum Message Length UPC-A <Default All UPC-A Settings>...
  • Page 140 UPC-A Check Digit This selection allows you to specify whether the check digit should be transmitted at the end of the scanned data or not. Default = On. * On UPC-A Number System The numeric system digit of a U.P.C. symbol is normally transmitted at the beginning of the scanned data, but the unit can be programmed so it will not transmit it.

  • Page 141: Upc-A/Ean-13

    UPC-A Addenda Required When Required is scanned, the scanner will only read UPC-A bar codes that have addenda. You must then turn on a 2 or 5 digit addenda listed on page 7-26. Default = Not Required. Required * Not Required UPC-A Addenda Separator When this feature is on, there is a space between the data from the bar code and the data from the addenda.

  • Page 142: Coupon Gs1 Databar Output

    Default = Off. * Off Allow Concatenation Require Concatenation Coupon GS1 DataBar Output If you scan coupons that have both UPC and GS1 DataBar codes, you may wish to scan and output only the data from the GS1 DataBar code. Scan the GS1 Output On code below to scan and output only the GS1 DataBar code data.

  • Page 143: Upc-E0

    UPC-E0 <Default All UPC-E Settings> UPC-E0 On/Off Most U.P.C. bar codes lead with the 0 number system. To read these codes, use the UPC-E0 On selection. If you need to read codes that lead with the 1 number system, use UPC-E1 (page 7-31).
  • Page 144 UPC-E0 Addenda Required When Required is scanned, the scanner will only read UPC-E bar codes that have addenda. Default = Not Required. Required * Not Required UPC-E0 Addenda Separator When this feature is On, there is a space between the data from the bar code and the data from the addenda.

  • Page 145: Upc-E1

    UPC-E0 Leading Zero This feature allows the transmission of a leading zero (0) at the beginning of scanned data. To prevent transmission, scan Off. Default = On. * On UPC-E0 Addenda This selection adds 2 or 5 digits to the end of all scanned UPC-E data. Default = Off for both 2 Digit and 5 Digit Addenda.

  • Page 146: Ean/Jan-13

    EAN/JAN-13 <Default All EAN/JAN Settings> EAN/JAN-13 On/Off * On Convert UPC-A to EAN-13 When UPC-A Converted to EAN-13 is selected, UPC-A bar codes are converted to 13 digit EAN-13 codes by adding a zero to the front. When Do not Convert UPC-A is selected, UPC-A codes are read as UPC-A. UPC-A Converted to EAN-13 * Do not Convert UPC-A 7 - 32...
  • Page 147 EAN/JAN-13 Check Digit This selection allows you to specify whether the check digit should be transmitted at the end of the scanned data or not. Default = On. * On EAN/JAN-13 Addenda This selection adds 2 or 5 digits to the end of all scanned EAN/JAN-13 data.

  • Page 148: Isbn Translate

    EAN/JAN-13 Addenda Separator When this feature is On, there is a space between the data from the bar code and the data from the addenda. When turned Off, there is no space. Default = On. * On Note: If you want to enable or disable EAN13 with Extended Coupon Code, refer to UPC-A/EAN-13 with Extended Coupon Code (page 7-27).

  • Page 149: Ean/Jan-8

    EAN/JAN-8 <Default All EAN/JAN-8 Settings> EAN/JAN-8 On/Off * On EAN/JAN-8 Check Digit This selection allows you to specify whether the check digit should be transmitted at the end of the scanned data or not. Default = On. * On 7 - 35...
  • Page 150 EAN/JAN-8 Addenda This selection adds 2 or 5 digits to the end of all scanned EAN/JAN-8 data. Default = Off for both 2 Digit and 5 Digit Addenda. 2 Digit Addenda On * 2 Digit Addenda Off 5 Digit Addenda On * 5 Digit Addenda Off EAN/JAN-8 Addenda Required When Required is scanned, the scanner will only read EAN/JAN-8 bar...

  • Page 151: Msi

    <Default All MSI Settings> MSI On/Off * Off MSI Check Character Different types of check characters are used with MSI bar codes. You can program the scanner to read MSI bar codes with Type 10 check characters. Default = Validate Type 10, but Don’t Transmit. When Check Character is set to Validate Type 10/11 and Transmit, the scanner will only read MSI bar codes printed with the specified type check character(s), and will transmit the character(s) at the end of the scanned...

  • Page 152: Msi Message Length

    When Check Character is set to Validate Type 10/11, but Don’t Transmit, the unit will only read MSI bar codes printed with the specified type check character(s), but will not transmit the check character(s) with the scanned data. * Validate Type 10, but Don’t Transmit Validate Type 10 and Transmit Validate 2 Type 10 Characters,...

  • Page 153: Gs1 Databar Omnidirectional

    GS1 DataBar Omnidirectional < Default All GS1 DataBar Omnidirectional Settings > GS1 DataBar Omnidirectional On/Off * On GS1 DataBar Limited < Default All GS1 DataBar Limited Settings > GS1 DataBar Limited On/Off * On 7 - 39...

  • Page 154: Gs1 Databar Expanded

    GS1 DataBar Expanded < Default All GS1 DataBar Expanded Settings > GS1 DataBar Expanded On/Off * On GS1 DataBar Expanded Message Length Scan the bar codes below to change the message length. Refer to Message Length Description (page 7-2) for additional information. Mini- mum and Maximum lengths = 4-74.

  • Page 155: Trioptic Code

    Trioptic Code Note: If you are going to scan Code 32 Pharmaceutical codes (page 7-8), Trioptic Code must be off. Trioptic Code is used for labeling magnetic storage media. * Off Codablock A <Default All Codablock A Settings> Codablock A On/Off * Off 7 - 41...
  • Page 156 Codablock A Message Length Scan the bar codes below to change the message length. Refer to Message Length Description (page 7-2) for additional information. Mini- mum and Maximum lengths = 1-600. Minimum Default = 1, Maximum Default = 600. Minimum Message Length Maximum Message Length 7 - 42...

  • Page 157: Codablock F

    Codablock F <Default All Codablock F Settings> Codablock F On/Off * Off Codablock F Message Length Scan the bar codes below to change the message length. Refer to Message Length Description (page 7-2) for additional information. Mini- mum and Maximum lengths = 1-2048. Minimum Default = 1, Maximum Default = 2048.

  • Page 158: Pdf417

    PDF417 < Default All PDF417 Settings > PDF417 On/Off * On PDF417 Message Length Scan the bar codes below to change the message length. Refer to Message Length Description (page 7-2) for additional information. Mini- mum and Maximum lengths = 1-2750. Minimum Default = 1, Maximum Default = 2750.

  • Page 159: Macropdf417

    MacroPDF417 MacroPDF417 is an implementation of PDF417 capable of encoding very large amounts of data into multiple PDF417 bar codes. When this selection is enabled, these multiple bar codes are assembled into a single data string. Default = On. * On MicroPDF417 <...

  • Page 160: Gs1 Composite Codes

    MicroPDF417 Message Length Scan the bar codes below to change the message length. Refer to Message Length Description (page 7-2) for additional information. Mini- mum and Maximum lengths = 1-366. Minimum Default = 1, Maximum Default = 366. Minimum Message Length Maximum Message Length GS1 Composite Codes Linear codes are combined with a unique 2D composite component to form a...

  • Page 161: Gs1 Emulation

    GS1 Composite Code Message Length Scan the bar codes below to change the message length. Refer to Message Length Description (page 7-2) for additional information. Mini- mum and Maximum lengths = 1-2435. Minimum Default = 1, Maximum Default = 2435. Minimum Message Length Maximum Message Length GS1 Emulation...

  • Page 162: Tcif Linked Code 39 (Tlc39)

    Default = GS1 Emulation Off. GS1-128 Emulation GS1 DataBar Emulation GS1 Code Expansion Off EAN8 to EAN13 Conversion * GS1 Emulation Off TCIF Linked Code 39 (TLC39) This code is a composite code since it has a Code 39 linear component and a MicroPDF417 stacked code component.

  • Page 163: Qr Code

    QR Code < Default All QR Code Settings > QR Code On/Off This selection applies to both QR Code and Micro QR Code. * On QR Code Message Length Scan the bar codes below to change the message length. Refer to Message Length Description (page 7-2) for additional information.

  • Page 164: Qr Code Page

    information encoded in those bar codes. Once the proper number of codes is reached, the data is output in the order specified in the bar codes. Default = On. * On QR Code Page QR Code pages define the mapping of character codes to characters. If the data received does not display with the proper characters, it may be because the bar code being scanned was created using a code page that is different from the one the host program is expecting.

  • Page 165: Data Matrix

    Data Matrix < Default All Data Matrix Settings > Data Matrix On/Off * On Data Matrix Message Length Scan the bar codes below to change the message length. Refer to Message Length Description (page 7-2) for additional information. Mini- mum and Maximum lengths = 1-3116. Minimum Default = 1, Maximum Default = 3116.

  • Page 166: Maxicode

    page A-10), and scan the value and the Save bar code from the Programming Chart on the inside the back cover of this manual. The data characters should then appear properly. Data Matrix Code Page MaxiCode < Default All MaxiCode Settings > MaxiCode On/Off * Off MaxiCode Message Length...

  • Page 167: Aztec Code

    Aztec Code < Default All Aztec Code Settings > Aztec Code On/Off * On Aztec Code Message Length Scan the bar codes below to change the message length. Refer to Message Length Description (page 7-2) for additional information. Mini- mum and Maximum lengths = 1-3832. Minimum Default = 1, Maximum Default = 3832.

  • Page 168: Aztec Code Page

    ter(s), it buffers the number of Aztec bar codes determined by information encoded in those bar codes. Once the proper number of codes is reached, the data is output in the order specified in the bar codes. Default = On. * On Aztec Code Page Aztec Code pages define the mapping of character codes to characters.

  • Page 169: Chinese Sensible (Han Xin) Code

    Chinese Sensible (Han Xin) Code < Default All Han Xin Settings > Han Xin Code On/Off * Off Han Xin Code Message Length Scan the bar codes below to change the message length. Refer to Message Length Description (page 7-2) for additional information. Mini- mum and Maximum lengths = 1-7833.

  • Page 170: Postal Codes - 2D

    Postal Codes - 2D The following lists the possible 2D postal codes, and 2D postal code combina- tions that are allowed. Only one 2D postal code selection can be active at a time. If you scan a second 2D postal code selection, the first selection is over- written.

  • Page 171: Combination 2D Postal Codes

    Postnet On Also see Postnet Check Digit, page 7-59. Postnet with B and B’ Fields On InfoMail On Combination 2D Postal Codes: InfoMail and British Post On Intelligent Mail Bar Code and Postnet with B and B’ Fields On Postnet and Postal-4i On Postnet and Intelligent Mail Bar Code On...
  • Page 172 Planet Code and Postal-4i On Planet Code and Intelligent Mail Bar Code On Planet Code, Postnet, and Postal-4i On Planet Code, Postnet, and Intelligent Mail Bar Code On Planet Code, Postal-4i, and Intelligent Mail Bar Code On Postnet, Postal-4i, and Intelligent Mail Bar Code On Planet Code, Postal-4i, and...
  • Page 173 Planet Code Check Digit This selection allows you to specify whether the check digit should be transmitted at the end of Planet Code data. Default = Don’t Transmit. Transmit Check Digit * Don’t Transmit Check Digit Postnet Check Digit This selection allows you to specify whether the check digit should be transmitted at the end of Postnet data.

  • Page 174: Postal Codes - Linear

    * Bar Output Numeric N Table Alphanumeric C Table Combination C and N Tables Postal Codes - Linear The following lists linear postal codes. Any combination of linear postal code selections can be active at a time. China Post (Hong Kong 2 of 5) <Default All China Post (Hong Kong 2 of 5) Settings>...
  • Page 175 China Post (Hong Kong 2 of 5) On/Off * Off China Post (Hong Kong 2 of 5) Message Length Scan the bar codes below to change the message length. Refer to Message Length Description (page 7-2) for additional information. Minimum and Maximum lengths = 2-80. Minimum Default = 4, Maxi- mum Default = 80.

  • Page 176: Korea Post

    Korea Post <Default All Korea Post Settings> Korea Post * Off Korea Post Message Length Scan the bar codes below to change the message length. Refer to Message Length Description (page 7-2) for additional information. Minimum and Maximum lengths = 2-80. Minimum Default = 4, Maxi- mum Default = 48.

  • Page 177: Chapter 8 - Imaging Commands

    Imaging Commands The scanner is like a digital camera in the way it captures, manipulates, and transfers images. The following commands allow you to alter the way the scan- ner performs these functions. Single-Use Basis Imaging Commands with their modifiers send instructions to the scanner on a single-use basis, and take effect for a single image capture.

  • Page 178: Image Snap - Imgsnp

    Step 1 - Take a Picture Using IMGSNP Image Snap - IMGSNP An image is taken whenever the hardware button is pressed, or when the Image Snap (IMGSNP) command is processed. The image snap command has many different modifiers that can be used to change the look of the image in memory.
  • Page 179 E - Exposure Exposure is used in Manual Style only (2P), and allows you to set the expo- sure time. This is similar to setting a shutter speed on a camera. The exposure time determines how long the scanner takes to record an image. On a bright day, exposure times can be very short because plenty of light is available to help record an image.
  • Page 180 W - Target White Value Sets the target for the median grayscale value in the captured image. For capturing close-up images of high contrast documents, a lower setting, such as 75, is recommended. Higher settings result in longer exposure times and brighter images, but if the setting is too high, the image may be overexposed.

  • Page 181: Image Ship - Imgshp

    Step 2 - Ship a Picture Using IMGSHP Image Ship - IMGSHP An image is taken whenever the button is pressed, or when the Image Snap (IMGSNP) command is processed. The last image is always stored in memory. You can “ship” the image by using the IMGSHP command. The image ship commands have many different modifiers that can be used to change the look of the image output.
  • Page 182 C - Compensation Flattens the image to account for variations in illumination across the image. 0C Compensation disabled (default) 1C Compensation enabled Example of Compensation at 0C: Example of Compensation at 1C: D - Pixel Depth Indicates the number of bits per pixel in the transmitted image (KIM or BMP format only).
  • Page 183 E - Edge Sharpen An edge sharpen filter cleans up the edges of an image, making it look cleaner and sharper. While edge sharpening does make the image look cleaner, it also removes some fine detail from the original image. The strength of the edge sharpen filter can be entered from 1 to 24.
  • Page 184 H - Histogram Stretch Increases the contrast of the transmitted image. Not available with some image formats. 0H No stretch (default) 1H Histogram stretch Example of Histogram Stretch at 0H: Example of Histogram Stretch at 1H: I - Invert Image Invert image is used to rotate the image around the X or Y axis.
  • Page 185 IF- Noise Reduction Used to reduce the salt and pepper noise in an image. 0if No salt and pepper noise reduction (default) 1if Salt and pepper noise reduction Example of Noise Reduction Off (0if): Example of Noise Reduction On (1if): IR - Image Rotate 0ir Image as snapped (rightside up) (default) 1ir Rotate image 90 degrees to the right...
  • Page 186 J - JPEG Image Quality Sets the desired quality when the JPEG image format is selected. Higher numbers result in higher quality, but larger files. Smaller numbers result in greater amounts of lossy compression, faster transmission times, lower quality, but smaller files. (Default = 50) Image is compressed as much as possible while preserving quality factor of n (n = 0 - 100) worst quality (smallest file)
  • Page 187 nB The bottom edge of the shipped image corresponds to row n - 1 of the image in memory. Range: 000 - 639. (Default = all rows) Uncropped Image: Example of Image Crop Example of Image set to 300R: Crop set to 300L: Example of Image Crop set to 200B: Example of Image Crop set to 200T: Alternately, specify the number of pixels to cut from the outside margin of...
  • Page 188 1S ship every pixel (default) 2S ship every 2nd pixel, both horizontally and vertically 3S ship every 3rd pixel, both horizontally and vertically Example of Pixel Example of Pixel Example of Pixel Ship set to 1S: Ship set to 2S: Ship set to 3S: U - Document Image Filter Allows you to input parameters to sharpen the edges and smooth the area...
  • Page 189 V - Blur Image Smooths transitions by averaging the pixels next to the hard edges of defined lines and shaded areas in an image. 0V Don’t blur (default) 1V Blur Example of Blur Image Off (0V): Example of Blur Image On (1V): W - Histogram Ship A histogram gives a quick picture of the tonal range of an image, or key type.

  • Page 190: Intelligent Signature Capture - Imgbox

    Image Size Compatibility If you have applications that expect an image ship to return exactly 640x480 pixels, scan the Force VGA Resolution bar code. Default = Native Resolution Force VGA Resolution * Native Resolution Intelligent Signature Capture - IMGBOX IMGBOX allows you to configure the size and location of a signature capture area relative to its proximity to a bar code.

  • Page 191: Imgbox Modifiers

    The following IMGBOX example was executed and viewed using QuickView software. This software is available at www.honeywellaidc.com. Click on Soft- ware Downloads. Select 4600r from the Products list, then select QuickView Software Utility. Below is an example of a signature capture application. In this example, the aimer is centered over the signature capture area and the button is pressed.
  • Page 192 This option is used to size the image horizontally. If using this option, set the resolution (R) to zero. Example of Image Width set to 200A: Example of Image Width set to 600A: B - Output Image Height This option is used to size the image vertically. If using this option, set the resolution (R) to zero.
  • Page 193 8F BMP format H - Height of Signature Capture Area The height of the signature capture area must be measured in inches divided by .01. In the example, the height of the area to be captured is 3/8 inch, resulting in a value of H = .375/0.01 = 37.5. Example: IMGBOX245w37h55y.
  • Page 194 For example, use 2500 to specify a resolution of 2.5. Set to zero when using the A and B modifiers (see A - Output Image Width B - Output Image Height on page 8-16). Example of Resolution set to 0R: Example of Resolution set to 1000R: Example of Resolution set to 2000R: S - Bar Code Aspect Ratio...
  • Page 195 Y - Vertical Bar Code Offset The vertical bar code offset allows you to offset the vertical center of the signature capture area. Negative numbers indicate that the signature cap- ture is above the bar code, and positive numbers indicate that the area is below the bar code.
  • Page 196 8 - 20...

  • Page 197: Chapter 9 - Interface Keys

    Interface Keys Keyboard Function Relationships The following Keyboard Function Code, Hex/ASCII Value, and Full ASCII “CTRL”+ relationships apply to all terminals that can be used with the scanner. Refer to page 2-18 enable Control + X (Control + ASCII) Mode. Function Code HEX/ASCII Value Full ASCII (CTRL + X Mode)
  • Page 198 The last five characters in the Full ASCII “CTRL”+ column ( [ \ ] 6 - ), apply to US only. The following chart indicates the equivalents of these five characters for different countries. Country Codes United States Belgium < Scandinavia <...

  • Page 199: Supported Interface Keys

    Supported Interface Keys IBM PC/AT and Compatibles, Apple Mac/iMac ASCII USB PC Supported Keys Keyboard Reserved Reserved Enter (KP) Enter/Numpad Enter Cap Lock CAPS ALT make ALT make ALT break ALT break CTRL make CNTRL make CTRL break CNTRL break CR/Enter RETURN Reserved...
  • Page 200 9 - 4...

  • Page 201: Chapter 10 - Utilities

    Utilities To Add a Test Code I.D. Prefix to All Symbologies This selection allows you to turn on transmission of a Code I.D. before the decoded symbology. (See the Symbology Charts, beginning on page A-1) for the single character code that identifies each symbology.) This action first clears all current prefixes, then programs a Code I.D.

  • Page 202: Show Data Format

    Show Data Format Scan the bar code below to show current data format settings. DFMBK3?. Data Format Settings Test Menu When you scan the Test Menu On code, then scan a programming code in this manual, the scanner displays the content of a programming code. The pro- gramming function will still occur, but in addition, the content of that program- ming code is output to the terminal.

  • Page 203: Application Plug-Ins (Apps)

    Application Plug-Ins (Apps) Any apps that you are using can be turned off or on by scanning the following bar codes. Apps are stored in groups: Decoding, and Formatting. You can enable and disable these groups of apps by scanning that group’s On or Off bar code below.

  • Page 204: Installing Ezconfig-Scanning From The Web

    Imaging also lets you preview the images continuously captured by the scanner. Installing EZConfig-Scanning from the Web 1. Access the Honeywell web site at www.honeywellaidc.com 2. Click on the Resources tab. Select Download.

  • Page 205: Resetting The Factory Defaults

    10. Follow the screen prompts to install the EZConfig-Scanning program. 11. If you’ve selected the defaults during installation, you can click on the shortcut on your desktop to start EZConfig for Scanning. Once the software is installed, you may delete the zip file and the EZCon- fig-Scanning folder from your desktop.
  • Page 206 10 - 6...

  • Page 207: Chapter 11 - Serial Programming Commands

    Serial Programming Commands The serial programming commands can be used in place of the programming bar codes. Both the serial commands and the programming bar codes will pro- gram the scanner. For complete descriptions and examples of each serial pro- gramming command, refer to the corresponding programming bar code in this manual.

  • Page 208: Responses

    What is the device’s current value for the setting(s). What is the range of possible values for the setting(s). (The device’s response uses a dash (-) to indicate a continuous range of values. A pipe (|) separates items in a list of non-continuous values.) :Name: Field Usage (Optional) This command returns the query information from the scanner.

  • Page 209: Examples Of Query Commands

    Examples of Query Commands In the following examples, a bracketed notation [ ] depicts a non-displayable response. Example: What is the range of possible values for Codabar Coding Enable? Enter: cbrena*. Response: CBRENA0-1[ACK] This response indicates that Codabar Coding Enable (CBRENA) has a range of values from 0 to 1 (off and on).

  • Page 210: Trigger Commands

    Trigger Commands You can activate and deactivate the scanner with serial trigger commands. First, the scanner must be put in Manual Trigger Mode by scanning a Manual Trigger Mode bar code (page 3-5), or by sending a serial menu command for triggering (page 3-6).

  • Page 211: Menu Commands

    Menu Commands Serial Command Setting Selection Page # Indicates a numeric * Indicates default entry Product Default Settings Setting Custom Set Custom Defaults MNUCDF Defaults Save Custom MNUCDS Defaults Resetting the Activate Custom DEFALT Custom Defaults Defaults Programming the Interface Plug and Play Codes Keyboard Wedge: PAP_AT...
  • Page 212 Remote MasterMind ReM Off REMIFC0 for USB *ReM On ReMIFC1 Plug and Play Codes Verifone Ruby PAPRBY Terminal Gilbarco Terminal PAPGLB Honeywell Bioptic PAPBIO Aux Port Datalogic Magellan PAPMAG Aux Port NCR Bioptic Aux PAPNCR Port Wincor Nixdorf PAPWNX Terminal...
  • Page 213 Serial Command Setting Selection Page # Indicates a numeric * Indicates default entry Program Keyboard Czech KBDCTY40 2-10 Country (Programmers) Czech (QWERTY) KBDCTY39 2-10 Czech (QWERTZ) KBDCTY38 2-10 Denmark KBDCTY8 2-10 Dutch (Netherlands) KBDCTY11 2-10 Estonia KBDCTY41 2-11 Faeroese KBDCTY83 2-11 Finland KBDCTY2...
  • Page 214 Serial Command Setting Selection Page # Indicates a numeric * Indicates default entry Program Keyboard Latvia (QWERTY) KBDCTY43 2-13 Country Lithuania KBDCTY44 2-13 Lithuania (IBM) KBDCTY45 2-13 Macedonia KBDCTY34 2-13 Malta KBDCTY74 2-13 Mongolian (Cyrillic) KBDCTY86 2-13 Norway KBDCTY9 2-13 Poland KBDCTY20 2-13...
  • Page 215 Serial Command Setting Selection Page # Indicates a numeric * Indicates default entry Program Keyboard Ukrainian KBDCTY76 2-15 Country United Kingdom KBDCTY7 2-15 United Stated KBDCTY89 2-15 (Dvorak right) United States KBDCTY88 2-15 (Dvorak left) United States KBDCTY87 2-15 (Dvorak) United States KBDCTY30 2-15...
  • Page 216 Serial Command Setting Selection Page # Indicates a numeric * Indicates default entry Keyboard Modifiers *Control + X Mode KBDCAS0 2-18 DOS Mode Control KBDCAS1 2-18 + X Mode On Windows Mode KBDCAS2 2-18 Control + X Mode Windows Mode KBDCAS3 2-18 Prefix/Suffix Off...
  • Page 217 Serial Command Setting Selection Page # Indicates a numeric * Indicates default entry Word Length: Data 7 Data, 1 Stop, 2-21 232WRD3 Bits, Stop Bits, and Parity Even Parity 7 Data, 1 Stop, 232WRD0 2-21 Parity None 7 Data, 1 Stop, 232WRD6 2-21 Parity Odd...
  • Page 218 Serial Command Setting Selection Page # Indicates a numeric * Indicates default entry RS232 Handshaking *RTS/CTS Off 232CTS0 2-24 Flow Control, No 232CTS1 2-24 Timeout Two-Direction Flow 232CTS2 2-24 Control Flow Control with 232CTS3 2-24 Timeout RS232 Timeout 232DEL#### 2-24 *XON/XOFF Off 232XON0 2-25...
  • Page 219 Serial Command Setting Selection Page # Indicates a numeric * Indicates default entry Beeper Volume - BEPLVL0 Good Read BEPLVL1 Medium BEPLVL2 *High BEPLVL3 Beeper Pitch - Good Low (1600) (min BEPFQ11600 Read (Frequency) 400Hz) *Medium (2700) BEPFQ12700 High (4200) (max BEPFQ14200 9000Hz) Beeper Pitch - Error...
  • Page 220 Serial Command Setting Selection Page # Indicates a numeric * Indicates default entry Manual Trigger *Manual Trigger - PAPHHF Modes Normal Manual Trigger - PAPHHS Enhanced LED Illumination - PWRNOL0 Manual Trigger PWRNOL100 Medium PWRNOL120 *High PWRNOL150 Serial Trigger Mode Read Time-Out TRGSTO#### (0 - 300,000 ms)
  • Page 221 Serial Command Setting Selection Page # Indicates a numeric * Indicates default entry Presentation Presentation PDCWIN1 3-11 Centering Window Centering On *Presentation PDCWIN0 3-11 Centering Off Left of Presentation PDCLFT### 3-11 Centering Window (*40%) Right of PDCRGT### 3-11 Presentation Centering Window (*60%) Top of Presentation PDCTOP###...
  • Page 222 Serial Command Setting Selection Page # Indicates a numeric * Indicates default entry Character Activation *Off HSTCEN0 3-13 Mode HSTCEN1 3-13 Activation Character HSTACH## 3-13 Do Not End HSTCGD0 3-14 Character Activation After Good Read *End Character HSTCGD1 3-15 Activation After Good Read Character Activation HSTCDT#####...
  • Page 223 Serial Command Setting Selection Page # Indicates a numeric * Indicates default entry 2D Reread Delay *2D Reread Delay DLY2RR0 3-16 Short (1000ms) DLY2RR1000 3-16 Medium (2000ms) DLY2RR2000 3-16 Long (3000ms) DLY2RR3000 3-16 Extra Long DLY2RR4000 3-16 (4000ms) Aimer Mode SCNAIM0 3-18 *Interlaced...
  • Page 224 Serial Command Setting Selection Page # Indicates a numeric * Indicates default entry Partial Sequence Transmit Partial SEQTTS1 3-26 Sequence *Discard Partial SEQTTS0 3-26 Sequence Require Output Required SEQ_EN2 3-27 Sequence On/Not Required SEQ_EN1 3-27 *Off SEQ_EN0 3-27 Multiple Symbols SHOTGN1 3-27 *Off...
  • Page 225 Serial Command Setting Selection Page # Indicates a numeric * Indicates default entry Communication *None HSTXRC0 Check Character LRC Starts on 1st HSTXRC1 Character LRC Starts on 2nd HSTXRC2 Character HSTXRC3 Intercharacter Delay Range 0 - 1000 DLYCHR## (5ms increments) User Specified Delay Length DLYCRX##...
  • Page 226 Serial Command Setting Selection Page # Indicates a numeric * Indicates default entry Data Formatter Data Formatter Off DFM_EN0 5-16 *Data Formatter On, DFM_EN1 5-17 Not Required, Keep Prefix/Suffix Data Format DFM_EN2 5-17 Required, Keep Prefix/Suffix Data Formatter On, DFM_EN3 5-17 Not Required, Drop Prefix/Suffix...
  • Page 227 Serial Command Setting Selection Page # Indicates a numeric * Indicates default entry External Input *External Trigger EXTTRG0 Control Off External Trigger EXTTRG1 Control On *External Trigger EXTTPO1 Polarity High External Trigger EXTTPO0 Polarity Low External Output *External EXTILL0 Illumination Control External Illumination EXTILL1 Control On...
  • Page 228 Serial Command Setting Selection Page # Indicates a numeric * Indicates default entry Code 39 Default All Code 39 C39DFT Settings C39ENA0 C39ENA1 Code 39 Start/Stop *Don’t Transmit C39SSX0 Char. Transmit C39SSX1 Code 39 Check Char. *No Check Char. C39CK20 Validate, But Don’t C39CK21 Transmit...
  • Page 229 Serial Command Setting Selection Page # Indicates a numeric * Indicates default entry Interleaved 2 of 5 Minimum (2 - 80) *4 I25MIN## 7-11 Message Length Maximum (2 - 80) I25MAX## 7-11 NEC 2 of 5 Default All NEC N25DFT 7-12 2 of 5 Settings N25ENA0...
  • Page 230 Serial Command Setting Selection Page # Indicates a numeric * Indicates default entry Straight 2 of 5 IATA Default All Straight 2 A25DFT 7-17 of 5 IATA Settings Straight 2 of 5 IATA *Off A25ENA0 7-17 A25ENA1 7-17 Straight 2 of 5 IATA Minimum (1 - 48) *4 A25MIN## 7-17...
  • Page 231 Serial Command Setting Selection Page # Indicates a numeric * Indicates default entry Code 128 Append 128APP1 7-21 *Off 128APP0 7-21 Code 128 Code Page Code 128 Code 128DCP## 7-22 Page (*2) GS1-128 Default All GS1-128 GS1DFT 7-23 Settings GS1ENA1 7-23 GS1ENA0 7-23...
  • Page 232 Serial Command Setting Selection Page # Indicates a numeric * Indicates default entry UPC-A Addenda *Not Required UPAARQ0 7-27 Required Required UPAARQ1 7-27 UPC-A Addenda UPAADS0 7-27 Separator UPAADS1 7-27 UPC-A/EAN-13 with *Off CPNENA0 7-28 Extended Coupon Allow Concatenation CPNENA1 7-28 Code Require...
  • Page 233 Serial Command Setting Selection Page # Indicates a numeric * Indicates default entry EAN/JAN-13 Default All EAN/ E13DFT 7-32 JAN Settings E13ENA0 7-32 E13ENA1 7-32 Convert UPC-A to UPC-A Converted to UPAENA0 7-32 EAN-13 EAN-13 *Do not Convert UPAENA1 7-32 UPC-A EAN/JAN-13 Check E13CKX0...
  • Page 234 Serial Command Setting Selection Page # Indicates a numeric * Indicates default entry EAN/JAN-8 Addenda EA8ADS0 7-36 Separator EA8ADS1 7-36 Default All MSI MSIDFT 7-37 Settings *Off MSIENA0 7-37 MSIENA1 7-37 MSI Check Character *Validate Type 10, MSICHK0 7-38 but Don’t Transmit Validate Type 10 and MSICHK1 7-38...
  • Page 235 Serial Command Setting Selection Page # Indicates a numeric * Indicates default entry GS1 DataBar Limited Default All GS1 RSLDFT 7-39 DataBar Limited Settings RSLENA0 7-39 RSLENA1 7-39 GS1 DataBar Default All GS1 RSEDFT 7-40 Expanded DataBar Expanded Settings RSEENA0 7-40 RSEENA1 7-40...
  • Page 236 Serial Command Setting Selection Page # Indicates a numeric * Indicates default entry PDF417 Default All PDF417 PDFDFT 7-44 Settings PDFENA1 7-44 PDFENA0 7-44 PDF417 Msg. Length Minimum (1-2750) PDFMIN#### 7-44 Maximum (1-2750) PDFMAX#### 7-44 *2750 MacroPDF417 PDFMAC1 7-45 PDFMAC0 7-45 MicroPDF417 Default All Micro...
  • Page 237 Serial Command Setting Selection Page # Indicates a numeric * Indicates default entry TCIF Linked Code 39 T39ENA1 7-48 *Off T39ENA0 7-48 QR Code Default All QR Code QRCDFT 7-49 Settings QRCENA1 7-49 QRCENA0 7-49 QR Code Msg. Minimum (1-7089) QRCMIN#### 7-49 Length...
  • Page 238 Serial Command Setting Selection Page # Indicates a numeric * Indicates default entry Aztec Code Msg. Minimum (1-3832) AZTMIN#### 7-53 Length Maximum (1-3832) AZTMAX#### 7-53 *3832 Aztec Append AZTAPP1 7-54 *Off AZTAPP0 7-54 Aztec Code Page Aztec Code Page AZTDCP## 7-54 (*51) Chinese Sensible...
  • Page 239 Serial Command Setting Selection Page # Indicates a numeric * Indicates default entry Combination 2D InfoMail and British POSTAL8 7-57 Postal Codes Post On Intelligent Mail Bar POSTAL20 7-57 Code and Postnet with B and B’ Fields Postnet and Postal- POSTAL14 7-57 4i On...
  • Page 240 Serial Command Setting Selection Page # Indicates a numeric * Indicates default entry Combination 2D Postnet, Postal-4i, POSTAL24 7-58 Postal Codes and Intelligent Mail (continued) Bar Code On Planet, Postal-4i, POSTAL25 7-58 and Postnet with B and B’ Fields On Planet, Intelligent POSTAL26 7-58...
  • Page 241 Serial Command Setting Selection Page # Indicates a numeric * Indicates default entry China Post (Hong Default All China CPCDFT 7-60 Kong 2 of 5) Post (Hong Kong 2 of 5) Settings *Off CPCENA0 7-61 CPCENA1 7-61 China Post (Hong Minimum (2 - 80) *4 CPCMIN## 7-61...
  • Page 242 Serial Command Setting Selection Page # Indicates a numeric * Indicates default entry Imaging Default Commands Image Snap Default all Imaging IMGDFT Commands Imaging Style - SNPSTY0 Decoding *Imaging Style - SNPSTY1 Photo Imaging Style - SNPSTY2 Manual Beeper On SNPBEP1 *Beeper Off SNPBEP0...
  • Page 243 Serial Command Setting Selection Page # Indicates a numeric * Indicates default entry Image Ship *Infinity Filter - Off IMGINF0 Infinity Filter - On IMGINF1 *Compensation Off IMGCOR0 Compensation On IMGCOR1 *Pixel Depth - 8 bits/ IMGBPP8 pixel (grayscale) Pixel Depth - 1 bit/ IMGBPP1 pixel (B&W) *Don’t Sharpen...
  • Page 244 Serial Command Setting Selection Page # Indicates a numeric * Indicates default entry Image Ship Invert Image around IMGNVX1 (continued) X axis Invert Image around IMGNVY1 Y axis Rotate Image none IMGROT0 Rotate Image 90° IMGROT1 right Rotate Image 180° IMGROT2 right Rotate Image 90°...
  • Page 245 Serial Command Setting Selection Page # Indicates a numeric * Indicates default entry Image Ship Ship Every 2nd Pixel IMGSUB2 8-12 (continued) Ship Every 3rd Pixel IMGSUB3 8-12 *Document Image IMGUSH0 8-12 Filter Off Document Image IMGUSH### 8-12 Filter On (0-255) *Don’t Ship IMGHST0 8-13...
  • Page 246 11 - 40...

  • Page 247: Scanner Product Specifications

    Product Specifications 3310 Scanner Product Specifications Parameter Specification Dimensions (Typical): Height 1.02 inches (26mm) Length 2.91 inches (74mm) Width 1.97 inches (50mm) Weight 2.5 ounces (70g) Wavelength: Illumination LED 633nm Aimer LED 528nm Image Size 844 x 640 pixels Skew Angle +65°...

  • Page 248: Depth Of Field

    Depth of Field Typical Performance Bar code Standard Range (SR) 5 mil Code 39 55 mm - 159 mm (2.2” - 6.3”) 7.5 mil Code 39 35 mm - 239 mm (1.4” - 9.4”) 10 mil Code 39 26 mm - 330 mm (1.0” - 13.0”) 20 mil Code 39 47 mm - 553 mm (1.9”...

  • Page 249: Mounting Specifications

    Mounting Specifications The 3310 has three M3 x 0.5mm threaded inserts on the bottom of the scanner for mounting with screws. 12 - 3...

  • Page 250: Mounting General Guidelines

    • If a secondary window is used, the window should be mounted as close to the front of scanner as possible at a 90° angle to the optical axis to avoid specular reflections. • For secondary windows, Honeywell recommends the following: • Optical quality glass • >95% transmission in the nominal 650nm wavelength •...

  • Page 251: Standard Cable Pinouts

    Standard Cable Pinouts Keyboard Wedge 15 Pin D-type 1 PC Data 2 KB Clock 3 KB Data 4 Reserved 5 Reserved 6 Ground 7 Reserved 8 Jump to Pin 11 9 PC Clock 10 Host Power (+5V) 11 Adapter Power 12 Jump to Pin 10 13 Reserved 14 Reserved...
  • Page 252 15 Pin D-type 1 Reserved 2 Reserved 3 Reserved 4 USB D- 5 USB D+ 6 Ground 7 Reserved 8 Reserved 9 Reserved 10 Host Power (+5V) 11 Jump to Pin 10 12 Reserved 13 Reserved 14 External Trigger 15 External Illumination Note: Use of a cable with improper pin assignments may lead to damage to the unit.

  • Page 253: Repairs

    Maintenance Repairs Repairs and/or upgrades are not to be performed on this product. These ser- vices are to be performed only by an authorized service center (see Customer Support on page 14-1). Maintenance Your device provides reliable and efficient operation with a minimum of care. Although specific maintenance is not required, the following periodic checks ensure dependable operation: Cleaning the Scanner...

  • Page 254: Inspecting Cords And Connectors

    The standard interface cable is attached to the scanner with an 15-pin modular connector. The interface cable is designed to be field replaceable. • Order replacement cables from Honeywell or from an authorized distributor. • When ordering a replacement cable, specify the cable part number of the original interface cable.
  • Page 255 Is the scanner having trouble reading your symbols? If the scanner isn’t reading symbols well, check that the symbols: • Aren’t smeared, rough, scratched, or exhibiting voids. • Aren’t coated with frost or water droplets on the surface. • Are enabled in the scanner or in the decoder to which the scanner connects.
  • Page 256 13 - 4...

  • Page 257: Customer Support

    Material Authorization number (RMA #). You should do this prior to returning the product. Limited Warranty Honeywell International Inc. ("HII") warrants its products to be free from defects in materials and workmanship and to conform to HII’s published specifications applicable to the products purchased at the time of shipment. This warranty does not cover any HII product which is (i) improperly installed or used;...
  • Page 258 This warranty shall extend from the time of shipment for the duration published by HII for the product at the time of purchase ("Warranty Period"). Any defective product must be returned (at purchaser’s expense) during the Warranty Period to HII factory or authorized service center for inspection. No product will be accepted by HII without a Return Materials Authorization, which may be obtained by contacting HII.

  • Page 259: Symbology Charts

    Symbologies, 99) entry. Refer to Data Editing beginning on page 4-1 and Data Formatting beginning on page 5-1 for information about using Code ID and AIM ID. Linear Symbologies Honeywell Possible Symbology modifiers All Symbologies Codabar Code 11 Code 128...
  • Page 260 0, 1, 2, 3, 8, 9, A, B, C UPC-A UPC-A with Add-On UPC-A with Extended Coupon Code UPC-E UPC-E with Add-On UPC-E1 Add Honeywell Code ID 5C80 Add AIM Code ID 5C81 Add Backslash 5C5C Batch mode quantity A - 2...

  • Page 261: D Symbologies

    2D Symbologies Honeywell Possible Symbology modifiers All Symbologies Aztec Code 0-9, A-C Chinese Sensible Code (Han Xin Code) Codablock A 0, 1, 4, 5, 6 Codablock F 0, 1, 4, 5, 6 Code 49 0, 1, 2, 4 Data Matrix...

  • Page 262: Ascii Conversion Chart (Code Page 1252)

    Honeywell Possible Symbology modifiers China Post InfoMail Intelligent Mail Bar Code Japanese Post KIX (Netherlands) Post Korea Post Planet Code Postal-4i Postnet ASCII Conversion Chart (Code Page 1252) In keyboard applications, ASCII Control Characters can be represented in 3 dif- ferent ways, as shown below.

  • Page 263: Lower Ascii Reference Table

    Non-printable Keyboard Control + ASCII (CTRL+X) Mode ASCII control characters Windows Mode Control + X Mode On (KBDCAS2) Control + X Mode Off CTRL + X Char CTRL + X (KBDCAS0) function CTRL+ K hyperlink list, Delete CTRL+ L left align Enter / Ret CTRL+ M Insert...
  • Page 264 Printable Characters (Continued) DEC HEX Character DEC HEX Character DEC HEX Character & < > ⌂ Extended ASCII Characters PS2 Scan DEC HEX CP 1252 ASCII Alternate Extended Code ↑ Ç 0x48 up arrow ↓ ü 0x50 down arrow → ‚...
  • Page 265 Extended ASCII Characters (Continued) PS2 Scan DEC HEX CP 1252 ASCII Alternate Extended Code … à Delete 0x53 † å Home 0x47 ‡ ç 0x4F ˆ ê Page Up 0x49 ‰ ë Page Down 0x51 Š è Right ALT 0x38 ‹...
  • Page 266 Extended ASCII Characters (Continued) PS2 Scan DEC HEX CP 1252 ASCII Alternate Extended Code ¬ ¼ Control Make 0x1D ¡ Control Break 0x9D ® « Alt Sequence with 1 Character 0x36 ¯ » Ctrl Sequence with 1 Character 0x1D ░ °...
  • Page 267 Extended ASCII Characters (Continued) PS2 Scan DEC HEX CP 1252 ASCII Alternate Extended Code ╙ Ó ╘ Ô ╒ Õ ╓ Ö ╫ × ╪ Ø ┘ Ù ┌ Ú █ Û ▄ Ü ▌ Ý ▐ Þ ▀ ß α...

  • Page 268: Iso 2022/Iso 646 Character Replacements

    Character Replacement ISO/IEC 2022 2 (default) Binary Code page Default “Automatic National Character replacement” will select the below Honeywell Code Page options for Code128, Code 39 and Code 93. United States ISO/IEC 646-06 Canada ISO /IEC 646-121 Canada ISO /IEC 646-122...
  • Page 269 Code Page Selection Standard Keyboard Honeywell Method/Country Country Code Page Option France ISO /IEC 646-69 Germany ISO/IEC646-21 Switzerland ISO /IEC 646-CH Sweden / Finland (extended Annex C) ISO/IEC 646-11 Ireland ISO /IEC 646-207 Danmark ISO/IEC 646-08 Norway ISO/IEC 646-60 Italy...
  • Page 270 à â ç ê î ô é ù è û à â ç ê É ô é ù è û ⎯ ¥ ⎯ ¥ £ ˜ £ à ° ç § µ é ù è ¨ § Ä Ö Ü ä...

  • Page 271: Unicode Key Maps

    Unicode Key Maps 70 71 72 73 74 75 76 77 78 79 7A 7B 7C 7D 7E 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 4B 50 55 5A 5F 64 10 11 12 13 14 15 16 17 18 19 1A 1B 1C 1D 4C 51 56 5B 60 65 1F 20 21 22 23 24 25 26 27 28 29...
  • Page 272 A - 14...
  • Page 273 Sample Symbols UPC-A Interleaved 2 of 5 0 123456 7890 Code 128 1234567890 EAN-13 Code 128 Code 39 9 780330 290951 Codabar BC321 Code 93 A13579B Straight 2 of 5 Industrial 123456-9$ 123456...
  • Page 274 Sample Symbols Matrix 2 of 5 GS1 DataBar 6543210 PDF417 (01)00123456789012 Car Registration Postnet Zip Code Data Matrix QR Code Test Symbol Numbers 4-CB (4-State Customer Bar Code) 01,234,567094,987654321,01234567891 ID-tag (UPU 4-State) J18CUSA8E6N062315014880T...
  • Page 275 Sample Symbols Aztec Micro PDF417 Package Label MaxiCode Test Message Test Message...

  • Page 276: Programming Chart

    Programming Chart...
  • Page 277 Programming Chart Save Discard Reset Note: If you make an error while scanning the letters or digits (before scanning Save), scan Discard, scan the correct letters or digits, and Save again.
  • Page 278 Honeywell Scanning & Mobility 9680 Old Bailes Road Fort Mill, SC 29707 www.honeywellaidc.com 3310-UG Rev C 9/13...
