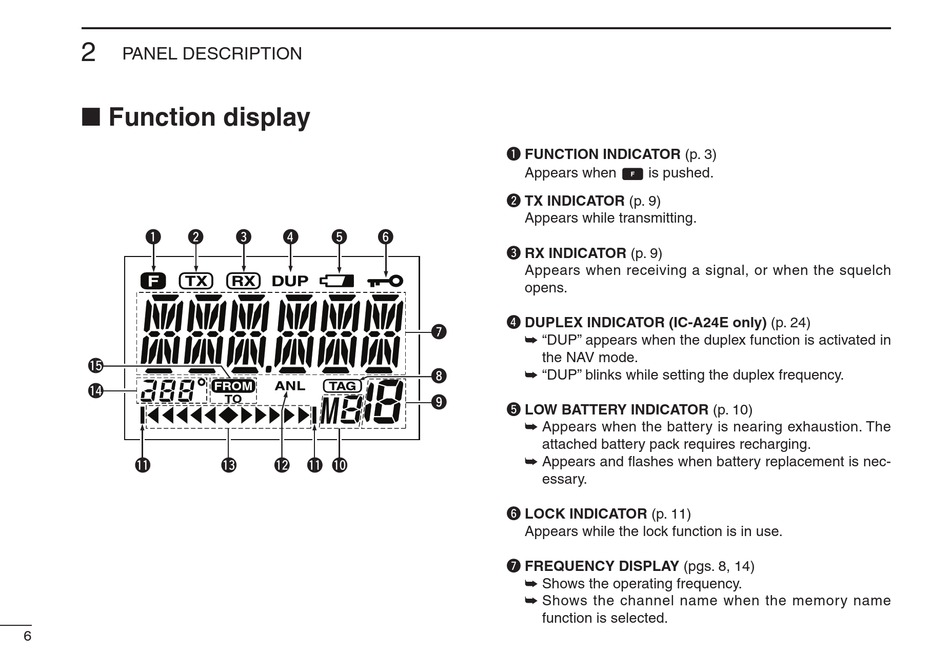

PANEL DESCRIPTION

■ Function display

q w
!5
!4
!1
6
e r t y
!3 !2 !1 !0
q FUNCTION INDICATOR (p. 3)
Appears when
w TX INDICATOR (p. 9)
Appears while transmitting.
e RX INDICATOR (p. 9)
Appears when receiving a signal, or when the squelch
opens.
r DUPLEX INDICATOR (IC-A24E only) (p. 24)
u
➥ "DUP" appears when the duplex function is activated in
the NAV mode.
i ➥ "DUP" blinks while setting the duplex frequency.
o
t LOW BATTERY INDICATOR (p. 10)
➥ Appears when the battery is nearing exhaustion. The
attached battery pack requires recharging.
➥ Appears and fl ashes when battery replacement is nec-
essary.
y LOCK INDICATOR (p. 11)
Appears while the lock function is in use.
u FREQUENCY DISPLAY (pgs. 8, 14)
➥ Shows the operating frequency.
➥ Shows the channel name when the memory name
function is selected.
is pushed.
