3

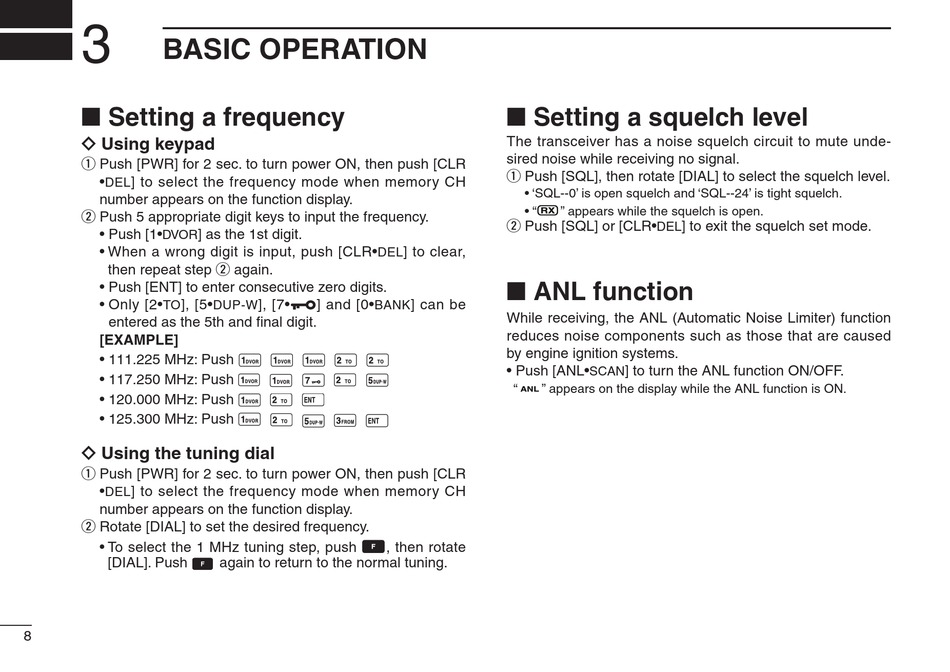

BASIC OPERATION

■ Setting a frequency

ï Using keypad
q Push [PWR] for 2 sec. to turn power ON, then push [CLR
• ] to select the frequency mode when memory CH
DEL
number appears on the function display.
w Push 5 appropriate digit keys to input the frequency.
• Push [1• ] as the 1st digit.
DVOR
• When a wrong digit is input, push [CLR•
then repeat step w again.
• Push [ENT] to enter consecutive zero digits.
• Only [2• ], [5•
TO
entered as the 5th and fi nal digit.
[EXAMPLE]
• 111.225 MHz: Push
• 117.250 MHz: Push
• 120.000 MHz: Push
• 125.300 MHz: Push
ï Using the tuning dial
q Push [PWR] for 2 sec. to turn power ON, then push [CLR
• ] to select the frequency mode when memory CH
DEL
number appears on the function display.
w Rotate [DIAL] to set the desired frequency.
• To select the 1 MHz tuning step, push
[DIAL]. Push
8
DEL
], [7• ] and [0•
DUP-W BANK
, then rotate
again to return to the normal tuning.

■ Setting a squelch level

The transceiver has a noise squelch circuit to mute unde-
sired noise while receiving no signal.
q Push [SQL], then rotate [DIAL] to select the squelch level.
• 'SQL--0' is open squelch and 'SQL--24' is tight squelch.
• " " appears while the squelch is open.
w Push [SQL] or [CLR•
] to clear,

■ ANL function

] can be
While receiving, the ANL (Automatic Noise Limiter) function
reduces noise components such as those that are caused
by engine ignition systems.
• Push [ANL•
" " appears on the display while the ANL function is ON.
] to exit the squelch set mode.
DEL
] to turn the ANL function ON/OFF.
SCAN
