12

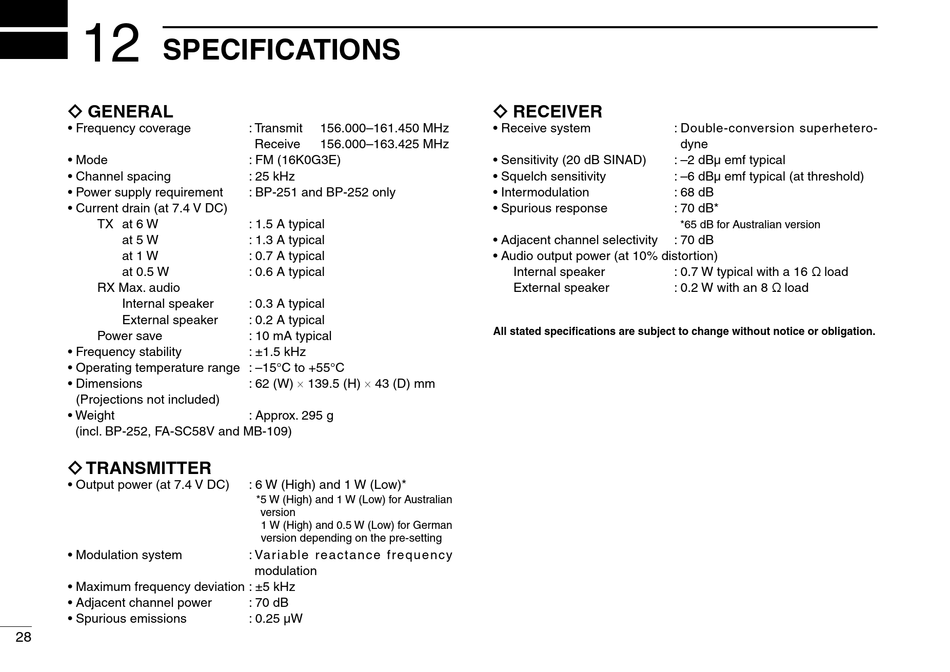

SPECIFICATIONS

ï GENERAL
• Frequency coverage
• Mode
• Channel spacng
• Power supply requrement
• Current dran (at 7.4 V DC)
TX at 6 W
at 5 W
at 1 W
at 0.5 W
RX Max. audo
Internal speaker
External speaker
Power save
• Frequency stablty
• Operatng temperature range : –15°C to +55°C
• Dmensons
(Projectons not ncluded)
• Weght
(ncl. BP-252, FA-SC58V and MB-109)
ï TRANSMITTER
• Output power (at 7.4 V DC)
• Modulaton system
• Maxmum frequency devaton : ±5 kHz
• Adjacent channel power
• Spurous emssons
28
: Transmt 156.000–161.450 MHz
Receve 156.000–163.425 MHz
: FM (16K0G3E)
: 25 kHz
: BP-251 and BP-252 only
: 1.5 A typcal
: 1.3 A typcal
: 0.7 A typcal
: 0.6 A typcal
: 0.3 A typcal
: 0.2 A typcal
: 10 mA typcal
: ±1.5 kHz
: 62 (W) × 139.5 (H) × 43 (D) mm
: Approx. 295 g
: 6 W (Hgh) and 1 W (Low)*
* 5 W (Hgh) and 1 W (Low) for Australan
verson
1 W (Hgh) and 0.5 W (Low) for German
verson dependng on the pre-settng
: Var able reactance frequency
modulaton
: 70 dB
: 0.25 µW
ï RECEIVER
• Receve system
• Senstvty (20 dB SINAD)
• Squelch senstvty
• Intermodulaton
• Spurous response
• Adjacent channel selectvty
• Audo output power (at 10% dstorton)
Internal speaker
External speaker
All stated specifications are subject to change without notice or obligation.
: Double-converson superhetero-
dyne
: –2 dBµ emf typcal
: –6 dBµ emf typcal (at threshold)
: 68 dB
: 70 dB*
*65 dB for Australan verson
: 70 dB
: 0.7 W typcal wth a 16 Ω load
: 0.2 W wth an 8 Ω load
