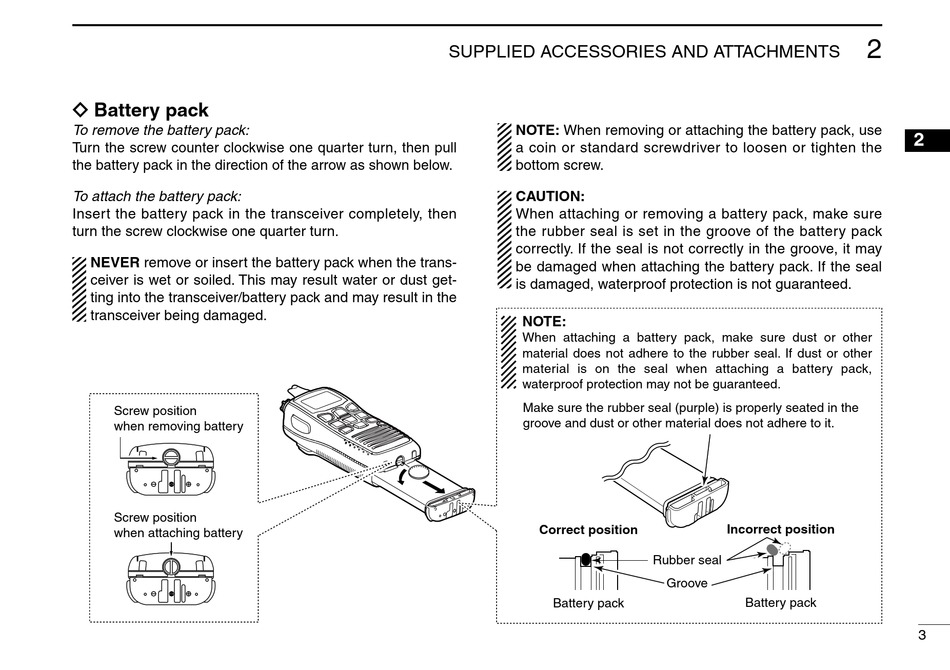

ï Battery pack
To remove the battery pack:
Turn the screw counter clockwse one quarter turn, then pull
the battery pack n the drecton of the arrow as shown below.
To attach the battery pack:
Insert the battery pack n the transcever completely, then
turn the screw clockwse one quarter turn.
NEVER remove or nsert the battery pack when the trans-
cever s wet or soled. Ths may result water or dust get-
tng nto the transcever/battery pack and may result n the
transcever beng damaged.
Screw poston
when removng battery
Screw poston
when attachng battery
SUPPLIED ACCESSORIES AND ATTACHMENTS
NOTE: When removng or attachng the battery pack, use
a con or standard screwdrver to loosen or tghten the
bottom screw.
CAUTION:
When attachng or removng a battery pack, make sure
the rubber seal s set n the groove of the battery pack
correctly. If the seal s not correctly n the groove, t may
be damaged when attachng the battery pack. If the seal
s damaged, waterproof protecton s not guaranteed.
NOTE:
When attachng a battery pack, make sure dust or other
materal does not adhere to the rubber seal. If dust or other
materal s on the seal when attachng a battery pack,
waterproof protecton may not be guaranteed.
Make sure the rubber seal (purple) s properly seated n the
groove and dust or other materal does not adhere to t.
Correct position
Battery pack
Incorrect position
Rubber seal
Groove
Battery pack
