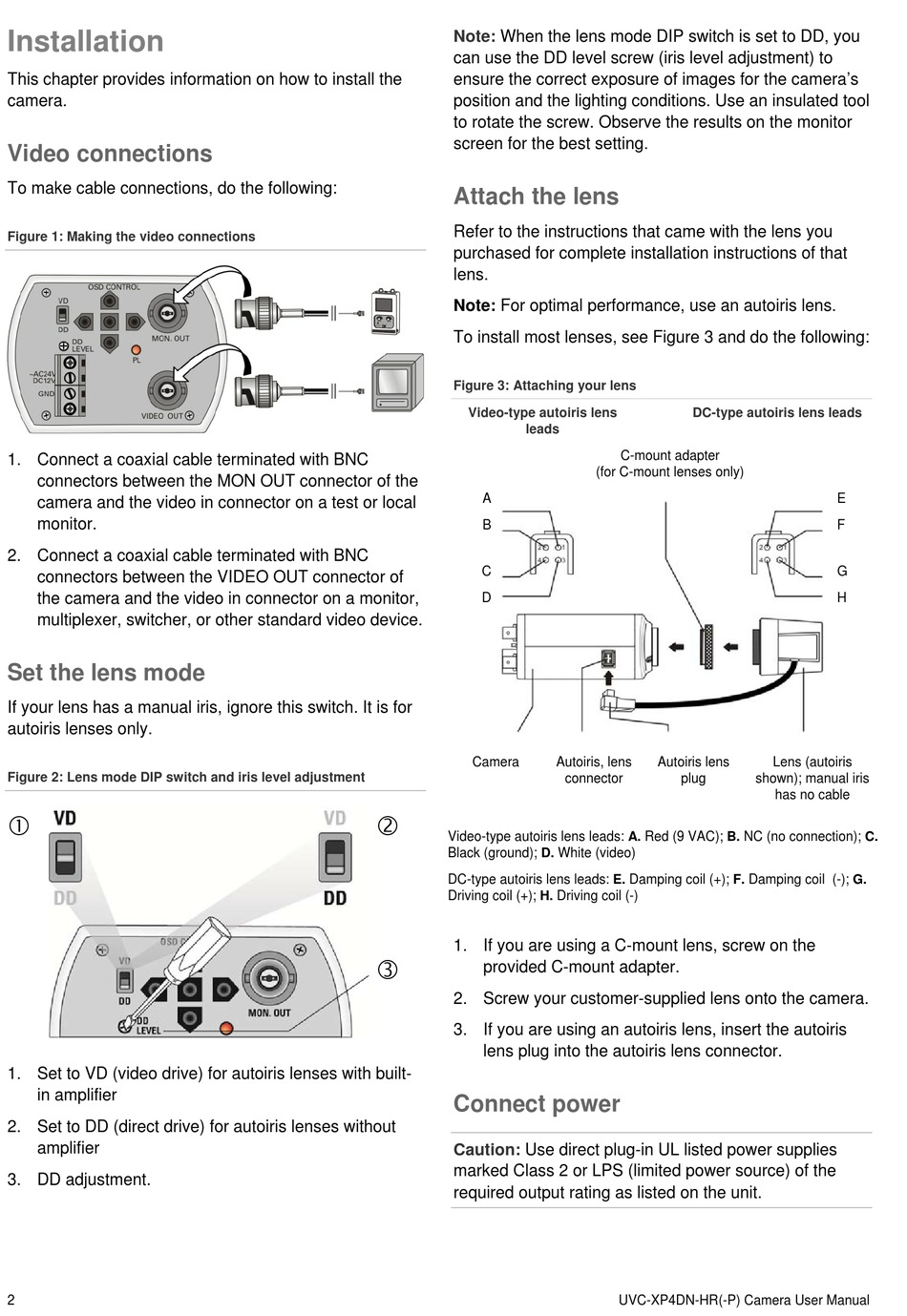

Installation

This chapter provides information on how to install the
camera.

Video connections

To make cable connections, do the following:
Figure 1: Making the video connections
1. Connect a coaxial cable terminated with BNC
connectors between the MON OUT connector of the
camera and the video in connector on a test or local
monitor.
2. Connect a coaxial cable terminated with BNC
connectors between the VIDEO OUT connector of
the camera and the video in connector on a monitor,
multiplexer, switcher, or other standard video device.

Set the lens mode

If your lens has a manual iris, ignore this switch. It is for
autoiris lenses only.
Figure 2: Lens mode DIP switch and iris level adjustment

1. Set to VD (video drive) for autoiris lenses with built-
in amplifier
2. Set to DD (direct drive) for autoiris lenses without
amplifier
3. DD adjustment.
2
Note: When the lens mode DIP switch is set to DD, you
can use the DD level screw (iris level adjustment) to
ensure the correct exposure of images for the camera's
position and the lighting conditions. Use an insulated tool
to rotate the screw. Observe the results on the monitor
screen for the best setting.

Attach the lens

Refer to the instructions that came with the lens you
purchased for complete installation instructions of that
lens.
Note: For optimal performance, use an autoiris lens.
To install most lenses, see Figure 3 and do the following:
Figure 3: Attaching your lens
Video-type autoiris lens
leads
A
B
C
D
Camera

Video-type autoiris lens leads: A. Red (9 VAC); B. NC (no connection); C.
Black (ground); D. White (video)
DC-type autoiris lens leads: E. Damping coil (+); F. Damping coil (-); G.
Driving coil (+); H. Driving coil (-)
1. If you are using a C-mount lens, screw on the

provided C-mount adapter.
2. Screw your customer-supplied lens onto the camera.
3. If you are using an autoiris lens, insert the autoiris
lens plug into the autoiris lens connector.

Connect power

Caution: Use direct plug-in UL listed power supplies
marked Class 2 or LPS (limited power source) of the
required output rating as listed on the unit.
DC-type autoiris lens leads
C-mount adapter
(for C-mount lenses only)
Autoiris, lens Autoiris lens
connector plug
UVC-XP4DN-HR(-P) Camera User Manual
E
F
G
H
Lens (autoiris
shown); manual iris
has no cable
