Camera ID setup
From the Setup menu, use the arrow buttons to select ID
setup and press the center button. The Camera ID Setup
menu screen appears.

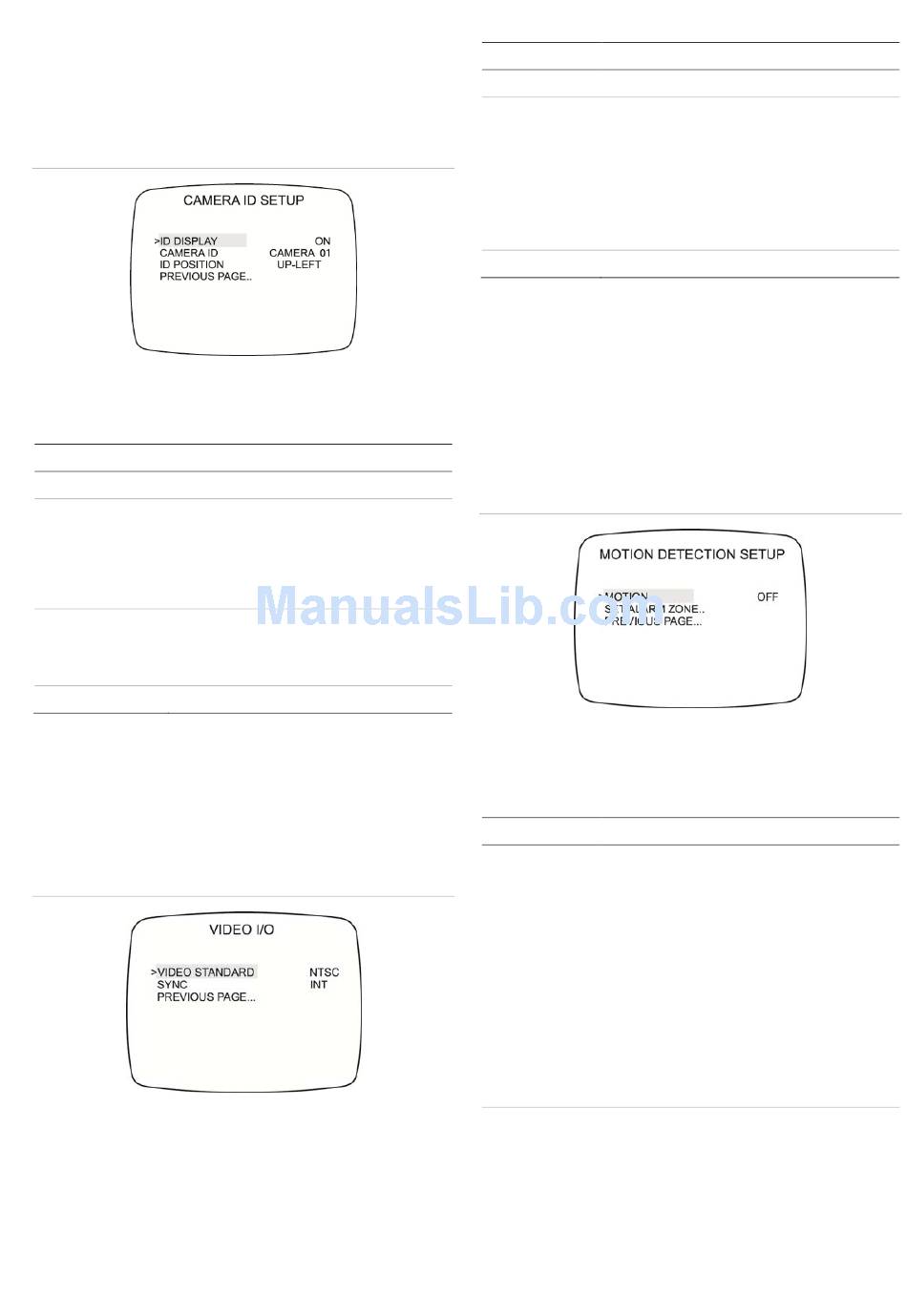

Figure 8: ID setup menu
Table 4 below lists the Camera ID setup menu options.
Table 4: Camera ID setup menu options
Menu option Description
ID display Select on or off.
Camera ID Define the camera name. Press the
button to move the cursor to edit the camera
ID. Use the
through the options and the
select. When complete use the
buttons to leave the editing field.
ID position Define where on-screen the camera name is
displayed. Select one of the position options:
Up-Left, Up-Center, Up-Right, Down-Left,
Down-Right.
Previous page Select to return to the previous menu.
Video I/O
From the Setup menu, use the arrow buttons to select
Video I/O and press the center button. The Video I/O
menu screen appears.
Figure 9: Video I/O menu
Table 5 below lists the Video I/O menu options.
UVC-XP4DN-HR(-P) Camera User Manual
right
up or down buttons to cycle
center button to
up or down
Table 5: Video I/O menu options
Menu option Description
Video Standard Select NTSC or PAL.
Sync Select one of the two options:
INT - Internal Synch. This is used with DC Power
Input as a way to reduce the phase roll of
fluorescent lights.
LL - Line Lock. This is used to synch video for
AC Power Input so that the synch matches the
frequency of the power input. This will completely
eliminate the roll caused by fluorescent
Previous Page Returns to previous menu.
Motion detection
A motion detection alarm refers to an alarm triggered
when the camera detects a motion.
From the Setup menu, use the arrow buttons to select
Motion detection and press the center button. The
Motion Detection menu screen appears.
Figure 10: Motion detection menu
Table 6 below lists the Motion Detection setup menu
options.
Table 6: Motion Detection setup menu options
Menu option Description
Motion Select one of the options:
Off - Turn off motion detection.
All Alarms - Not used.
GPI Trigger - Not used.
Motion Detection – Set:
- activity threshold: Level of sensitivity of the
motion detection.
- digital zoom: How far in the camera zooms upon
alarm. By default, the camera zooms to the
center of the screen.
- digital pan: Adjust where the camera zooms left
or right upon alarm.
- digital tilt: Adjust where the camera zooms up
or down upon alarm.
Set Alarm Zone Define the on-screen area to trigger a response.
Select to launch Alarm zone setup menu. This
menu lets you select the location and size of the
detection zone. Use the arrow buttons to move
and size the selection box.
lights.
