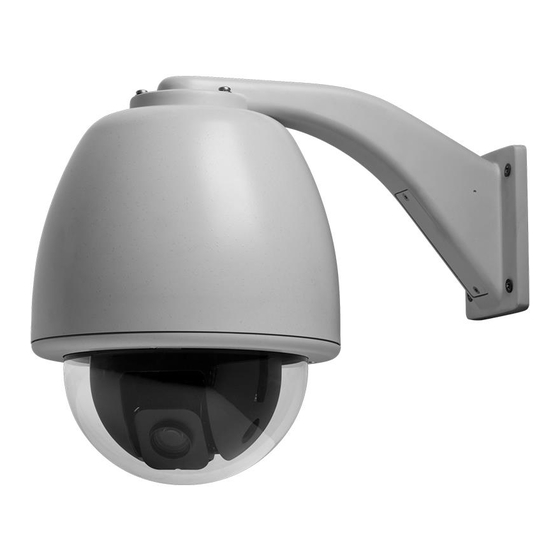

Summary of Contents for Interlogix UltraView PTZ

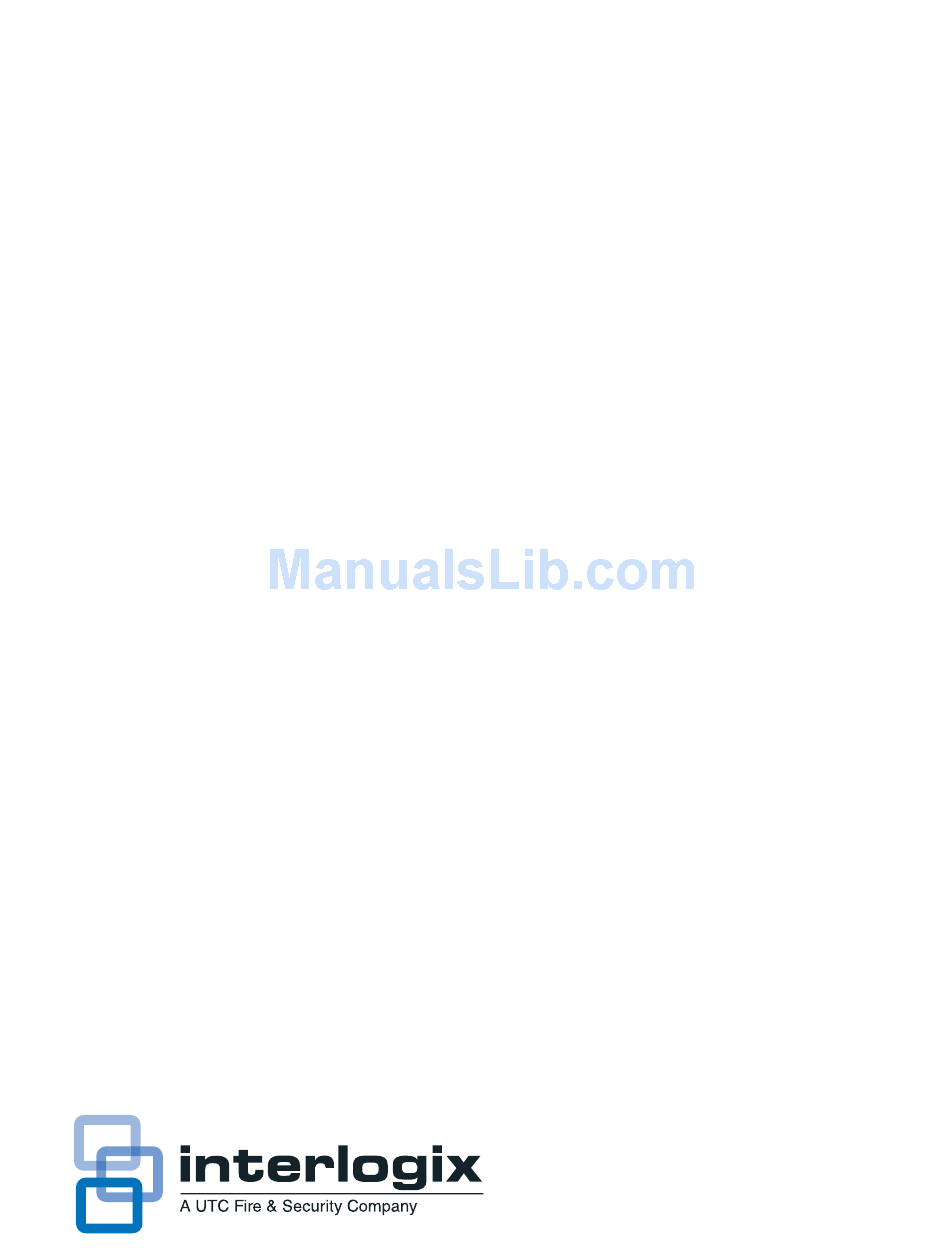

  • Page 1 UltraView PTZ Installation Manual...
  • Page 2 Interlogix is a trademark of UTC Fire & Security. UltraView PTZ is a trademark of UTC Fire & Security. Other trade names used in this document may be trademarks or registered trademarks of the manufacturers or vendors of the respective products.
  • Page 3 Software, at the sole discretion of UTC Fire & Security. To obtain a repair or replacement of nonconforming Software, contact UTC Fire & Security Customer Service toll-free at 888-437-3287 or online at www.interlogix.com during the Software Warranty Period.
  • Page 4 UltraView PTZ Installation Manual General. Any materials provided to You by UTC Fire & Security shall not be exported or reexported in violation of any export provisions of the USA or any other applicable jurisdiction. Any attempt to sublicense, assign, or transfer any of the rights, duties, or obligations hereunder shall be void.
  • Page 5 European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points. For more information, visit www.recyclethis.info. Contact information For contact information, see www.interlogix.com.
  • Page 6 UltraView PTZ Installation Manual...

  • Page 7: Table Of Contents

    Contents Preface..............ix Conventions used in this document.
  • Page 8 UltraView PTZ protocol functionality ........

  • Page 9: Preface

    Preface This is the Interlogix UltraView PTZ Installation Manual. This document includes an overview of the product and detailed instructions explaining: • how to install the housing; and • how to attach the pan/tilt/zoom (PTZ) camera assembly. There is also information describing how to contact technical support if you have questions or concerns.
  • Page 10 UltraView PTZ Installation Manual...

  • Page 11: Chapter 1. Introduction

    Chapter 1 Introduction This chapter provides an overview of your UltraView PTZ dome system, including product contents and system requirements. In this chapter: Product overview ..........2 Product contents .

  • Page 12: Product Overview

    27 for a list of supported protocols.) Installation of the UltraView PTZ line of domes is simplified because all power, data, video, and alarm connections are provided in the housing. Configuration parameters such as presets and tours unique to each installation site are stored in the housing memory.

  • Page 13: System Requirements

    UltraView PTZ domes. Operational requirements UltraView PTZ contains a built-in receiver that decodes commands originating from a compatible controlling device, such as a keypad or ASCII control software. A minimum of one controlling device is required for operation, as shown in Figure 1. In this typical DVR system, an operator can pan, tilt, and zoom the camera, find presets, and start preset and ShadowTours from the keypad.

  • Page 14: Minimum Load Requirements

    Alarms/ Outputs Minimum load requirements Table 1 lists the load requirements for all UltraView PTZ dome configurations. Table 1. Minimum load requirements of dome configurations Dome configuration Minimum load Rugged, cast aluminum pendant-mount housing (with any mount) 100 lb.

  • Page 15: Power Requirements

    Introduction Power requirements Every UltraView PTZ dome requires a 24 VAC power supply to operate the PTZ, camera, and heater/fan, if present. The startup and running power requirements vary depending on the model (Table 2). Table 2. Power requirements at 24 VAC (±4 VAC) operating voltage...

  • Page 16: Cable Requirements

    UltraView PTZ Installation Manual Figure 4. Three acceptable typical cabling scenarios Video (UTP) (two) Alarms Relays (two) (multiconnector) 3/4 in. dia. Power 3/4 in. dia. Power Video Video Data Data (two, daisy-chained) (two, daisy- Percentage conduit fill = 38%, includes: Percentage conduit fill = 53%, includes: •...

  • Page 17: Power Cable Size And Length Requirements

    23 W heater/fan (x2) (66 VA) (dia.) feet meters feet meters feet meters 2.60 1569 2.05 1.62 1.29 1.02 WARNING: Be aware that the power requirements for UltraView PTZ are different, which may require new cabling when replacing CyberDomes with UltraView PTZ domes.
  • Page 18 UltraView PTZ Installation Manual...

  • Page 19: Chapter 2. Housings And Cables

    Chapter 2 Housings and cables This chapter provides instructions for installing housings and cables. In this chapter: Backward compatibility with CyberDome I housings ....10 Various mounting and housing styles .

  • Page 20: Backward Compatibility With Cyberdome I Housings

    Lift and gain functionality. • Up-the-coax (UTC) protocol support Also, if you install an UltraView PTZ in an older CyberDome I housing, you must install a fan assembly on the tilt arm of the PTZ. (See Fan installation on page 19 for instructions.) You may use the fan from your...
  • Page 21 Chapter 2 Housings and cables Figure 6. Basic housing styles Flush-mount Plastic Cast aluminum Heavy-duty pendant-mount pendant-mount...

  • Page 22: Wiring Best Practices

    UltraView PTZ Installation Manual Wiring best practices To ensure the wires are connected properly and not at risk of being cut or frayed, follow these guidelines. Pendant-mount wire routing Cables run down through the cable entry hole and the dust seal. Take care to avoid damaging the dust seal during installation.

  • Page 23: Flush-Mount Wire Routing

    Chapter 2 Housings and cables Flush-mount wire routing Cables are fed through the cable entry hole in the side (or top) of the housing. Route the wires through the top or side of the housing and around the camera bracket. Note: Keep service loops out of housing area when possible.

  • Page 24: Pendant-Mount Housings

    UltraView PTZ Installation Manual Pendant-mount housings Pendant-mount and flush-mount housings require different preparation of the mounting surface and different installation procedures of the housings. Follow the instructions given here for pendant-mount housings. Pendant-mount housings can be mounted to a pipe to lower them from a ceiling or to a wall-mount arm to extend them from a wall.
  • Page 25 Chapter 2 Housings and cables To install the housing to a pipe or mount, see Figure 11 on page 15 and do the following: 1. Ensure the glued-in O-ring is installed in the pipe-mount adapter. 2. Attach the pipe-mount adapter onto the housing using the three 10-32 UNF x 5/8 in. long screws. 3.

  • Page 26: Flush-Mount Housings

    UltraView PTZ Installation Manual Flush-mount housings Flush-mount and pendant-mount housings require different preparation of the mounting surface and different installation procedures of the housings. Follow the instructions given here for flush-mount housings. CAUTION: The flush-mount housing is for indoor applications only. Do not expose it to moisture, or the unit may become damaged.

  • Page 27: Installing The Housing

    Chapter 2 Housings and cables Installing the housing With the surface prepared and/or the mount now installed, install the housing. CAUTION: All flush-mount installations must have a fan. If you are installing a flush-mount housing that does not have a fan, see Fan installation on page 19.
  • Page 28 UltraView PTZ Installation Manual Figure 13.Installing the flush-mount housing Building superstructure Safety cable Housing tabs (3) (screwed open and down against the mount or 3/4 in. conduit knockouts (2) Ceiling ring Angle brackets (2) Ceiling Nipple Cables fed (snipped off to access...

  • Page 29: Fan Installation

    UltraView PTZ flush-mount housing kits come with a fan assembly, which you will need to install on the tilt arm of the PTZ unit. If you are retrofitting an existing CyberDome I flush-mount housing with a UltraView PTZ PTZ unit, you will also need to install a fan. You may use the fan from your CyberDome I 1046543...

  • Page 30: Preparing The Cables

    UltraView PTZ Installation Manual Preparing the cables Your environment’s video cabling (coaxial or UTP) and the number of video, data, and power cables you will be using will dictate the types and quantities of cables you need to prepare. To prepare the facility camera cables, terminate the cable ends as shown in Figure 16. Allow approximately 3 in.

  • Page 31: Chapter 3 Wiring

    Chapter 3 Wiring This chapter explains how to wire the dome. One of the two boards that you will be handling while you wire the dome is inside of the housing. In this chapter: Components used for basic and advanced operation .

  • Page 32: Components Used For Basic And Advanced Operation

    UltraViews PTZ Installation Manual Components used for basic and advanced operation Connect data, video, and power cables to the components in the dome for basic operation (Figure 17). How many cables you will feed into the housing depends upon how many video, data, and power cables you will be using. For pipe capacity, see Power cable size and length requirements on page 6.

  • Page 33: Alarm/Contact Connectors

    Chapter 3 Wiring Table 5. UltraViews PTZ housing interface board UTC LED functions Configuration type LED Description UPIB housing Power LED Indicates power is applied to the housing. Green Indicates communication activity: • Blinks at a fast rate (7 Hz) when FSK (frequency shift keying) decoder is tuning.

  • Page 34: Wiring The Housing Board

    UltraViews PTZ Installation Manual Wiring the housing board To wire the housing board, do the following: WARNING: Do not run any cables next to the heaters. Doing so could damage the dome or cause an electrical fire. 1. Connect the facility data cables to the main connections, which are the B and A terminals on the provided 6-pin or 2-pin terminal strip (Figure 20).
  • Page 35 Chapter 3 Wiring 3. Connect the facility power cable (Figure 22). Use the provided 2-pin power terminal strip. If you are using a heavier gauge cable, ensure that it is properly seated in the connector. Figure 22.Power connection Power connector Power LED When power is received by the housing board through the power connection, the housing board’s diagnostic power LED will appear orange.

  • Page 36: Setting The Termination

    UltraViews PTZ Installation Manual Setting the termination You must set the termination of the data signal in each dome (or device) to on or off. Only two of the four switches (3 and 4) on the DIP switch block are used (Figure 23). Switches 1 and 2 are not used at this time, so it does not matter whether they are set to on or off.

  • Page 37: Chapter 4 Camera Assembly, Shroud, Bubble Dome

    Chapter 4 Camera assembly, shroud, bubble dome This chapter provides instructions for installing the camera assembly, a shroud, and a bubble dome. In this chapter: Camera assembly preparation and installation ....28 Setting the protocol .

  • Page 38: Camera Assembly Preparation And Installation

    Before you install the camera assembly in the housing, you should set the address and protocol DIP switches. UltraView PTZ has two multiposition DIP switch blocks: one on the upper board and one on the main board of the camera assembly (Figure 24). These DIP switches set the communication protocol and assign the camera a site address number respectively.

  • Page 39: Setting The Protocol

    Camera assembly, shroud, bubble dome Setting the protocol UltraView PTZ can use different protocols for communication. To select a protocol, you must set the protocol DIP switches to the correct sequence of 1s (on) and 0s (off). To set the protocol DIP switches to select a protocol, do the following: 1.

  • Page 40: Setting The Camera's Address

    UltraView PTZ Installation Manual Setting the camera’s address To set the DIP switches to indicate a site number, do the following: 1. Locate the site address DIP switch block (Figure 24). 2. Using Table 7, determine which DIP switches when turned on will add up to the site number for the camera and set those switches to the on position.
  • Page 41 Chapter 4 Camera assembly, shroud, bubble dome Table 8. Address DIP switch settings for cameras 1 to 64 Unit DIP switch Unit DIP switch Unit DIP switch Unit DIP switch...

  • Page 42: Installing The Camera Assembly

    UltraView PTZ Installation Manual Installing the camera assembly Installing the camera involves securing the pan/tilt assembly to the upper housing. Note: Do not install the pan/tilt assembly while power is applied to the housing. To install the pan/tilt assembly, see Figure 26 and do the following: 1.

  • Page 43: Installing A Camera Shroud

    Chapter 4 Camera assembly, shroud, bubble dome Installing a camera shroud To install a camera shroud, see Figure 27 and do the following: 1. Slide the camera guide into the two slots in the shroud and make sure the camera can tilt without being limited or blocked.

  • Page 44: Installing A Bubble Dome

    UltraView PTZ Installation Manual Installing a bubble dome There are a variety of bubble domes and housings. The interlocking clips and safety cables may vary, but all domes have them. CAUTION: To prevent damage, do not touch the dome with your bare hands, do not place the dome face down on any surface, and protect the dome from dust.
  • Page 45 Chapter 4 Camera assembly, shroud, bubble dome Figure 28.Attaching the bubble dome to the housing (cameras not shown to show safety clips clearly) Flush-mount housing Plastic pendant-mount housing and Flush-mount housing and bubble ring Plastic pendant-mount housing and bubble ring and dome ring dome ring Cameras not shown...
  • Page 46 UltraView PTZ Installation Manual...

  • Page 47: Chapter 5 Troubleshooting, Maintenance, Support

    This chapter provides information to help you troubleshoot problems, perform simple preventive maintenance procedures, and contact technical support in case you need assistance with your Interlogix equipment. In this chapter: Troubleshooting ..........38 Maintenance .

  • Page 48: Troubleshooting

    UltraView PTZ Installation Manual Troubleshooting This section provides information to help you diagnose and solve various problems that may arise while configuring or using your Interloix product. Housing board power indication When power is received by the housing board through the power connection, the housing power LED 2 appears orange (Figure 29).

  • Page 49: Maintenance

    Chapter 5 Troubleshooting, maintenance, support Finally, try resetting (cycling) the power to the dome by turning the power off then on. Maintenance Perform the following maintenance, when necessary or directed to. Cleaning the bubble dome Use the following procedures for cleaning the dome. Be aware that the interior of the dome requires extra care in cleaning.

  • Page 50: Contacting Us

    Note: Be ready at the equipment before calling. Online Another great resource for assistance with your Interlogix product is our online publication library. To access the library, go to our website at the following location: http://www.interlogix.com Many Interlogix documents are provided as PDFs (portable document format). To read these documents, you will...
  • Page 51 Appendix A Mount kits This appendix provides the installation instructions for the mounts that are shipped with the dome kits. Dome kits include a wall-mount arm and a T-bar support kit. Instructions for all other mounts (arms, adapters, and brackets) are shipped with those mounts.

  • Page 52: Gea-102 Wall-Mount Arm

    UltraView PTZ Installation Manual GEA-102 wall-mount arm This cast aluminum wall-mount arm is used to mount a dome to a vertical surface. It is for indoor or outdoor use and mates with both the plastic indoor and cast aluminum outdoor pendant housings. It can be attached directly to a vertical surface or mated with a bracket (corner-mount, pole-mount, or roof-mount).
  • Page 53 Figure 31.Removing the access cover 4. Using the arm as a template, place it level against the mounting surface and mark the position of the mounting holes, and if needed, the cable entry hole (Figure 32). Figure 32.Marking the mounting and cable entry holes 5.
  • Page 54 UltraView PTZ Installation Manual Figure 33.Fastening the arm to the mounting surface Note: Adhere to minimum load requirements. See Table 1 on 8. If needed, seal all mounting holes so that no moisture can leak into the mounting surface. 9. Push inside the arm or pull taut any looped cables that are extending out of the access area.

  • Page 55: Opening A Conduit Hole

    Figure 35.Attaching the housing safety cable to the arm safety chain Quick tie Safety chain Clip Safety cable 12. Return to Installing the housing on page 12 to finish installing the dome. Opening a conduit hole Open a conduit hole for a 3/4 in. (19 mm) or 1/2 in. (13 mm) conduit connector, if you need to bring the facility cables in through the side of the arm.
  • Page 56 UltraView PTZ Installation Manual Figure 36.Opening a conduit hole Pilot hole 3/8 in. (10 mm) Enlarged hole For 3/4 in. conduit: 1-7/64 in. (28 mm) For 1/2 in. conduit: 7/8 in. (22 mm)

  • Page 57: Gea-114 T-Bar Ceiling Support Kit

    GEA-114 T-bar ceiling support kit The T-bar support kit is used to install a flush-mount dome into a paneled T-bar ceiling (Figure 37). T-bar ceilings consist of a grid of metal T-bars that support removable panels. The kit distributes the weight of the dome between the T-bars of the ceiling, instead of resting it on a panel.
  • Page 58 UltraView PTZ Installation Manual Figure 38.Aligning the angle brackets and ceiling ring on the panel Angle brackets Ceiling Center ring mounting holes of ring and brackets Removable ceiling panel 3. Using the ceiling ring as a template, mark the position of the center mounting holes and the housing passthrough hole on the removable ceiling panel (Figure 39).
  • Page 59 Figure 40.Fastening the support kit onto the removable ceiling panel Flush-mount housing Ceiling ring Angle brackets Removable Note: Adhere to minimum load ceiling panel requirements. See Table 1 on Viewed from side (shown with housing) 7. Using the last four of the fasteners provided, fasten the ends of the angle brackets to the ceiling panel. 8.
  • Page 60 UltraView PTZ Installation Manual...
  • Page 61 This appendix provides information on protocol functionality. In this appendix: UltraView PTZ protocol functionality ......52 Equipment protocol testing list .

  • Page 62: Ultraview Ptz Protocol Functionality

    UltraView PTZ Installation Manual UltraView PTZ protocol functionality All Protocols support the following basic commands: • Pan and tilt • Zoom—wide and telephoto • Iris—open and close • Focus—near and far • Addressing cameras Note: Shaded cells in the tables below are unconventional by that protocol’s standards.
  • Page 63 Table 12. VCL commands supported Command Note Access menu mode Preset 95 Set preset out of GUI See VCL keypad documentation Call preset # See VCL keypad documentation Start tour # See VCL keypad documentation Turn 180 degrees See VCL keypad documentation Toggle autoiris See VCL keypad documentation Toggle autofocus...
  • Page 64 UltraView PTZ Installation Manual Table 15. Panasonic commands supported Command Note Set preset out of GUI See Panasonic keypad documentation Go to preset XX See Panasonic keypad documentation Enter/exit into menu mode Press the button of “CAMERA SETUP/SETUP/PROGRAM” for 2 seconds while the “SHIFT”...
  • Page 65 Table 16. Bosch RS-232 commands supported (continued) Command Note Program learn tour 2 ON-101-ENTER Show splash screen ON-997-ENTER Table 17. KD6 commands supported Command Note Set preset out of GUI See KD6 keypad documentation Go to preset (preshot) XX See KD6 keypad documentation Turn off coordinate display Diagnostics display off Turn on coordinate display...

  • Page 66: Equipment Protocol Testing List

    Table 18. Keypads used for testing protocols Protocol Keypad used Interlogix Digiplex RS-422 4800 baud KTD-405 Interlogix Impac RS-485 9600 baud (+KB3) KTD-405 + CBR-KB3 Interlogix ASCII RS-422 9600 baud KTD-405 + KTD-313-1 Pelco D autobaud MPT9500 @ 2400 baud & KBD300 @ 4800 baud, PC @ 9600 baud Pelco P autobaud KBD300 @ 4800 baud, PC @ 2400 &...
  • Page 67 Index ASCII control software ................3 housings....................2 aluminum pendant-mount ..............10 flush-mount ................10, 16, 18 heavy-duty..................4, 10 mounting styles .................. 10 BNC connectors ..................6 pendant-mount ............... 10, 14, 15 boards plastic pendant-mount................ 10 active housing card (AHC) ..............22 housing..................
  • Page 68 UltraView PTZ Installation Manual product safety terms and symbols ................ ix contents ....................2 site address ..................... 28 overview ....................2 system requirements ................. 3 protocols ....................29 setting a protocol ................29 PTFE thread sealing tape................ 15 PTZ assembly ................... 2 technical support ..................
