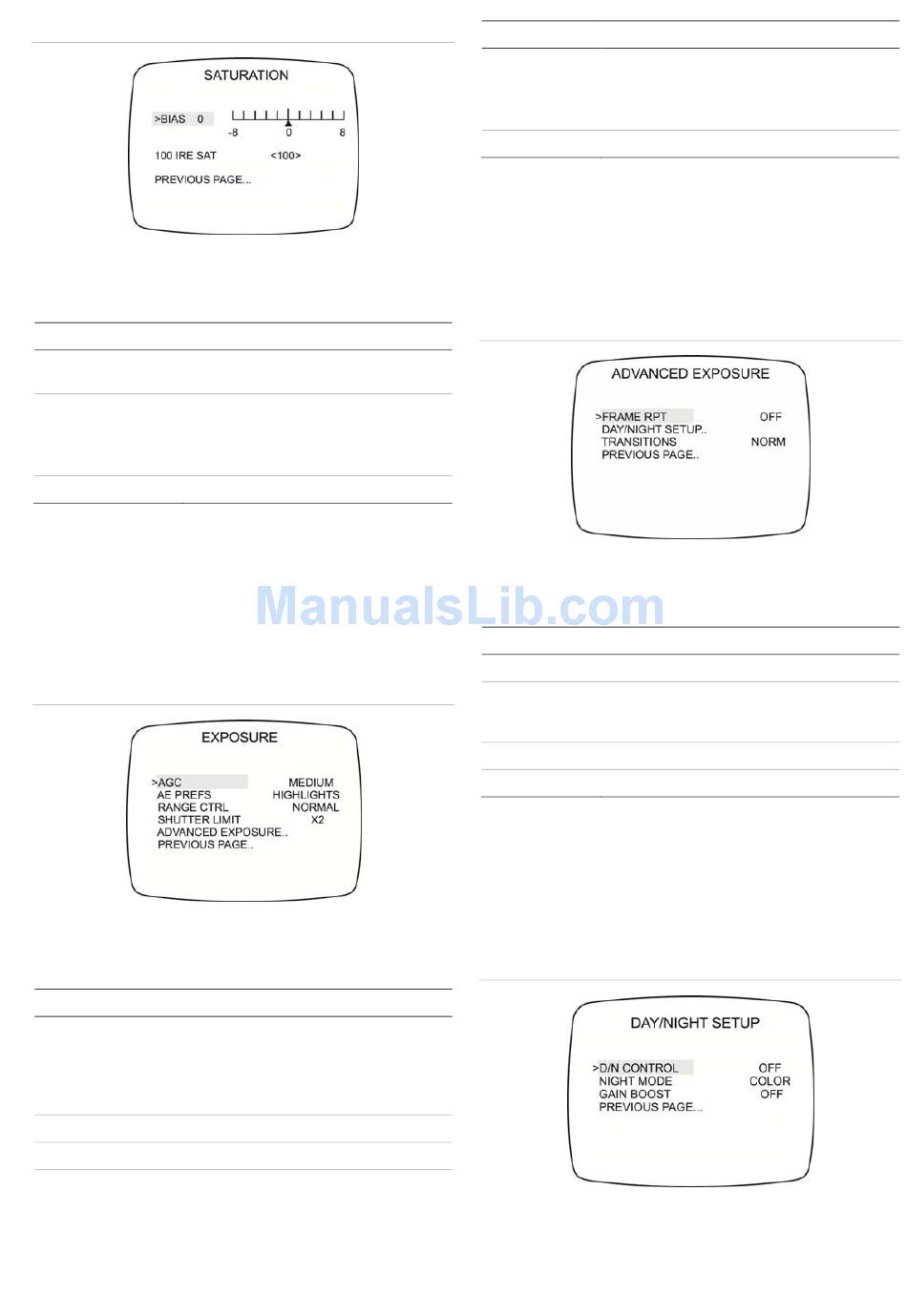

Figure 14: Saturation menu
Table 9 below lists the Saturation setup options.
Table 9: Saturation menu options
Menu option Description
BIAS scale Use the left and right buttons to raise or
lower the image sharpness level.
IRE saturation IRE is the measurement of composite video
signals. This value shows the usable light
level.
Enter a value between 100 and 130.
Previous page Returns to previous menu.

Exposure menu

From the Main menu, use the arrow buttons to select
Exposure and press the center button. The Exposure
screen appears.
Figure 15: Exposure menu
Table 12 lists the Exposure setup options.
Table 10: Exposure options
Menu option Description
AGC Configures auto gain control (AGM). The image
quality is automatically adjusted in low light
conditions.
Select one of the options: Medium, High, Custom,
Low.
AE preferences Highlights or Shadows.
Range CTLR Normal, High, or Custom.
Shutter limit Configures shutter limit.
Select one of the options: X2, X4, X8, X16, X32,
Off.
UVC-XP4DN-HR(-P) Camera User Manual
Menu option Description
Advanced Configures frame repeat, day/night setup,
exposure menu transitions.
See "Advanced Exposure" below for setup
information.
Previous page Select to return to previous menu.
Advanced Exposure
From the Advanced Exposure menu, use the arrow
buttons to select Advanced Exposure and press the
center button.
Figure 16: Advanced exposure menu
Table 11 below lists Advanced Exposure setup options.
Table 11: Advanced exposure menu options
Menu option Description
Frame repeat Off, 2X, Set, or Freeze.
Day/night setup Automatically switch the camera mode from color
(day) to monochrome (night). See "Day/night
setup" below for setup information.
Transitions Normal, Fast, or Slow.
Previous page Returns to previous menu.
Day/night setup
From the Advanced exposure menu, use the arrow
buttons to select Day/night setup and press the center
button.
Figure 17: Day/night setup menu
Table 12 on page 8 lists the Day/Night setup options.
