UVC-XP4DN-HR(-P) Camera User
Manual
Content

Product description

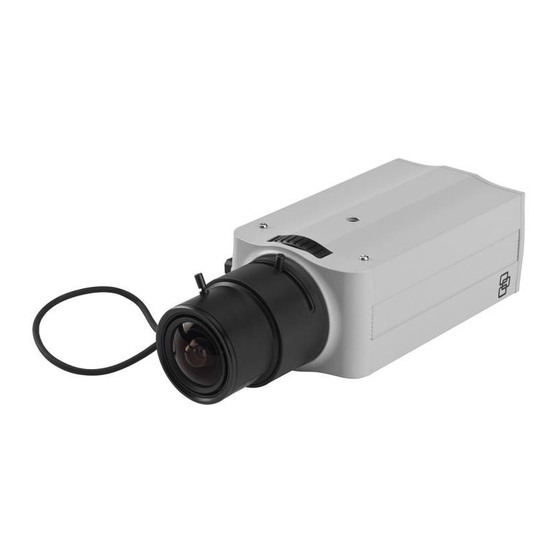

This color video camera is the next generation in wide
dynamic range cameras. It uses the latest in UTC
Xposure image analysis technology.
The sensor architecture provides unequaled wide
dynamic range performance and improves how the
camera deals with low-light conditions.
Another revolutionary feature of the UltraView XP4 is
dual-temperature calibration. The UVC-XP4-HR is
calibrated at the factory, so the camera knows how to
adjust gain, white balance, and other settings based on
its environment. The camera is able to get the best
possible images in any situation and at any
temperatures within its operating specifications.
© 2012 UTC Fire & Security. All rights reserved.

User guidelines

Use the following guidelines:
•
Program as many camera settings as possible
before mounting the camera. Take appropriate
safety precautions while completing programming
after installation.
•
Always use a 12 VDC or 24 VAC UL listed Class 2
power supply to power the camera.
Do not use the camera outside the temperature
range specifications: -10 to +50 °C (14 to 122 °F).
•
If the light source where the camera is installed
experiences rapid, wide- variations in lighting, the
camera may not operate as intended.
WARNING: To reduce the risk of fire or electronic
shock, do not expose the camera to rain or moisture and
do not remove the cover or back.

Package contents

Check the package and contents for visible damage. If
any components are damaged or missing, do not
attempt to use the unit; contact the supplier immediately.
If the unit is returned, it must be shipped back in its
original packaging.
Package contents:
•
Quick Start Guide
•
Camera
•
C-mount adaptor

Installation

This chapter provides information on how to install the
camera.

Video connections

To make cable connections, do the following:
1. Connect a coaxial cable terminated with BNC
connectors between the MON OUT connector of the
P/N 1079202B-EN • REV R1.0 • ISS 15JUN12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UVC-XP4DN-HR(-P) and is the answer not in the manual?

Questions and answers

Related Manuals for Interlogix UVC-XP4DN-HR(-P)

Summary of Contents for Interlogix UVC-XP4DN-HR(-P)

  • Page 1: Table Of Contents

    UVC-XP4DN-HR(-P) Camera User Manual Content User guidelines Product description 1 Use the following guidelines: User guidelines 1 • Program as many camera settings as possible Package contents 1 before mounting the camera. Take appropriate Installation 1 safety precautions while completing programming Video connections 1 after installation.

  • Page 2: Attach The Lens

    Connect power camera and the video in connector on a test or local monitor. Caution: Use direct plug-in UL listed power supplies 2. Connect a coaxial cable terminated with BNC marked Class 2 or LPS (limited power source) of the connectors between the VIDEO OUT connector of required output rating as listed on the unit.

  • Page 3: Main Menu

    Figure 2: OSD menu controls Prev. Returns to the previous menu. Save Saves changes. Cancel Cancels and returns to live mode. Presets menu Left Right Table 2 lists the presets for common lighting conditions. Select the option that suits your camera’s situation. Enter Down Table 2: Preset menu options...

  • Page 4: Viewing Menu

    Figure 6: Motion detection menu Menu option Description Motion detection Configures detection threshold, PTZ settings, and the location and size of the detection zone. See “Motion detection” below for setup information. WDR setup Configures wide dynamic range (WDR). WDR allows you to see details of objects in shadows or details of objects in bright areas of frames that have high contrast between light and dark areas.

  • Page 5: Exposure Menu

    Figure 7: Viewing menu Menu option Description B/W control Enable or disable day/night mode. Enable the option for automatic day/night control. Disable for color-only mode (day mode). White balance menu From the Main menu, use the arrow buttons to select White balance and press the Enter button.

  • Page 6: Contact Information

    Returns to previous menu. Regulatory information Copyright © 2012 UTC Fire & Security. All rights reserved. Trademarks and Interlogix, UltraView brand and logos are trademarks of UTC Fire & Security. patents Other trade names used in this document may be trademarks or registered trademarks of the manufacturers or vendors of the respective products.
