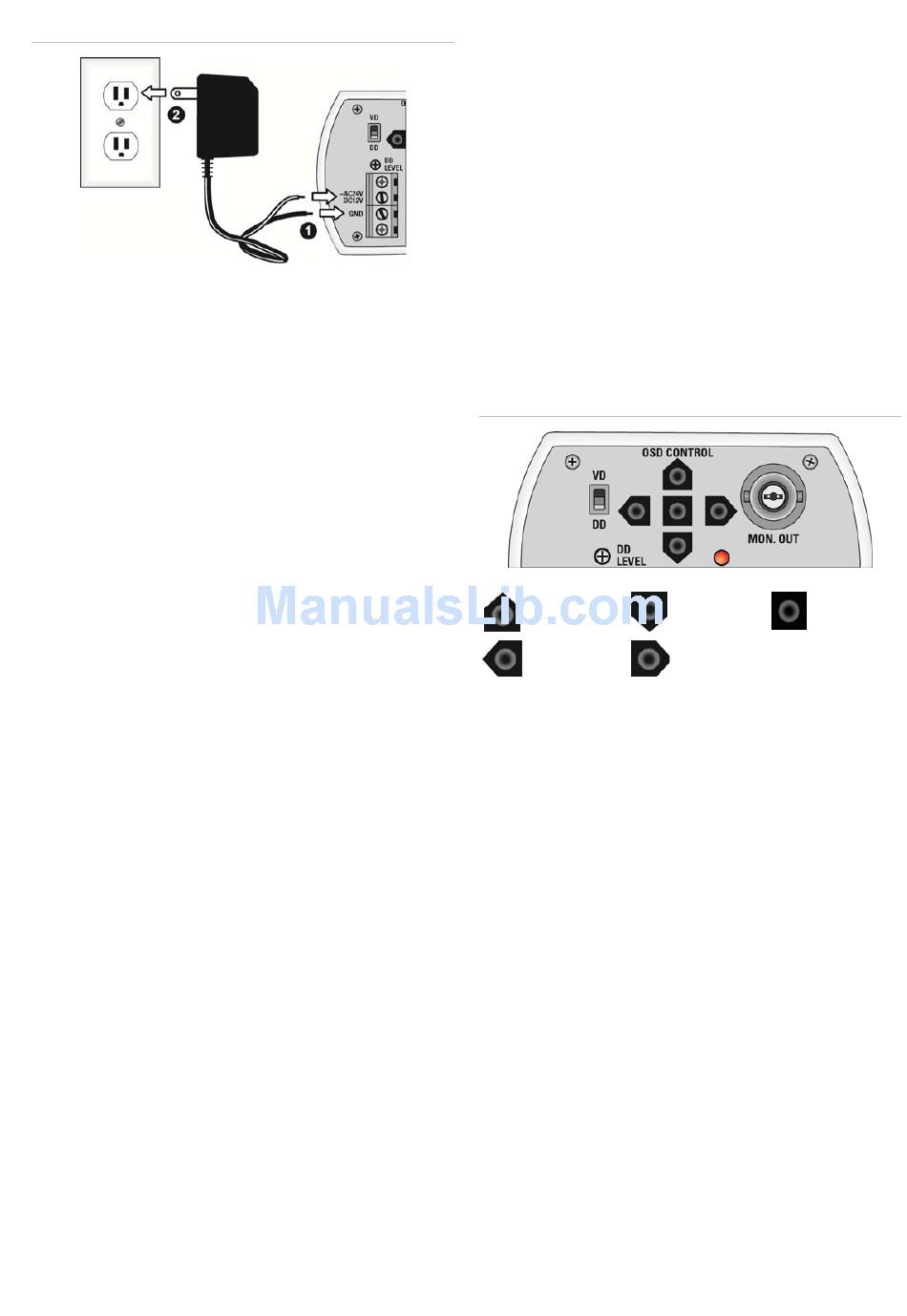

Figure 4: Power connection
1. With a screwdriver, loosen the GND and
~AC24V/DC12V terminal screws on the terminal
block (see Figure 4).
2. Connect a universal 12 VDC, 24 VAC power supply
to the terminal block.
Note: The terminal block is not polarity- sensitive.
Either power lead can be connected to either
terminal connector. There is no need for an isolated
ground wire. The two power terminals can accept
any polarity and any combination of power that
equals 12 VDC or 24 VDC.
3. Retighten the terminal screws until snug, ensuring
that the power leads are secure.
4. Supply power to the unit by plugging the power
supply into a proper source.
Note: The power LED illuminates to show that the
camera is receiving power. If it does not illuminate,
check the terminal block connections and the power
source

Mount the camera

To mount the camera, attach the camera to the
mounting surface using the appropriate fasteners.

Connect the monitor

Program the cameras by attaching a standard video
monitor to the system.
To connect the monitor, do the following:
1. Plug the monitor output cable to the video monitor
output connector (see Figure 1 on page 2.)
2. Connect the BNC cable to the video monitor.
3. Press Enter (see Figure 5) to display the Setup
menu.
UVC-XP4DN-HR(-P) Camera User Manual

Programming

This chapter describes how to navigate the setup menus
to adjust the camera settings.

OSD controls

Use the OSD (on-screen display) setup menus to
program the camera. See Figure 5 below.
There is a menu map on the back page of the manual
that shows an overview of the menus (see "Menu Map"
on page 10.)
Note: If you do not press a button for two minutes, your
changes are saved, and the camera returns to its normal
function.
Figure 5: OSD menu controls
Up
Left
Note: Wherever the PREVIOUS PAGE option appears,
use it to leave the current menu and return to the
previous menu. Move to the PREVIOUS PAGE option
and press the center button.

Main menu

The camera is configured through the setup menus
which appear on-screen (see Figure 6).
To access and navigate the main menu, press and hold
the center button of the OSD (See Figure 5). Use the up
or down buttons to move between items, and press the
center button to select that item. Use the left and right
buttons to select the different options available for the
item.
Down Enter
Right
