UVC-XP4DN-HR(-P) Camera User
Manual
Content


















Product description

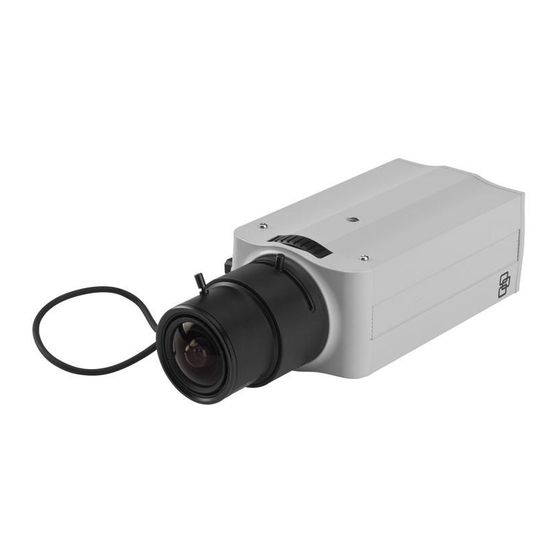

This color video camera is the next generation in wide
dynamic range cameras. It uses the latest in UTC
Xposure image analysis technology.
The sensor architecture provides unequaled wide
dynamic range performance and improves how the
camera deals with low-light conditions.
Another revolutionary feature of the UltraView XP4 is
dual-temperature calibration. The UVC-XP4-HR is
calibrated at the factory, so the camera knows how to
adjust gain, white balance, and other settings based on
its environment. The camera is able to get the best
possible images in any situation and at any
temperatures within its operating specifications.
P/N 1079202A-EN • REV R0.1 • ISS 16DEC11






User guidelines

Use the following guidelines:
•
Program as many camera settings as possible
before mounting the camera. Take appropriate
safety precautions while completing programming
after installation.
•
Always use a 12 VDC or 24 VAC UL listed Class 2
power supply to power the camera.
Do not use the camera outside the temperature
range specifications: -57 to 122°F (-50 to +50°C).
•
If the light source where the camera is installed
experiences rapid, wide- variations in lighting, the
camera may not operate as intended.
WARNING: To reduce the risk of fire or electronic
shock, do not expose the camera to rain or moisture and
do not remove the cover or back.

Package contents

Check the package and contents for visible damage. If
any components are damaged or missing, do not
attempt to use the unit; contact the supplier immediately.
If the unit is returned, it must be shipped back in its
original packaging.
Package contents:
Multilingual Installation Sheet
CD with User Manual in several languages
Camera
C-mount adaptor
CAUTION: Use direct plug-in UL listed power supplies
marked Class 2 or LPS (limited power source) of the
required output rating as listed on the unit.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UVC-XP4DN-HR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Interlogix UVC-XP4DN-HR

Summary of Contents for Interlogix UVC-XP4DN-HR

  • Page 1: Table Of Contents

    UVC-XP4DN-HR(-P) Camera User Manual Content User guidelines   Product description 1 Use the following guidelines:   User guidelines 1 • Program as many camera settings as possible   Package contents 1 before mounting the camera. Take appropriate   Installation 2 safety precautions while completing programming  ...

  • Page 2: Installation

    2. Set to DD (direct drive) for autoiris lenses without amplifier Caution: Use direct plug-in UL listed power supplies marked Class 2 or LPS (limited power source) of the 3. DD adjustment. required output rating as listed on the unit. UVC-XP4DN-HR(-P) Camera User Manual...

  • Page 3: Mount The Camera

    1. Plug the monitor output cable to the video monitor item. output connector (see Figure 1 on page 2.) 2. Connect the BNC cable to the video monitor. 3. Press Enter (see Figure 5) to display the Setup menu. UVC-XP4DN-HR(-P) Camera User Manual...

  • Page 4: Presets Menu

    This mode produces Select one of the four options available: safe flatter images than modes with lower dynamic area, center spot, Lower 1/3, or Full screen. range. Previous page Returns to previous menu. UVC-XP4DN-HR(-P) Camera User Manual...
  • Page 5 Define the on-screen area to trigger a response. Select to launch Alarm zone setup menu. This menu lets you select the location and size of the detection zone. Use the arrow buttons to move and size the selection box. UVC-XP4DN-HR(-P) Camera User Manual...

  • Page 6: Viewing Menu

    From the Advanced viewing menu, use the arrow From the Advanced viewing menu, use the arrow buttons to select Gamma and press the center button. buttons to select Saturation and press the center button. The Gamma menu screen appears. The Saturation screen appears. UVC-XP4DN-HR(-P) Camera User Manual...

  • Page 7: Exposure Menu

    AE preferences Highlights or Shadows. Range CTLR Normal, High, or Custom. Shutter limit Configures shutter limit. Select one of the options: X2, X4, X8, X16, X32, Table 12 on page 8 lists the Day/Night setup options. Off. UVC-XP4DN-HR(-P) Camera User Manual...

  • Page 8: White Balance Menu

    See “Advanced white balance” below for setup information. System info menu Displays firmware version. Previous page Returns to previous menu. Reset camera Performs camera reset. Save user settings Saves all current changes. Restore user settings Discards all current changes. UVC-XP4DN-HR(-P) Camera User Manual...

  • Page 9: Contacting Support

    Copyright unsorted municipal waste in the European Union. Trademarks and For proper recycling, return this product to your Interlogix, UltraView brand and logo are patents local supplier upon the purchase of equivalent trademarks of UTC Fire & Security. new equipment, or dispose of it at designated Other trade names used in this document may be collection points.

  • Page 10: Menu Map

    Menu Map UVC-XP4DN-HR(-P) Camera User Manual...
