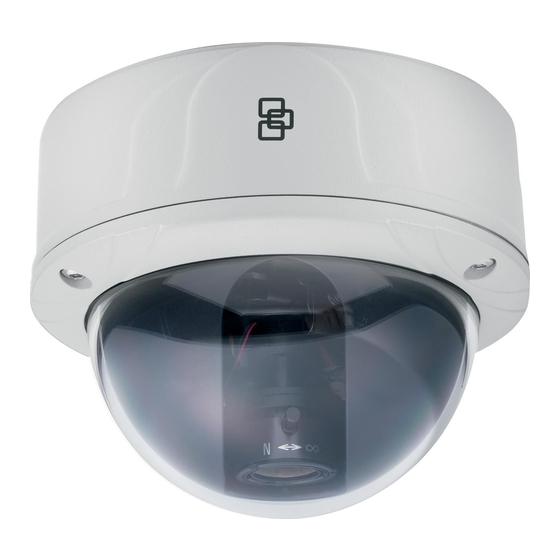

- Page 1 UltraView UVD-6130VE-2 WDR Dome Camera User Manual P/N 1072549A • REV 1.0 • ISS 18JUN12...
- Page 2 Copyright © 2012 UTC Fire & Security. All rights reserved. Trademarks and The TruVision and Interlogix names and logo are trademarks of patents UTC Fire & Security. Other trade names used in this document may be trademarks or registered trademarks of the manufacturers or vendors of the respective products.
-
Page 3: Table Of Contents
Content Product overview 2 Package Contents 2 Features 2 User guidelines 3 Product description 3 OSD control pad 3 Installation 5 Mount the camera 5 Connect the cables 5 Adjust the lens 5 Adjust the focus and zoom 6 Programming 7 Access the Setup menu 7 Select the lens type 8 Set shutter/AGC 8... -
Page 4: Product Overview
Product overview The UVD-6130VE-2 WDR camera uses a digital signal processor (DSP) to process video signals. The camera includes a microcontroller to provide high- quality images with high-color reproduction and sharp pictures. Package Contents The package contains the following: • Dome camera •... -
Page 5: User Guidelines
User guidelines • Program the camera settings as much as possible before mounting the camera. Take appropriate safety precautions while completing programming after installation. • Always use a 12 VDC or 24 VAC UL listed Class 2 power supply to power the camera. - Page 6 Figure 2: OSD control pad OSD control pad Table 1: OSD control pad functions Pad directions Description Moves the cursor upward to select an item. Moves the cursor left to select or adjust the options of the selected Left item. Moves the cursor to the right to select or adjust the options of the Right selected item.
-
Page 7: Installation
Installation Please check the package contents and make sure that the device in the package is in good condition and all the assembly parts are included. To install the camera you will need to prepare the mounting surface, mount the camera, make cable connections, adjust the lens and then secure the dome cover securely. -
Page 8: Adjust The Focus And Zoom
Figure 3: Camera adjustment Platform horizontal adjustment (0 to 180°) Platform vertical adjustment (0 to 90°) Rotor horizontal adjustment (0 to 350°) To adjust the lens: See Figure 3 above. 1. To adjust the horizontal angle of the platform up to 180 degrees, turn the platform. -
Page 9: Programming
Programming Once the camera hardware has been installed, the camera can then be configured. Access the Setup menu The Setup menu provides access to the camera configuration options. The on- screen display (OSD) is only available in English. Program the camera by attaching a standard video monitor to the system. Figure 5: The Setup menu screens Table 2: Setup menu description Menu item... -
Page 10: Select The Lens Type
To access the Setup menu: 1. Press the OSD control pad (Enter) to access the Setup menu and its submenus. 2. Push the pad up, down, left and right to move between menu options. 3. Press the OSD control pad to select an option. 4. - Page 11 Automatic shutter menu: Select the parameters for high and low luminance conditions: High Luminance: Sets the lux level for bright light conditions such as daylight. Mode: When lens type is AUTO IRIS, you can choose SHUT+AUTO IRIS or AUTO IRIS mode. When the lens type is manual, only SHUT mode is available. Brightness: Select the brightness level to which the iris and shutter speed will adjust automatically.
-
Page 12: Adjust The Picture Characteristics
Traffic shutter menu: Shutter: Set the manual shutter to 1/60(1/50), 1/100(1/120), 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000, 1/20000 or 1/50000. Select a higher value to see movement and a lower value to see clearer images. Low luminance: Sets the lux level for low light conditions Mode: Only AGC available. -
Page 13: Set Wdr
Menu Item Description ATW (automatic tracing white balance) limits the color temperature range between 2,500 to 8,500˚K to reduce excessive compensation for a large single-color object. Use it to automatically adjust the WB in real time as the lighting conditions change. It can be used for both indoor and outdoor locations. -
Page 14: Set Image Noise Reduction
Adjust the mode by pressing left or right to cycle between Full and Normal. If you select Full Mode, adjust the contrast by pressing left or right to cycle between Low, Midlow, Mid, Midhigh or High. Set image noise reduction In the Setup menu, go to NR Setup and select the desired digital noise reduction... -
Page 15: Set Day/Night Mode
HLC: Enable or disable the option. Default is Off. Clip level: Adjust the level between from Low, Midlow, Mid, Midhigh, High or Off.. Scale: Adjust the level between 0 and 255. BLC: Enable or disable the option. Set Day/Night mode In the Setup menu, select Day/Night to open the day/night menu. -
Page 16: Set E-Zoom
Caution: If there is a minimal difference between the Day→Night and Night→Day values, then camera may switch between Day and Night mode Set E-zoom Digital zoom (E-zoom) is the electronic magnification of a view. In the Setup menu, select Ezoom to open the menu. -
Page 17: Set Motion Detection
Mode: Enable or disable the selected mask. Position: Press Enter to get the submenu to set position the mask on screen. values. Color: Select the color of the privacy mask: White, Red, Black, Green, Blue, Yellow, Cyan or Magenta. Transp: Select the transparency shade of the privacy mask. The privacy mask is fully transparent at value 0.00 and not transparent at 1.00. -
Page 18: Set The Camera Id
Set the camera ID In the Setup menu, go to Camera ID to open its menu. Press Enter to display the menu. The camera ID displayed on-screen can have up to 40 characters. Camera ID input line Command line To enter a character, move the cursor to the desired character and press Enter to select it. -
Page 19: Specifications
Specifications Model UVD-6130VE-2-P / UVD-6130VE-2-N Lens type Varifocal: 2.8 to 10 mm Power supply 24 VAC / 12 VDC Current 300 mA Max: 450 mA (heater on) Power consumption Max: 10.8 W (heater on) Operating temperature -30 to +50 °C (-22 to 122 °F) Weight 1130 g (2.49 lbs) Dimensions... -
Page 20: Menu Map
Menu Map UltraView UVD-6130VE-2 WDR Dome Camera User Manual...
