Interlogix UltraView UVD-6130VE-2-P Quick Start Manual

UltraView UVD-6130VE-2 WDR Dome Camera

Quick Start Guide

Introduction
This is the Quick Installation Guide for the UVD-6130VE-2 WDR color
dome camera.
Refer to the user manual for complete instructions on installing and
configuring this camera.
User guidelines
• Program the camera settings as much as possible before
mounting the camera. Take appropriate safety precautions while
completing programming after installation.
• Always use a 12 VDC or 24 VAC UL listed Class 2 power supply
to power the camera.
• Do not use the camera over the temperature range specifications:
- 22 to 122°F (-30 to +50°C)
• If the light source where the camera is installed experiences
rapid, wide- variations in lighting, the camera may not operate as
intended.
WARNING: To reduce the risk of fire or electronic shock, do not
expose the camera to rain or open the back of the camera.
Description

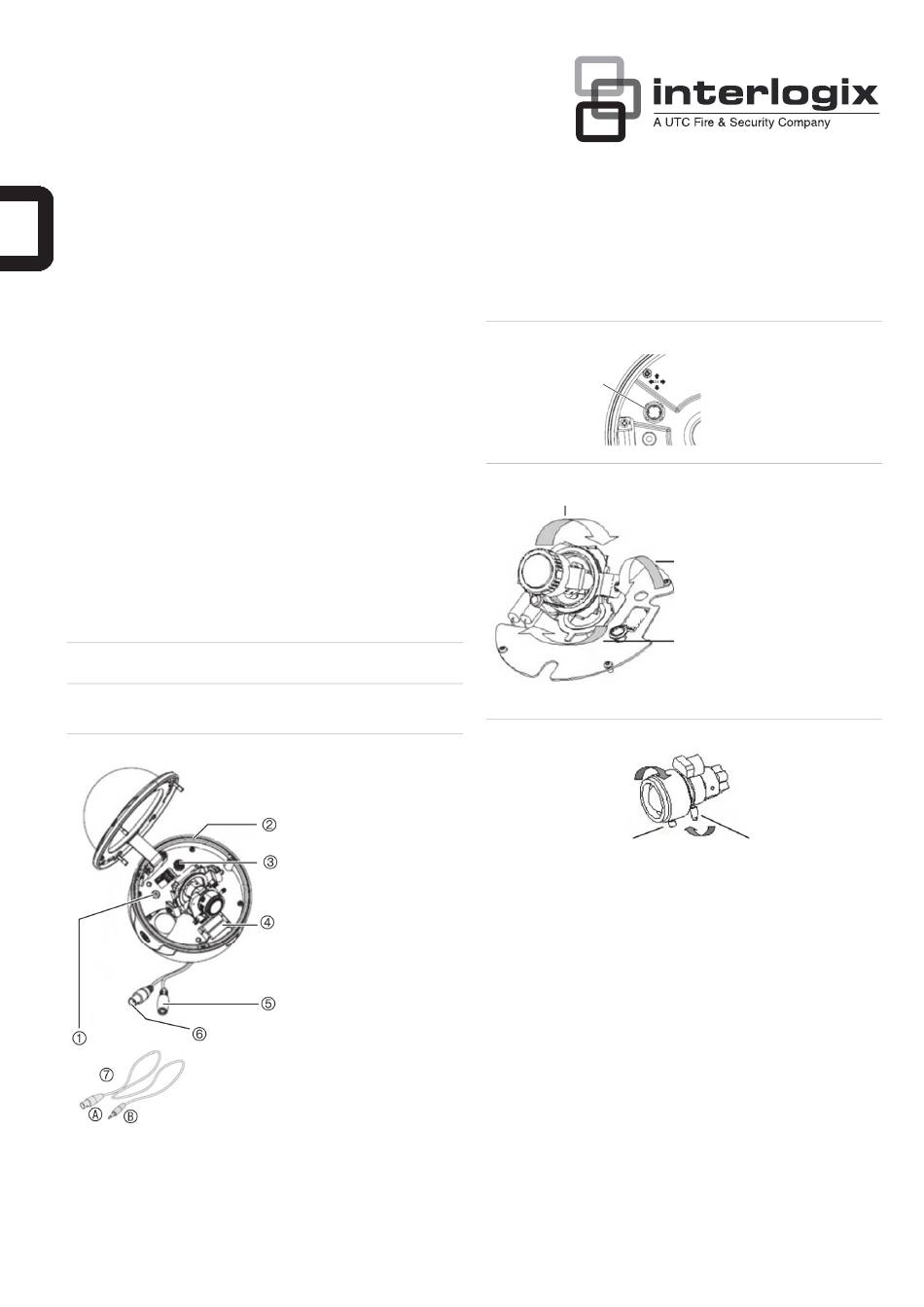

Figure 1: Camera description
© 2012 UTC Fire & Security. All rights reserved.
1. Video monitor output
2. Camera body
3. OSD control pad
4. System heater
5. Power jack
6. Video output BNC
7. Monitor output cable
used during camera
installation: A. Monitor
output BNC; B. Monitor
output RCA.
1 / 2
Figure 2: OSD control pad
OSD control pad
Figure 3: Camera adjustment
Platform horizontal adjustment
Figure 4: Zoom and focus adjustment
Zoom ring thumbscrew
Installation
Please check the package contents and make sure that the device in
the package is in good condition and all the assembly parts are
included.
Note: Before installing, please ensure that the mounting surface is
strong enough to withstand three times the weight of the camera. If the
wall is not strong enough, the camera may fall and cause serious
damage.
Install the camera
1. Mount the camera.
Use the ceiling drilling holes template and mark the holes on the
ceiling with a pen. Attach the plate with fasteners to the ceiling
and then attach the camera body to the plate. To mount the
camera, attach the camera to the mounting surface using the
appropriate fasteners
2. Connect the cables.
Platform vertical adjustment
Rotor horizontal adjustment
Focus ring thumbscrew
P/N 1072550A • ISS 18JUN12
