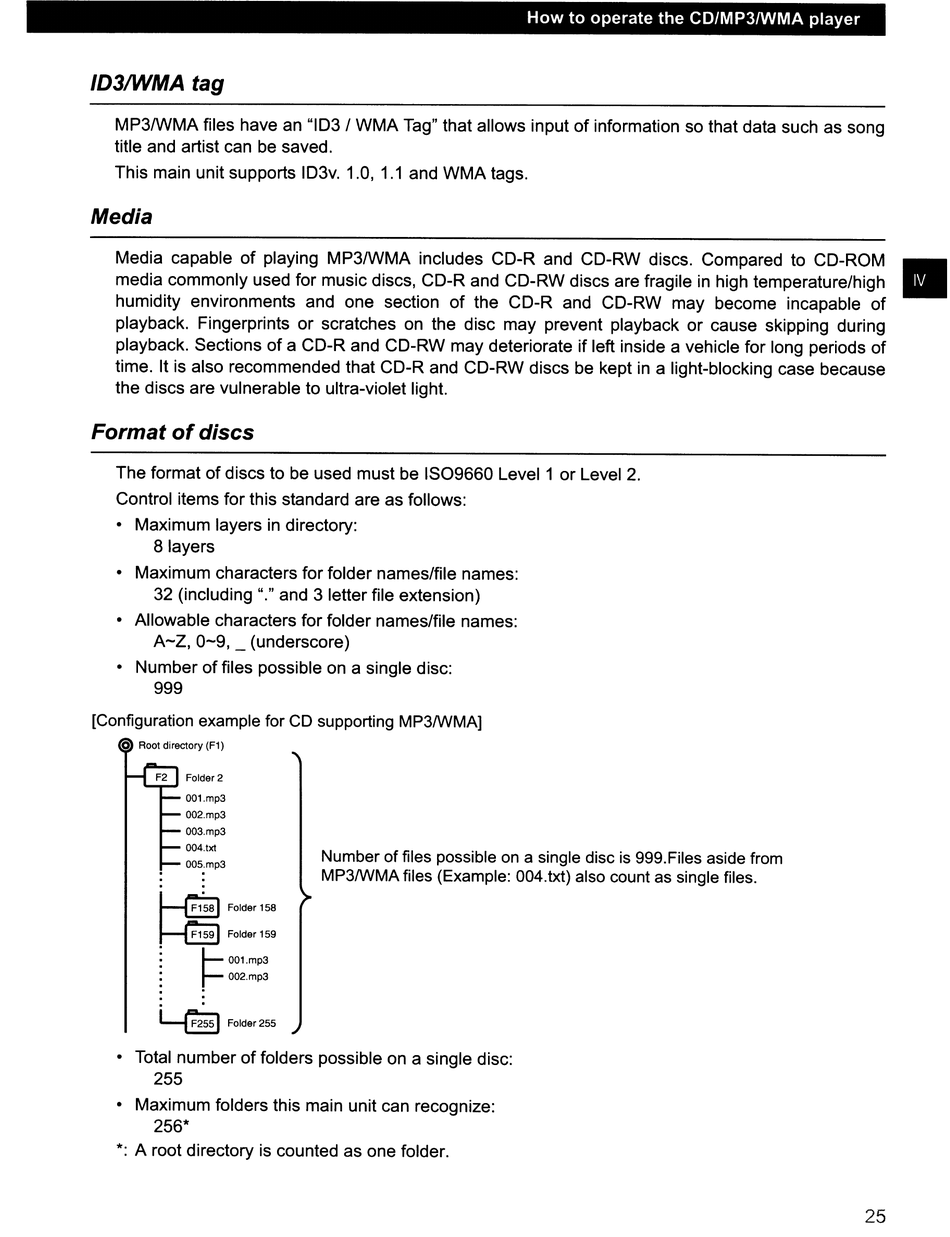

Eclipse CD3200 Handy Reference Manual page 73

How to operate the CD/MP3IWMA player
ID3/WMA tag
MP3IWMA files have an "103 / WMA Tag" that allows input of information so that data such as song
title and artist can be saved,
This main unit supports 103v. 1,0, 1.1 and WMA tags.
Media
Media capable of playing MP3IWMA includes CO-R and CO-RW discs. Compared to CD-ROM •
media commonly used for music discs, CD-R and CD-RW discs are fragile in high temperature/high
humidity environments and one section of the CD-R and CD-RW may become incapable of
playback. Fingerprints or scratches on the disc may prevent playback or cause skipping during
playback. Sections of a CD-R and CD-RW may deteriorate if left inside a vehicle for long periods of
time. It is also recommended that CD-R and CO-RW discs be kept in a light-blocking case because
the discs are vulnerable to ultra-violet light.
Format of discs
The format of discs to be used must be IS09660 Level 1 or Level 2.
Control items for this standard are as follows:
• Maximum layers in directory:
8 layers
• Maximum characters for folder names/file names:
32 (including "," and 3 letter file extension)
• Allowable characters for folder names/file names:
A-Z, 0-9, _ (underscore)
• Number of files possible on a single disc:
999
[Configuration example for CD supporting MP3IWMA]
(I
Root directory (F1)
Folder 2
001.mp3
002.mp3
003.mp3
004.1xt
005.mp3
Number of files possible on a single disc is 999.Files aside from
MP3IWMA files (Example: 004.txt) also count as single files.
~
Folder158
~
Folder159
:
~
001.mp3
t--
002.mp3
~
Folder255
• Total number of folders possible on a single disc:
255
• Maximum folders this main unit can recognize:
256*
*: A root directory is counted as one folder.
25
