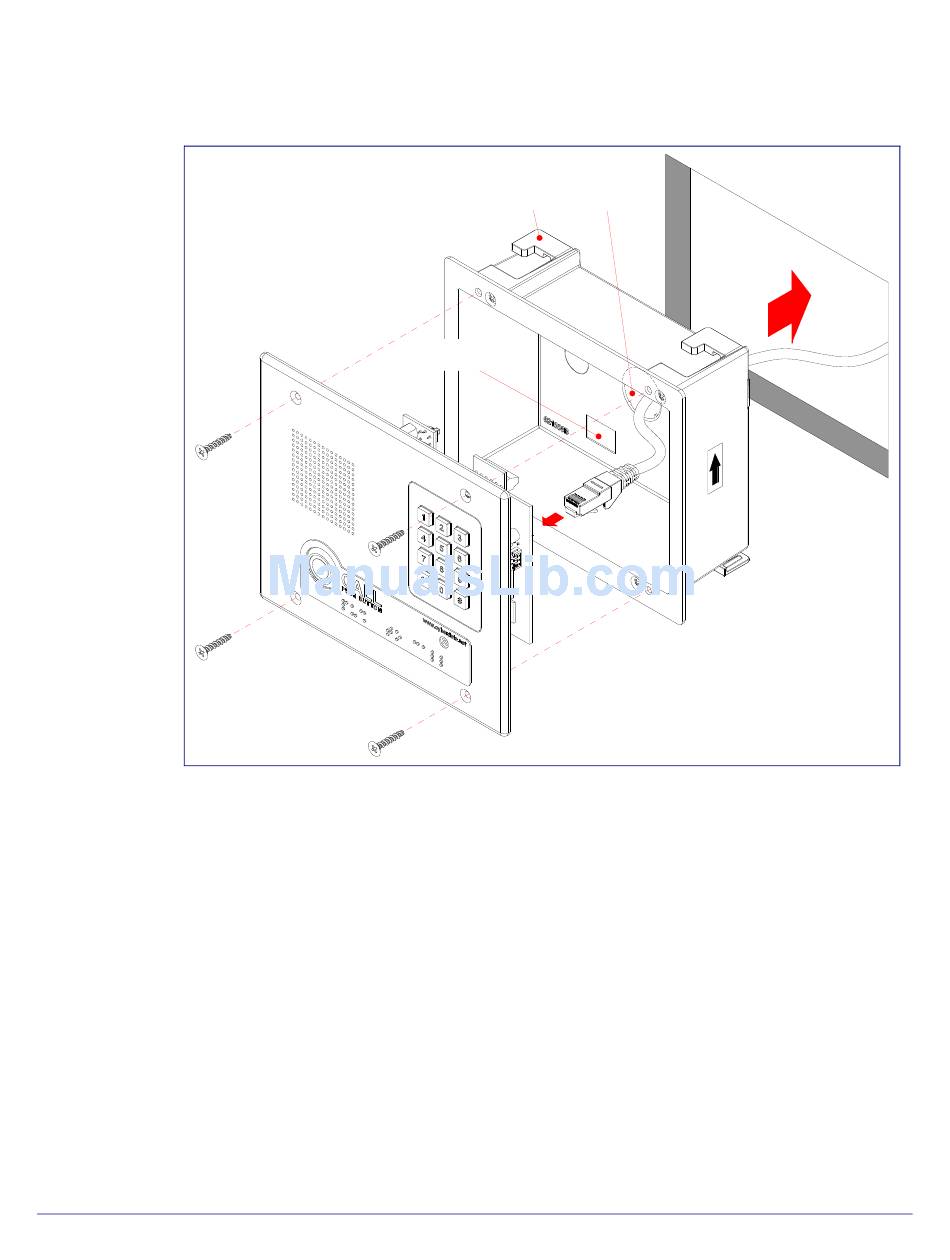

Figure A-1
Mounting
Screw (4x)
To mount the Intercom:
1. Cut out a section of the wall that is 6.03 inches [153 mm] from left to right and 5.28 inches [134
mm] from top to bottom.
2. Use a flat blade screwdriver to remove the knockout (KO) from the back of the gang box.
3. Feed the network cable from the wall cutout through the knockout of gang box and into J1 of
the Intercom.
4. Install the gang box into the wall cutout.
5. Tighten the four flag nuts with a Phillips screwdriver.
6. Place the Intercom over the gang box.
7. Secure the Intercom to the gang box with the four mounting screws.
Operations Guide
shows a wall mounting option.
Figure A-1. Wall Mounting Option
Reflective
Tape Here
930370I
Mount the VoIP Indoor Intercom with Keypad (Flush-Mounted)
KO
Flagnut (4x)
to J1
VoIP Indoor Intercom
with Keypad Assembly
Wall Cutout
Network
Cable
Gang Box
