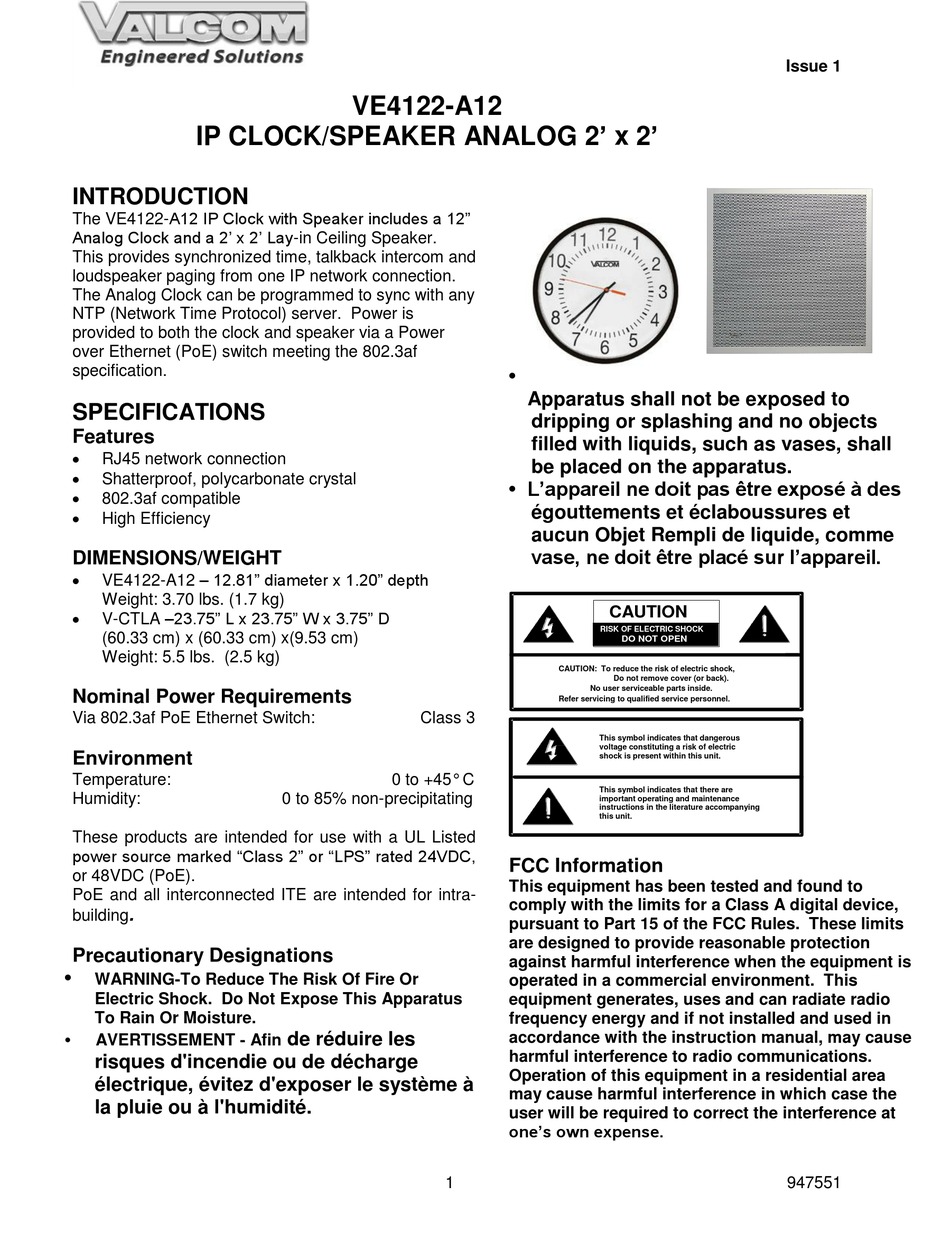

Valcom VE4122-A12 Manual

IP CLOCK/SPEAKER ANALOG 2' x 2'
INTRODUCTION

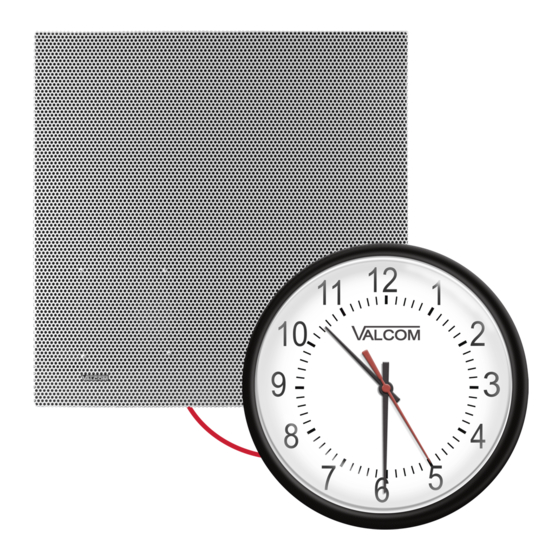

The VE4122-A12 IP Clock with Speaker includes a 12"
Analog Clock and a 2' x 2' Lay-in Ceiling Speaker.
This provides synchronized time, talkback intercom and
loudspeaker paging from one IP network connection.
The Analog Clock can be programmed to sync with any
NTP (Network Time Protocol) server. Power is
provided to both the clock and speaker via a Power
over Ethernet (PoE) switch meeting the 802.3af
specification.
SPECIFICATIONS
Features

RJ45 network connection

Shatterproof, polycarbonate crystal

802.3af compatible

High Efficiency
DIMENSIONS/WEIGHT

VE4122-A12 – 12.81" diameter x 1.20" depth
Weight: 3.70 lbs. (1.7 kg)

V-CTLA –23.75" L x 23.75" W x 3.75" D
(60.33 cm) x (60.33 cm) x(9.53 cm)
Weight: 5.5 lbs. (2.5 kg)
Nominal Power Requirements
Via 802.3af PoE Ethernet Switch:
Environment
Temperature:
Humidity:
These products are intended for use with a UL Listed
power source marked "Class 2" or "LPS" rated 24VDC,
or 48VDC (PoE).
PoE and all interconnected ITE are intended for intra-
.
building
Precautionary Designations
•
WARNING-To Reduce The Risk Of Fire Or
Electric Shock. Do Not Expose This Apparatus
To Rain Or Moisture.
•
AVERTISSEMENT - Afin
risques d'incendie ou de décharge
électrique, évitez d'exposer le système à
la pluie ou à l'humidité.
VE4122-A12
Class 3
0 to +45° C
0 to 85% non-precipitating
de réduire les
1
•
Apparatus shall not be exposed to
dripping or splashing and no objects
filled with liquids, such as vases, shall
be placed on the apparatus.
• L'appareil ne doit pas être exposé à des
égouttements et éclaboussures et
aucun Objet Rempli de liquide, comme
vase, ne doit être placé sur l'appareil.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: To reduce the risk of electric shock,
Do not remove cover (or back).
No user serviceable parts inside.
Refer servicing to qualified service personnel.
This symbol indicates that dangerous
voltage constituting a risk of electric
shock is present within this unit.
This symbol indicates that there are
important operating and maintenance
instructions in the literature accompanying
this unit.
FCC Information
This equipment has been tested and found to
comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference when the equipment is
operated in a commercial environment. This
equipment generates, uses and can radiate radio
frequency energy and if not installed and used in
accordance with the instruction manual, may cause
harmful interference to radio communications.
Operation of this equipment in a residential area
may cause harmful interference in which case the
user will be required to correct the interference at
one's own expense.
Issue 1
947551
