INTRODUCTION

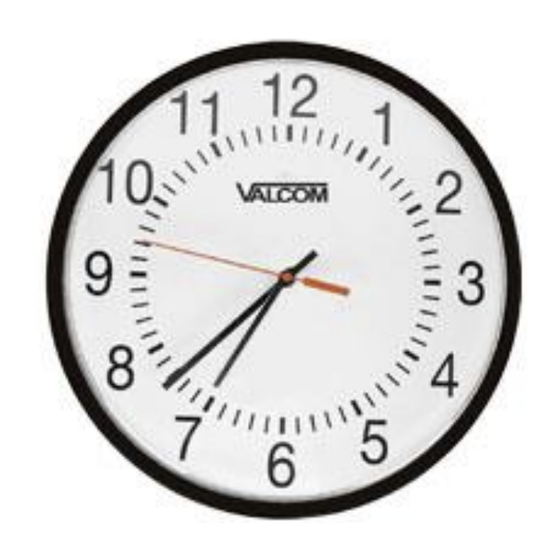

The VEA12A IP PoE 12 inch Round Analog and
VEA16A IP PoE 16 inch Round Analog Clocks enable
time indication, synchronization, and correction over an
IP-based LAN/WAN. This allows locating a clock
display anywhere on the network. Clock
synchronization can be programmed to sync with any
NTP (Network Time Protocol) server. The enclosure is
made of steel with a durable powder coated finish. The
color of the enclosure can easily be changed to match
any décor. Power is provided to the VEA12A and
VEA16A via a Power over Ethernet (PoE) switch
meeting the 802.3af specification.
SPECIFICATIONS
Features

RJ-45 network connection

Low-profile/semi-flush smooth surface metal case

Shatterproof, polycarbonate crystal

802.3af compatible

High Efficiency
Precautionary Designations
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: To reduce the risk of electric shock,
Do not remove cover.
No user serviceable parts inside.
Refer servicing to qualified service personnel.
This symbol indicates that dangerous
voltage constituting a risk of electric
shock is present within this unit.
This symbol indicates that there are
important operating and maintenance
instructions in the literature accompanying
this unit.
VEA12A, 12" ROUND
VEA16A, 16" ROUND
IP PoE ANALOG CLOCKS
DIMENSIONS/WEIGHT

VEA12A – 12.81" diameter x 1.20" depth
Weight: 3.70 LBS

VEA16A – 16.81" diameter x 1.60" depth
Weight: 5.35 LBS
Nominal Power Requirements
4.5W via 802.3af PoE
Environment
Temperature:
Humidity:
PSE (Power Sourcing Equipment) to be compliant
to IEEE 802.3af
INSTALLATION
FCC Information
This equipment has been tested and found to
comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference when the equipment is
operated in a commercial environment. This
equipment generates, uses and can radiate radio
frequency energy and if not installed and used in
accordance with the instruction manual, may cause
harmful interference to radio communications.
Operation of this equipment in a residential area
may cause harmful interference in which case the
user will be required to correct the interference at
one's own expense.
1
Issue 5
0 to +45° C
0 to 85% non-precipitating
