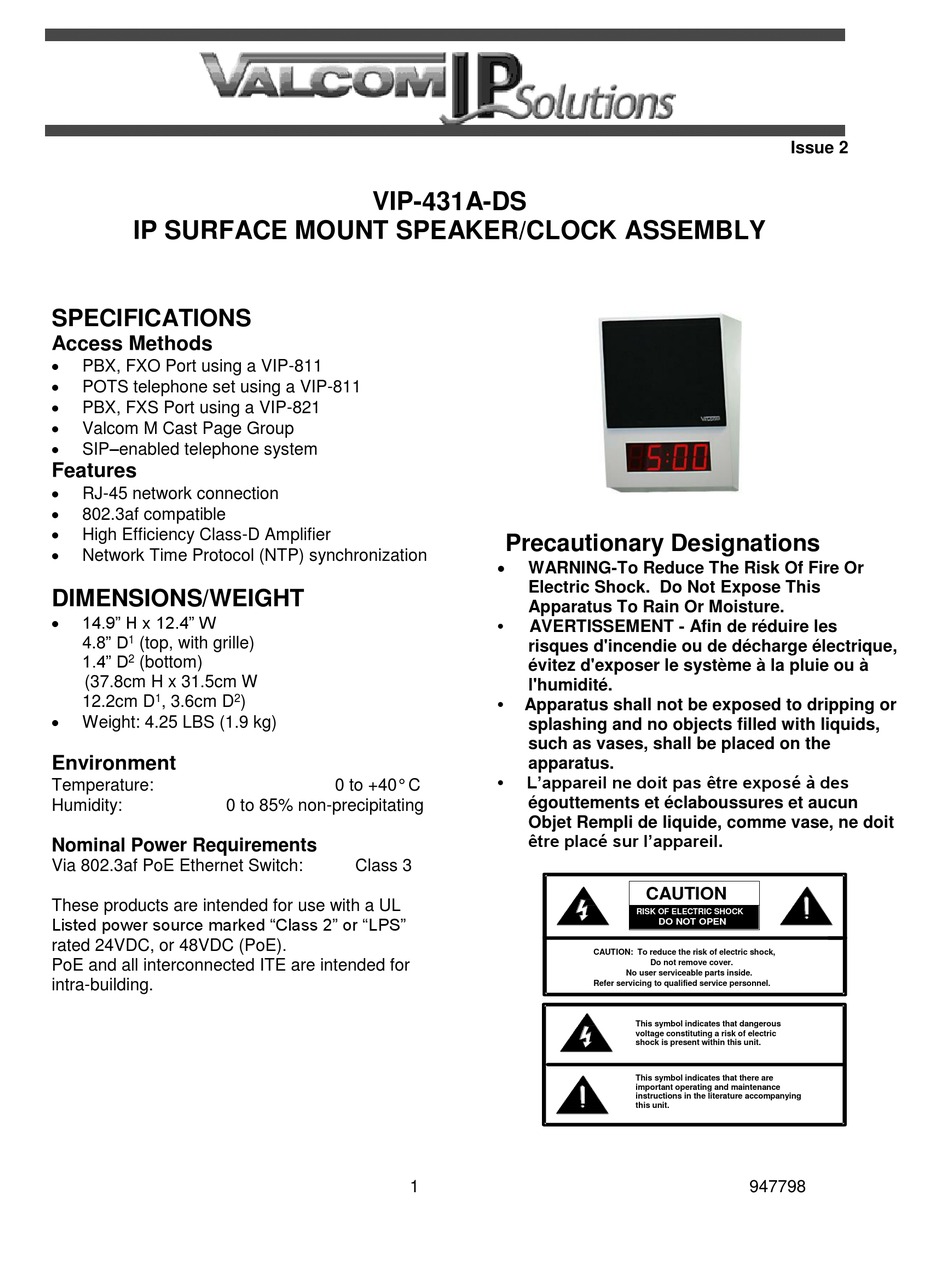

Valcom VIP-431A-DS Manual

IP SURFACE MOUNT SPEAKER/CLOCK ASSEMBLY
SPECIFICATIONS
Access Methods

PBX, FXO Port using a VIP-811

POTS telephone set using a VIP-811

PBX, FXS Port using a VIP-821

Valcom M Cast Page Group

SIP–enabled telephone system
Features

RJ-45 network connection

802.3af compatible

High Efficiency Class-D Amplifier

Network Time Protocol (NTP) synchronization
DIMENSIONS/WEIGHT

14.9" H x 12.4" W
4.8" D
1
(top, with grille)
1.4" D
2
(bottom)
(37.8cm H x 31.5cm W
1
12.2cm D , 3.6cm D

Weight: 4.25 LBS (1.9 kg)
Environment
Temperature:
Humidity:
Nominal Power Requirements
Via 802.3af PoE Ethernet Switch:
These products are intended for use with a UL
Listed power source marked "Class 2" or "LPS"
rated 24VDC, or 48VDC (PoE).
PoE and all interconnected ITE are intended for
intra-building.
VIP-431A-DS
2
)
0 to +40° C
0 to 85% non-precipitating
Class 3
Precautionary Designations

WARNING-To Reduce The Risk Of Fire Or
Electric Shock. Do Not Expose This
Apparatus To Rain Or Moisture.
•
AVERTISSEMENT - Afin de réduire les
risques d'incendie ou de décharge électrique,
évitez d'exposer le système à la pluie ou à
l'humidité.
•
Apparatus shall not be exposed to dripping or
splashing and no objects filled with liquids,
such as vases, shall be placed on the
apparatus.
• L'appareil ne doit pas être exposé à des
égouttements et éclaboussures et aucun
Objet Rempli de liquide, comme vase, ne doit
être placé sur l'appareil.
1
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: To reduce the risk of electric shock,
Do not remove cover.
No user serviceable parts inside.
Refer servicing to qualified service personnel.
This symbol indicates that dangerous
voltage constituting a risk of electric
shock is present within this unit.
This symbol indicates that there are
important operating and maintenance
instructions in the literature accompanying
this unit.
947798
Issue 2
