CFETF10xx-110
Installation
CAUTION: Wear a grounding device and observe electrostatic discharge precautions
when setting the 4-position switch and the jumper and when installing the slide-in-
module media converter. Failure to observe this caution could result in damage to, and
subsequent failure of, the media converter.

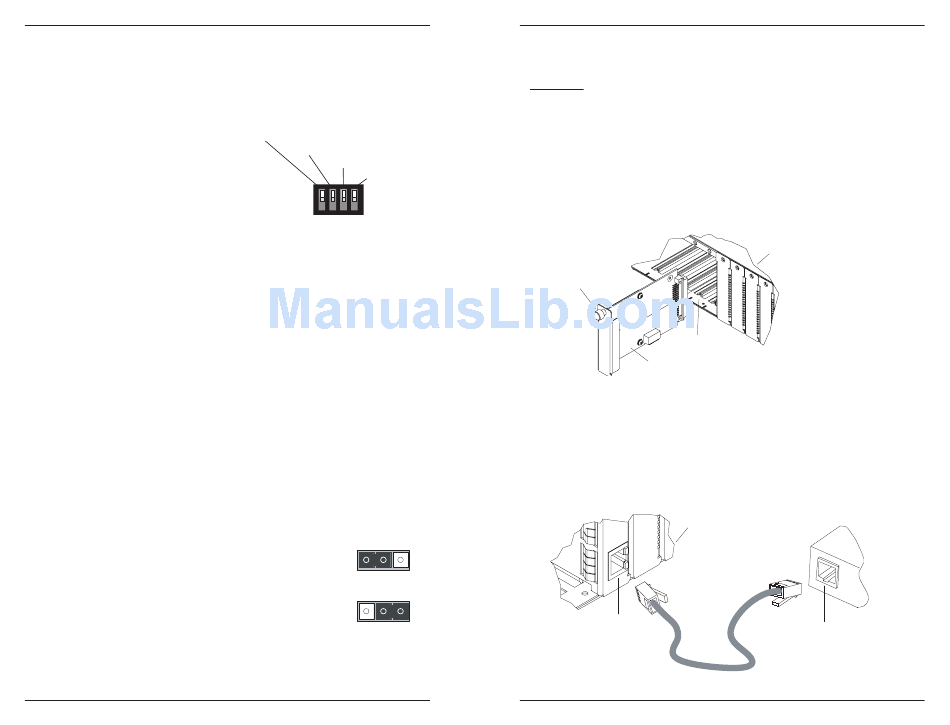

Set the 4-Position Switch
•
The 4-position switch is located on
the circuit board.
•
Use a small flat-blade screwdriver or
a similar device to set the recessed
switches (see the drawing to the
right).
1.
Auto-Negotiation™
up
Advertises 100 Mb/s full-duplex and half-duplex (only during Auto-
Negotiation). (See page 5.)
down
Disable Auto-Negotiation.
2.
Link Pass-Through
up
Enable Link Pass-Through. (See page 6.)
down
Disable Link Pass-Through.
3.
AutoCross™
up
Enable AutoCross™ - The media converter connects automatically to
either straight-through or crossover twisted-pair copper cable. (See
page 5.)
down
Disable AutoCross™ - Either straight-through or crossover twisted-pair
copper cable must be installed, according to the site requirements.
4.
(not used)
Set the Hardware/Software Jumper
The hardware/software jumper is located on the media converter circuit board. Use
small needle-nosed pliers or a similar device to set the jumper. Refer to the
drawings below when setting the media converter for hardware or software mode.
Hardware
The media converter mode is determined by the
4-position switch settings listed above.
Software
The media converter mode is determined by the
most-recently saved, on-board microprocessor
settings.
2
24-Hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600
Auto-Negotiation (up=Enable)
Link Pass-Through (up=Enable)
AutoCross (up=Enable)
Not Used
1 2 3 4
H
S
Hardware Mode
H
S
Software Mode
Installation
-- Continued
Install the Slide-In-Module
CAUTION: Wear a grounding device and observe electrostatic discharge precautions
when installing the CFETF10xx-110 slide-in-module media converter. Failure to
observe this caution could result in damage to, and subsequent failure of, the media
converter.
1.
Carefully slide the slide-in-module into the installation slot, aligning the
module with the installation guides.
2.
Ensure that the module is firmly seated inside the chassis.
3.
Push in and rotate the attached panel fastener screw clockwise to secure the
module to the chassis front.
Panel Fastener
Slot
Media Converter
Connect the Twisted-Pair Copper Cable
1.
Locate or build 100Base-TX compliant cables, with male RJ-45 connectors
installed at both ends.
2.
Connect the RJ-45 connector at one end of the cable to the RJ-45 port on the
CFETF10xx-110 media converter.
3.
Connect the RJ-45 connector at the other end of the cable to the RJ-45 port on
the other device (switch, workstation, etc.).
Point System Chassis
RJ-45 Port
Media Converter
techsupport@transition.com -- Click the "Transition Now" link for a live Web chat.
Point System Chassis
RJ-45 Port
On other device
(workstation, switch, etc.)
3
