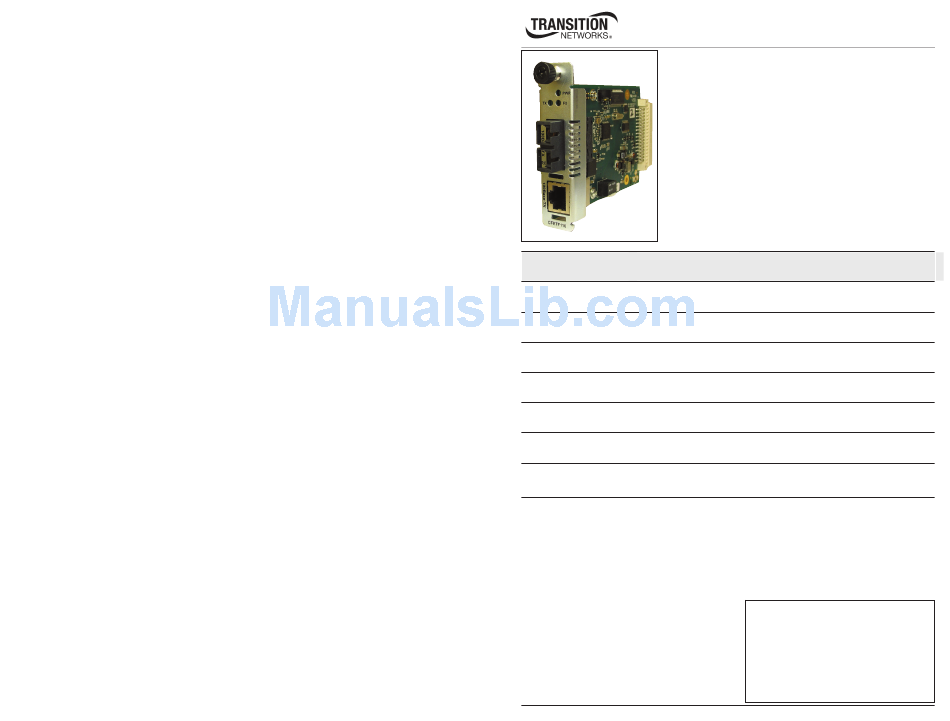

User's Guide
CFETF10xx-110
Slide-in-Module Media Converter
• Fast Ethernet™
• Copper to Fiber
• 100Base-TX to 100Base-FX

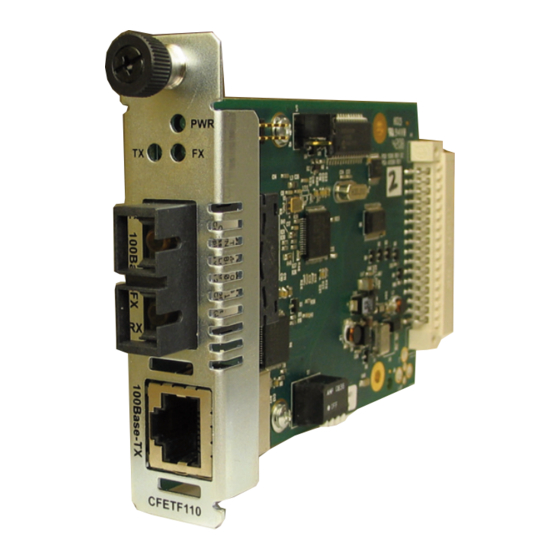

Transition Networks CFETF10xx-110 series Fast
Ethernet™ 100Base-TX to 100Base-FX media
converters (designed to be installed in a PointSystem™
chassis) connect 100Base-TX twisted-pair copper cable
to multimode or single mode 100Base-FX fiber-optic
cable.
Part Number
Port One - Copper
100Base-TX
CFETF1011-110
RJ-45
100 m (328 ft)*
CFETF1013-110
RJ-45
100 m (328 ft)*
CFETF1014-110
RJ-45
100 m (328 ft)*
CFETF1015-110
RJ-45
100 m (328 ft)*
RJ-45
CFETF1016-110
100 m (328 ft)*
CFETF1017-110
RJ-45
100 m (328 ft)*
CFETF1040-110** RJ-45
100 m (328 ft)*
*Typical maximum cable distance. Actual distance is dependent upon the physical
characteristics of the network installation.
**CFETF1040-110 supports 100Base-FX Modules only.
Port Two - Fiber-Optic
100Base-FX
ST, 1310 nm multimode
2 km (1.2 miles)*
SC, 1310 nm multimode
2 km (1.2 miles)*
SC, 1310 nm single mode
20 km (12.4 miles)*
SC, 1310 nm single mode
50 km (24.9 miles)*
SC, 1310 nm single mode
60 km (32.3 miles)*
SC, 1550 nm single mode
80 km (49.7 miles)*
Empty SFP Slot
Installation . . . . . . . . . . . . . . . . . . . . .2
Operation . . . . . . . . . . . . . . . . . . . . .5
Cable Specifications . . . . . . . . . . . . . .7
Technical Specifications . . . . . . . . . . .9
Troubleshooting . . . . . . . . . . . . . . .10
Contact Us . . . . . . . . . . . . . . . . . . .11
Compliance Information . . . . . . . . .12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CFETF1011-110 and is the answer not in the manual?

Questions and answers

Related Manuals for Transition Networks CFETF1011-110

Summary of Contents for Transition Networks CFETF1011-110

  • Page 1 Slide-in-Module Media Converter • Fast Ethernet™ • Copper to Fiber • 100Base-TX to 100Base-FX Transition Networks CFETF10xx-110 series Fast Ethernet™ 100Base-TX to 100Base-FX media converters (designed to be installed in a PointSystem™ chassis) connect 100Base-TX twisted-pair copper cable to multimode or single mode 100Base-FX fiber-optic cable.

  • Page 2: Installation

    CFETF10xx-110 Installation Installation -- Continued CAUTION: Wear a grounding device and observe electrostatic discharge precautions Install the Slide-In-Module when setting the 4-position switch and the jumper and when installing the slide-in- CAUTION: Wear a grounding device and observe electrostatic discharge precautions module media converter.

  • Page 3: Operation

    The media converter broadcasts its speed (100 Mb/s) and duplex capabilities The slide-in-module media converter is powered through the Transition Networks (full or half) to the other devices and negotiates the best mode of operation. Auto- PointSystem™...

  • Page 4: Cable Specifications

    -- Continued SNMP Link Pass-Through See the on-line documentation that comes with Transition Networks FocalPoint™ When the Link Pass-Through feature is activated (see page 2), the media converter software for applicable commands and usage. monitors both the fiber and copper RX (receive) ports for loss of signal. In the event...

  • Page 5: Technical Specifications

    Fiber-optic Receiver Sensitivity: min: -34.0 dBm max: -7.0 dBm Link Budget: 29.0 dB Transition Networks PointSystem™ chassis in which this slide-in-module will be installed. CFETF1017-110 1550 nm single mode **MTBF is estimated using the predictability method. This method is based on MIL- Fiber-optic Transmitter Power: min: -5.0 dBm...

  • Page 6: Troubleshooting

    Is the media converter slide-in-module installed properly in the chassis? Transition Now • Is the power cord properly installed in the chassis and at the external Chat live via the Web with Transition Networks Technical Support. power source? Log onto www.transition.com and click the Transition Now link. •...

  • Page 7: Compliance Information

    In accordance with European Union Directive 2002/96/EC of the European Parliament and of the Council of 27 January 2003, Transition Networks will accept post usage returns of this product for proper disposal. The contact information for this activity can be found in the 'Contact Us' portion of this document.
