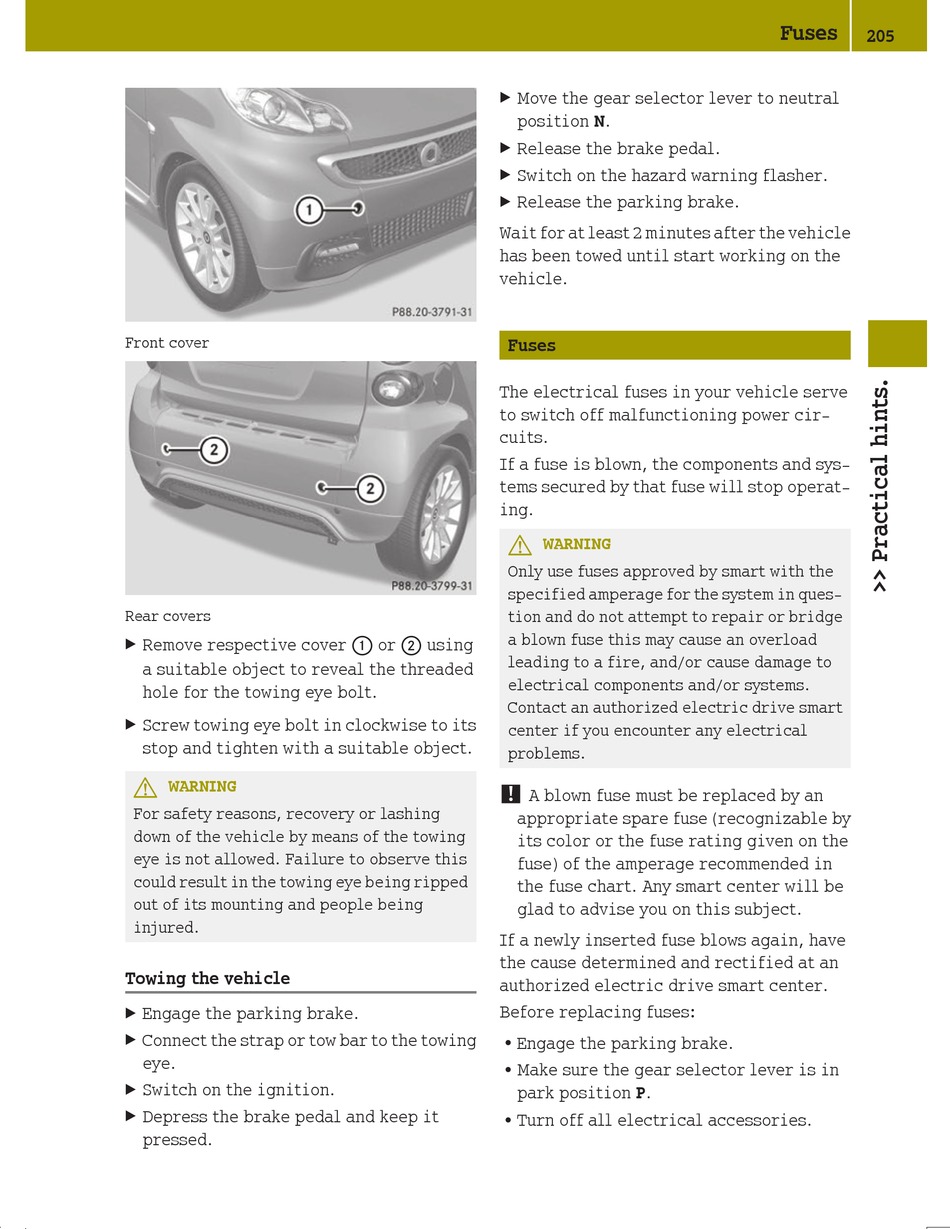

Front cover
Rear covers
Remove respective cover : or ; using
X
a suitable object to reveal the threaded
hole for the towing eye bolt.
Screw towing eye bolt in clockwise to its
X
stop and tighten with a suitable object.
G WARNING
For safety reasons, recovery or lashing
down of the vehicle by means of the towing
eye is not allowed. Failure to observe this
could result in the towing eye being ripped
out of its mounting and people being
injured.
Towing the vehicle
Engage the parking brake.
X
Connect the strap or tow bar to the towing
X
eye.
Switch on the ignition.
X
Depress the brake pedal and keep it
X
pressed.
Move the gear selector lever to neutral
X
position N.
Release the brake pedal.
X
Switch on the hazard warning flasher.
X
Release the parking brake.
X
Wait for at least 2 minutes after the vehicle
has been towed until start working on the
vehicle.

Fuses

The electrical fuses in your vehicle serve
to switch off malfunctioning power cir-
cuits.
If a fuse is blown, the components and sys-
tems secured by that fuse will stop operat-
ing.
G WARNING
Only use fuses approved by smart with the
specified amperage for the system in ques-
tion and do not attempt to repair or bridge
a blown fuse this may cause an overload
leading to a fire, and/or cause damage to
electrical components and/or systems.
Contact an authorized electric drive smart
center if you encounter any electrical
problems.
! A blown fuse must be replaced by an
appropriate spare fuse (recognizable by
its color or the fuse rating given on the
fuse) of the amperage recommended in
the fuse chart. Any smart center will be
glad to advise you on this subject.
If a newly inserted fuse blows again, have
the cause determined and rectified at an
authorized electric drive smart center.
Before replacing fuses:
Engage the parking brake.
R
Make sure the gear selector lever is in
R
park position P.
Turn off all electrical accessories.
R
Fuses
205
