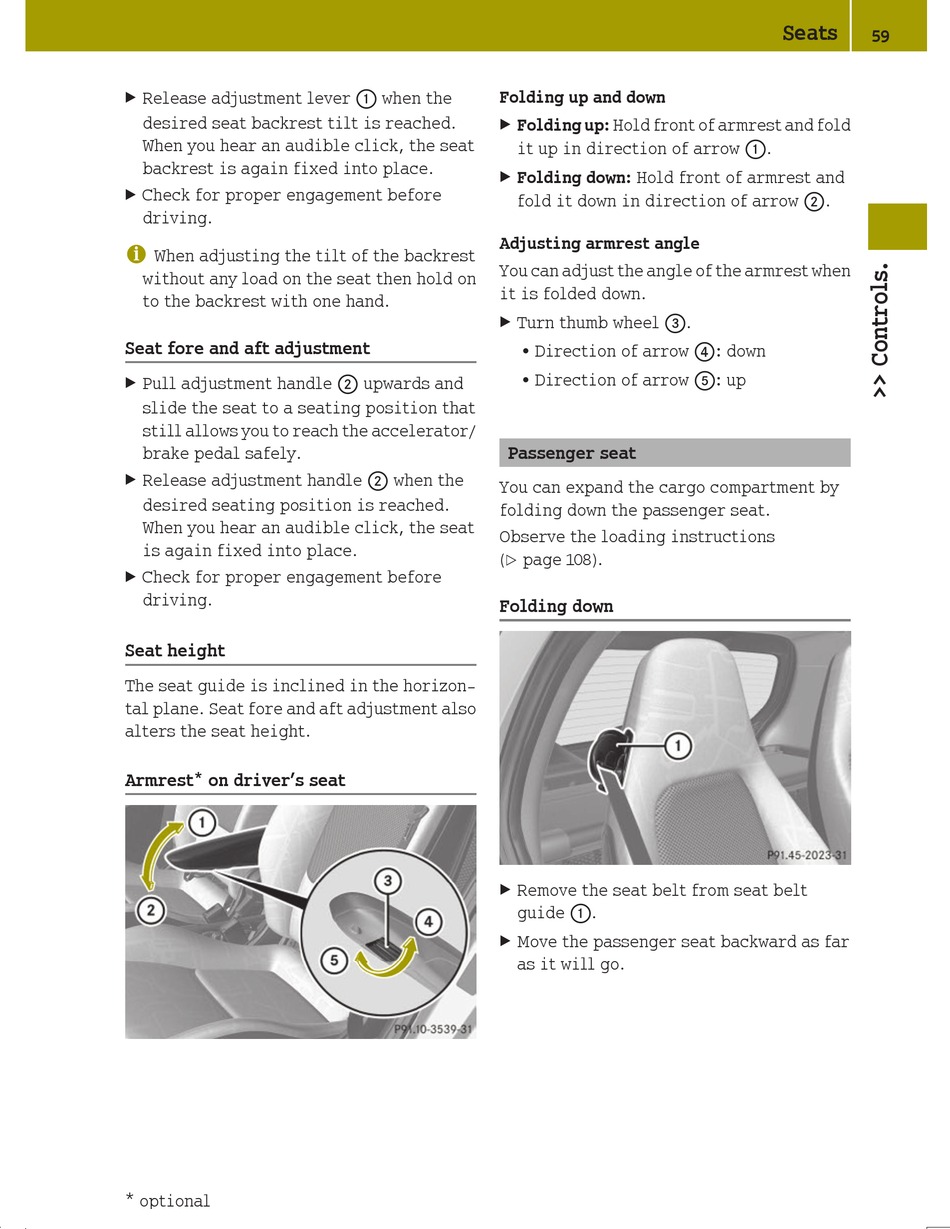

Release adjustment lever : when the
X
desired seat backrest tilt is reached.
When you hear an audible click, the seat
backrest is again fixed into place.
Check for proper engagement before
X
driving.
i
When adjusting the tilt of the backrest
without any load on the seat then hold on
to the backrest with one hand.
Seat fore and aft adjustment
Pull adjustment handle ; upwards and
X
slide the seat to a seating position that
still allows you to reach the accelerator/
brake pedal safely.
Release adjustment handle ; when the
X
desired seating position is reached.
When you hear an audible click, the seat
is again fixed into place.
Check for proper engagement before
X
driving.
Seat height
The seat guide is inclined in the horizon-
tal plane. Seat fore and aft adjustment also
alters the seat height.
Armrest* on driver's seat
* optional
Folding up and down
Folding up: Hold front of armrest and fold
X
it up in direction of arrow :.
Folding down: Hold front of armrest and
X
fold it down in direction of arrow ;.
Adjusting armrest angle
You can adjust the angle of the armrest when
it is folded down.
Turn thumb wheel =.
X
Direction of arrow ?: down
R
Direction of arrow A: up
R

Passenger seat

You can expand the cargo compartment by
folding down the passenger seat.
Observe the loading instructions
( page 108).
Y
Folding down
Remove the seat belt from seat belt
X
guide :.
Move the passenger seat backward as far
X
as it will go.

Seats

59
